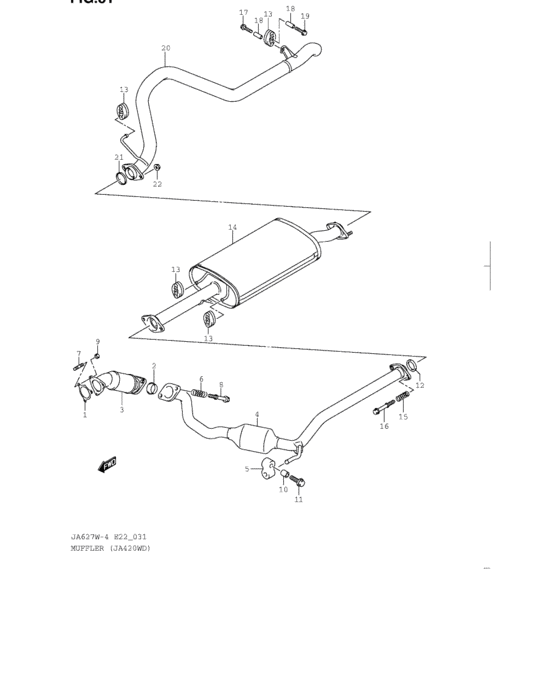

Muffler (JA420WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-68DB0-000 GASKET,EXH PIPE |
14181-68DB0-000 |
US $6.51 |
||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14183-65D10-000 SEAL RING,MUFFLERJSAHTX83V00304870~,JS3TX83V 64300001~ |
14183-65D10-000 |
US $21.53 |
||
|
3
|
3
14190-68DB0-000 PIPE,TURBO OUTLET |
14190-68DB0-000 |
US $1,020.80 |
||
|
4
|
4
14250-68DB0-000
PIPE,EXH NO.2
|
14250-68DB0-000 |
— | ||
|
5
|
5
14281-52D00-000 MOUNTING,MUF |
14281-52D00-000 |
US $13.14 |
||
|
6
|
6
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
7
|
7
09108-08139-000 BOLT,STUD |
09108-08139-000 |
from US $11.50 |
||
|
8
|
8
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
9
|
9
09140-08023-000
Nut (ll/x)
|
09140-08023-000 |
— | ||
| replacement | |||||
|
9
|
9
09140-08023-XC0 NUT |
09140-08023-XC0 |
from US $1.93 |
||
|
10
|
10
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
10
|
10
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
11
|
11
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
11
|
11
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
12
|
12
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
13
|
13
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
14
|
14
14300-52DA0-000 MUFFLER |
14300-52DA0-000 |
US $429.44 |
||
|
15
|
15
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
16
|
16
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
17
|
17
09139-08019-000 SCREW(8X35) |
09139-08019-000 |
US $23.60 |
||
|
18
|
18
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
19
|
19
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
19
|
19
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
14630-52D11-000
Pipe, muf tail
|
14630-52D11-000 |
— | ||
| replacement | |||||
|
20
|
20
14630-52D21-000 PIPE,TAIL |
14630-52D21-000 |
US $200.56 |
||
|
21
|
21
14184-67D00-000 GASKET,MUFFLER |
14184-67D00-000 |
from US $6.55 |
||
|
22
|
22
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
22
|
22
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
