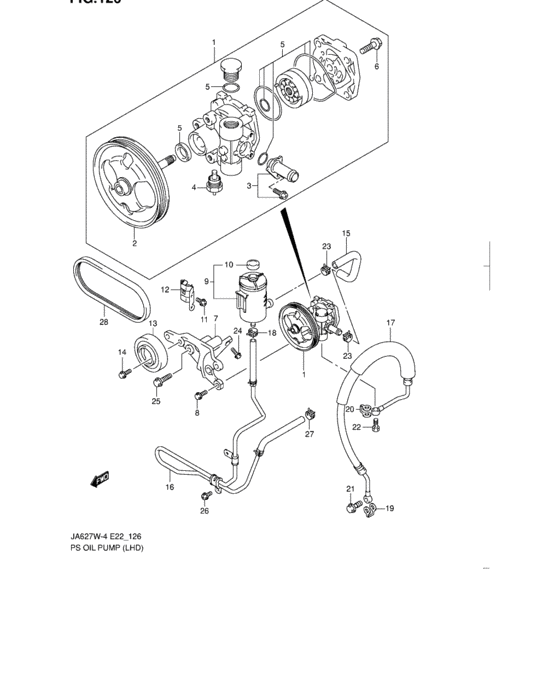

Ps oil pump (JA627W:LHD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-52D00-000 PUMP ASSY,POWER STEERING |
49100-52D00-000 |
US $880 |
||
|
2
|
2
49111-65D30-000 PULLEY SET |
49111-65D30-000 |
US $140.58 |
||
|
3
|
3
49112-65D30-000 CONNECTOR SET |
49112-65D30-000 |
US $42.32 |
||
|
4
|
4
49113-65D00-000 TERMINAL SET |
49113-65D00-000 |
US $40.80 |
||
|
5
|
5
49114-56B30-000 SEAL SET |
49114-56B30-000 |
from US $34.96 |
||
|
6
|
6
49115-56B30-000 BOLT SET |
49115-56B30-000 |
US $10.56 |
||
|
7
|
7
49120-65D30-000 BRACKET,POWER STRG PUMP |
49120-65D30-000 |
US $110.03 |
||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
49140-54J00-000
Tank assy,power steering oil
|
49140-54J00-000 |
— | ||
| replacement | |||||
|
9
|
9
49140-54J01-000 TANK ASSY,POWER STRG OIL |
49140-54J01-000 |
from US $59.45 |
||
|
10
|
10
49142-65D00-000 CAP,PS OIL TANK |
49142-65D00-000 |
from US $5.02 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
12
|
12
49150-52D00-000
BRACKET,PS RESERVE TANK
|
49150-52D00-000 |
— | ||
|
13
|
13
49160-77E01-000 PULLEY,BELT TENSION |
49160-77E01-000 |
from US $184.28 |
||
|
14
|
14
09103-08071-000 BOLT(8X36) |
09103-08071-000 |
from US $2.40 |
||
|
15
|
15
49214-54J00-000 HOSE,SUCTION |
49214-54J00-000 |
from US $30.26 |
||
|
16
|
16
49220-54J50-000 HOSE ASSY,RETURN |
49220-54J50-000 |
US $104.88 |
||
|
17
|
17
49230-52D51-000 HOSE,PRESSURE |
49230-52D51-000 |
US $211.60 |
||
|
18
|
18
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
19
|
19
49211-65J00-000 GASKET,GEAR BOX |
49211-65J00-000 |
from US $6.95 |
||
|
20
|
20
49211-63G03-000 GASKET,PRESSURE PIPE |
49211-63G03-000 |
US $4.96 |
||
|
21
|
21
49237-65J00-000 BOLT,UNION GEAR BOX |
49237-65J00-000 |
from US $6.77 |
||
|
22
|
22
09360-16003-000 UNION |
09360-16003-000 |
from US $5.94 |
||
|
23
|
23
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $5.56 |
||
|
24
|
24
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
24
|
24
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
25
|
25
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
25
|
25
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
|
26
|
26
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
27
|
27
49225-65D10-000 CLAMP,RETURN GEAR SIDE |
49225-65D10-000 |
US $2.98 |
||
|
28
|
28
49181-77E00-000 BELT,POWER STEERING 4PK1020N/AIR CON |
49181-77E00-000 |
US $44.53 |
||
