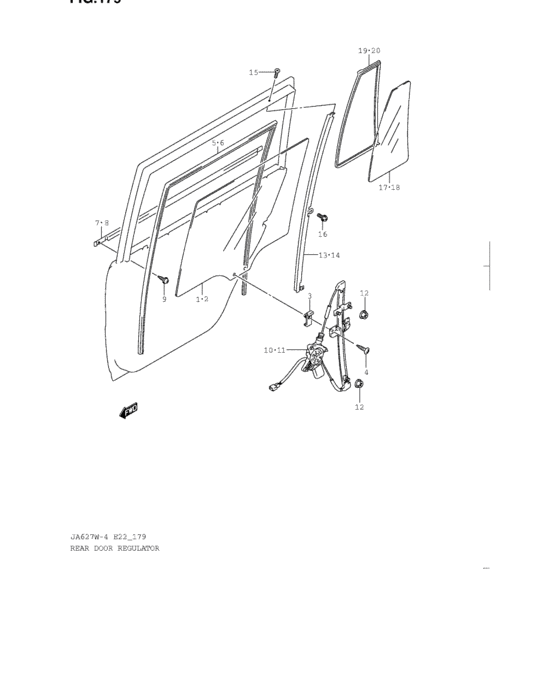

Rear door regulator (REAR DOOR REGULATOR) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84541-52D01-000 GLASS,RR DR WINDOW,R |
84541-52D01-000 |
US $153.82 |
||
|
1
|
1
84541-52D10-000
Glass,rear door window,r
|
84541-52D10-000 |
— | ||
|
1
|
1
84541-52D21-000 GLASS,RR DR WINDOW,R |
84541-52D21-000 |
US $209.76 |
||
|
2
|
2
84546-52D01-000 GLASS,RR DR WINDOW,L |
84546-52D01-000 |
US $153.82 |
||
|
2
|
2
84546-52D10-000
Glass,rear door window,l
|
84546-52D10-000 |
— | ||
|
2
|
2
84546-52D21-000 GLASS,RR DR WINDOW,L |
84546-52D21-000 |
US $209.76 |
||
|
3
|
3
83611-65D00-000 HOLDER,SIDE DOOR GLASS |
83611-65D00-000 |
US $2.08 |
||
|
4
|
4
03241-06203-000
スクリュ
|
03241-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0620A-000 SCREW |
03241-0620A-000 |
US $0.80 |
||
|
5
|
5
83671-52D00-000 RUN,RR DOOR GLASS,R |
83671-52D00-000 |
US $64.77 |
||
|
6
|
6
83672-52D00-000 RUN,RR DOOR GLASS,L |
83672-52D00-000 |
US $64.77 |
||
|
7
|
7
83830-52D00-000 WEATHERSTRIP,RR DR OUT,R |
83830-52D00-000 |
US $113.60 |
||
|
8
|
8
83840-52D00-000 WEATHERSTRIP,RR DR OUT,L |
83840-52D00-000 |
US $76.18 |
||
|
9
|
9
09136-05059-000 SCREW(5X12) |
09136-05059-000 |
US $15.50 |
||
|
10
|
10
83501-65D10-000 REGULATOR ASSY,RR WINDOW,R |
83501-65D10-000 |
US $393.76 |
||
|
11
|
11
83502-65D10-000 REGULATOR ASSY,RR WINDOW,L |
83502-65D10-000 |
US $393.76 |
||
|
12
|
12
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
12
|
12
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
|
13
|
13
81770-52D00-000 SASH,RR DOOR CENTER,R |
81770-52D00-000 |
US $34.96 |
||
|
14
|
14
81780-52D00-000 SASH,RR DOOR CENTER,L |
81780-52D00-000 |
US $34.96 |
||
|
15
|
15
02122-04103-000
Screw
|
02122-04103-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-0410A-000 SCREWScrew (4x10) |
02122-0410A-000 |
from US $0.80 |
||
|
16
|
16
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
17
|
17
84551-52D01-000 GLASS,RR DR PARTITION,R |
84551-52D01-000 |
US $96.05 |
||
|
17
|
17
84551-52D10-000
Glass,rear door partition,r
|
84551-52D10-000 |
— | ||
|
17
|
17
84551-52D21-000
GLASS,RR DR PARTITION,R
|
84551-52D21-000 |
— | ||
|
18
|
18
84556-52D01-000 GLASS,RR DR PARTITION,L |
84556-52D01-000 |
US $96.05 |
||
|
18
|
18
84556-52D10-000 GLASS,RR DR PARTITION,L |
84556-52D10-000 |
US $105.25 |
||
|
18
|
18
84556-52D21-000 GLASS,RR DR PARTITION,L |
84556-52D21-000 |
US $115.92 |
||
|
19
|
19
84665-52D00-000 WEATHERSTRIP,RR DR PARTITION,R |
84665-52D00-000 |
US $85.60 |
||
|
20
|
20
84675-52D00-000 WEATHERSTRIP,RR DR PARTITION,L |
84675-52D00-000 |
US $39.01 |
||
