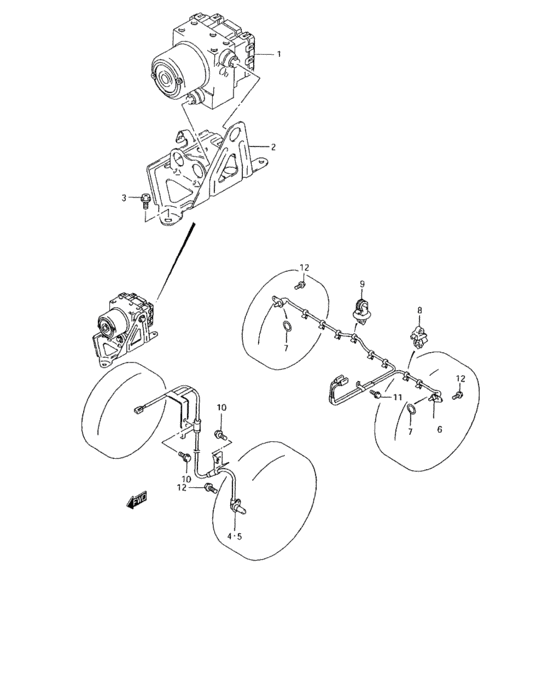

Anti lock brake system (W/ABS) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-52D01-000
アクチュエータアッシ,ABS
01 MODEL,02 MODEL |
56100-52D01-000 |
— | ||
| replacement | |||||
|
1
|
1
56100-52D02-000 ACTUATOR ASSY,ABS01 MODEL,02 MODEL |
56100-52D02-000 |
US $2,177.52 |
||
|
1
|
1
56100-52D02-000 ACTUATOR ASSY,ABS03 MODEL |
56100-52D02-000 |
US $2,177.52 |
||
|
2
|
2
56161-52D10-000
BRACKET,ACTUATOR
|
56161-52D10-000 |
— | ||
|
3
|
3
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
56210-52D00-000 SENSOR,FR WHEEL,RH |
56210-52D00-000 |
US $374.40 |
||
|
5
|
5
56220-52D00-000 SENSOR,FR WHEEL,LH |
56220-52D00-000 |
US $374.40 |
||
|
6
|
6
56310-52D00-000 SENSOR,REAR WHEEL (2 Sensors set) |
56310-52D00-000 |
US $253.92 |
||
|
7
|
7
51399-65D00-000 O-RING,RR WHEEL SENSOR |
51399-65D00-000 |
US $4.60 |
||
|
8
|
8
51398-65D00-000 CLAMP,RR WHEEL SENSOR |
51398-65D00-000 |
US $4.86 |
||
|
9
|
9
56298-81A00-000 CLAMP |
56298-81A00-000 |
US $1.92 |
||
|
10
|
10
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
12
|
12
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
