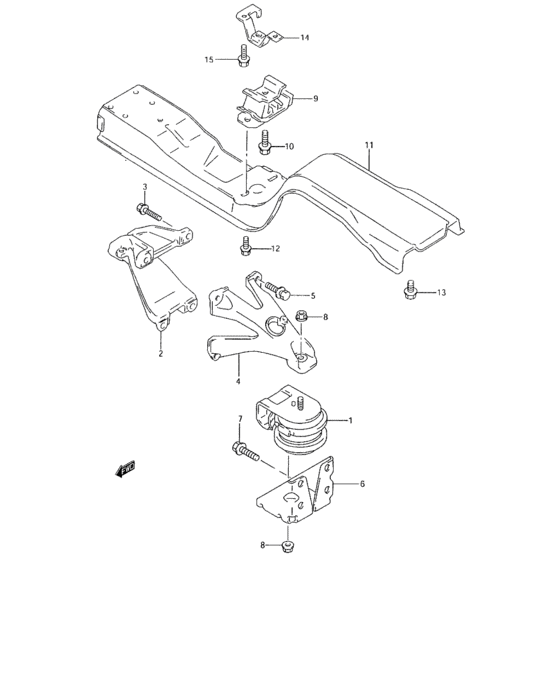

Engine mounting (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-67D00-000 MOUNTING,ENG FR |
11610-67D00-000 |
from US $138.33 |
||
|
2
|
2
11641-52D00-000 BRACKET,ENG FR MTG,R |
11641-52D00-000 |
US $111.14 |
||
|
3
|
3
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 Bolt |
01560-1030A-000 |
US $19.50 |
||
|
4
|
4
11651-52D00-000 BRACKET,ENG FR MTG,L |
11651-52D00-000 |
US $132 |
||
|
5
|
5
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01560-1030A-000 Bolt |
01560-1030A-000 |
US $19.50 |
||
|
6
|
6
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-65D00-000 |
US $26.86 |
||
|
6
|
6
11710-65D01-000
マウンチング,エンジン,リヤ
JS3TY92V 24103350~ |
11710-65D01-000 |
— | ||
| replacement | |||||
|
6
|
6
11710-65D03-000 MOUNTING,ENG RRJS3TY92V 24103350~ |
11710-65D03-000 |
from US $61.43 |
||
|
7
|
7
09112-12001-000 BOLT(12X35) |
09112-12001-000 |
US $22.40 |
||
|
8
|
8
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-60A01-000 MOUNTING,ENG RR,JS3TX92V 24109239~ |
11710-60A01-000 |
from US $52.94 |
||
|
10
|
10
01560-10203-000
Bolt
|
01560-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1020A-000 Bolt |
01560-1020A-000 |
US $17.30 |
||
|
10
|
10
01560-10253-000
ボルト
JS3TY92V 24103350~,JS3TX92V 24109239~ |
01560-10253-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1025A-000 BoltJS3TY92V 24103350~,JS3TX92V 24109239~ |
01560-1025A-000 |
US $1.07 |
||
|
11
|
11
11730-52D01-000 MEMBER,ENG RR MTG |
11730-52D01-000 |
US $215.28 |
||
|
12
|
12
01560-10163-000
ボルト
|
01560-10163-000 |
— | ||
| replacement | |||||
|
12
|
12
01560-1016A-000 Bolt |
01560-1016A-000 |
US $17.30 |
||
|
13
|
13
09112-10006-000 BOLT(10X25) |
09112-10006-000 |
US $1.38 |
||
|
14
|
14
11741-78E00-000 BRACKET,ENG RR MTG |
11741-78E00-000 |
US $12.95 |
||
|
14
|
14
11741-78E10-000 BRACKET,ENG RR MTGJS3TY92V 24103350~,JS3TX92V 24109239~ |
11741-78E10-000 |
US $15.57 |
||
|
15
|
15
01560-10253-000
ボルト
|
01560-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01560-1025A-000 Bolt |
01560-1025A-000 |
US $1.07 |
||
