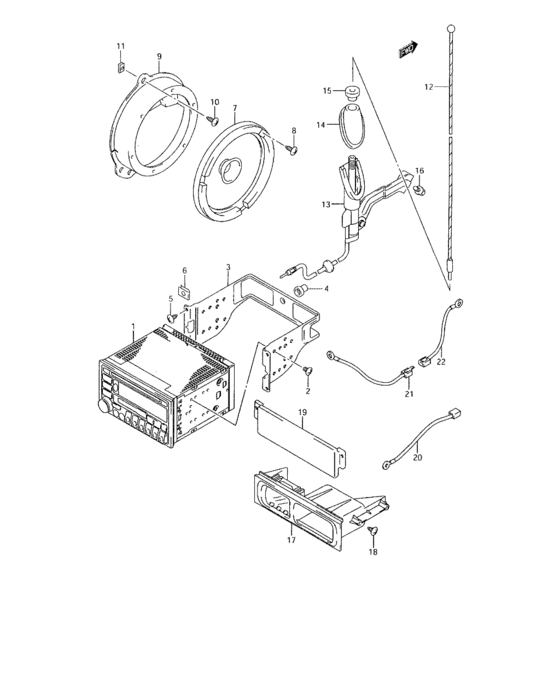

Radio (01,02 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-65DE0-000
TUNER ASSY,AM/FM CD
W/RADIO:01 MODEL |
39101-65DE0-000 |
— | ||
|
1
|
1
39101-65DE0-001
Knob, radio volume
NOT ILLUSTRATED |
39101-65DE0-001 |
— | ||
|
1
|
1
39101-65D80-000
TUNER ASSY,AM/FM CD 10KHZ
W/RADIO:02 MODEL |
39101-65D80-000 |
— | ||
|
1
|
1
39101-65DF0-000
TUNER ASSY,AM/FM CD CASSETTE
W/RADIO:01:MODEL |
39101-65DF0-000 |
— | ||
|
1
|
1
39101-65DB0-000
TUNER ASSY,AM/FM CD CASSETTE
W/RADIO:01 MODEL,JS3TY92V 14106373~,JS3TX92V 14117182~ |
39101-65DB0-000 |
— | ||
|
2
|
2
02142-05083-000
Screw
W/RADIO |
02142-05083-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0508A-000 SCREWScrew, cap W/RADIO |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
39321-65D00-000 BRACKET,TUNER |
39321-65D00-000 |
US $15.97 |
||
|
4
|
4
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
5
|
5
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
09148-05045-000 NUT |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
39102-82D00-000 SPEAKER ASSY |
39102-82D00-000 |
US $63.66 |
||
|
8
|
8
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
9
|
9
39350-82D00-000 BRACKET,FR SPKR |
39350-82D00-000 |
US $17.19 |
||
|
10
|
10
03542-06163-000
Screw
|
03542-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
11
|
11
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
12
|
12
39251-52D00-000
Rod,ant
|
39251-52D00-000 |
— | ||
| replacement | |||||
|
12
|
12
39251-52D01-000 ROD,ANTENNA |
39251-52D01-000 |
from US $56.30 |
||
|
13
|
13
39253-52D00-000 BODY ASSY,ANT |
39253-52D00-000 |
US $114.45 |
||
|
14
|
14
39256-52D00-000 INSULATOR ASSY,ANT |
39256-52D00-000 |
US $14.87 |
||
|
15
|
15
39269-52D00-000 NUT,ANT |
39269-52D00-000 |
US $24.10 |
||
|
16
|
16
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
16
|
16
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
17
|
17
34600-65D00-000
Clock assy
W/CLOCK |
34600-65D00-000 |
— | ||
| replacement | |||||
|
17
|
17
34600-65D01-000 CLOCK ASSYW/CLOCK |
34600-65D01-000 |
US $95.31 |
||
|
18
|
18
03242-05123-000
Screw, inner cover
W/CLOCK |
03242-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREWW/CLOCK |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
39161-70E01-000 COVER,RADIO HOLEN/RADIO |
39161-70E01-000 |
US $13.23 |
||
|
20
|
20
39191-50F00-000 WIRE,TUNER GNDW/RADIO |
39191-50F00-000 |
US $2.24 |
||
|
21
|
21
39312-65D00-000 WIRE,NOISE SUPPR |
39312-65D00-000 |
US $3.90 |
||
|
22
|
22
39312-60B11-000
ワイヤ,ノイズサプレッサ
|
39312-60B11-000 |
— | ||
| replacement | |||||
|
22
|
22
39312-60G00-000 WIRE,NOISE SUPPR |
39312-60G00-000 |
US $6.40 |
||
|
23
|
23
39103-69G10-000
MANUAL,OWNER'S
FOR 39101-65D,39101-65D80,NOT ILLUSTRATED |
39103-69G10-000 |
— | ||
|
23
|
23
39103-69G20-000
Owner's manual
FOR 39101-65DF0,39101-65DB0,NOT ILLUSTRATED |
39103-69G20-000 |
— | ||
|
24
|
24
39101-65DE0-002
Wire harness, tuner
NOT ILLUSTRATED |
39101-65DE0-002 |
— | ||
