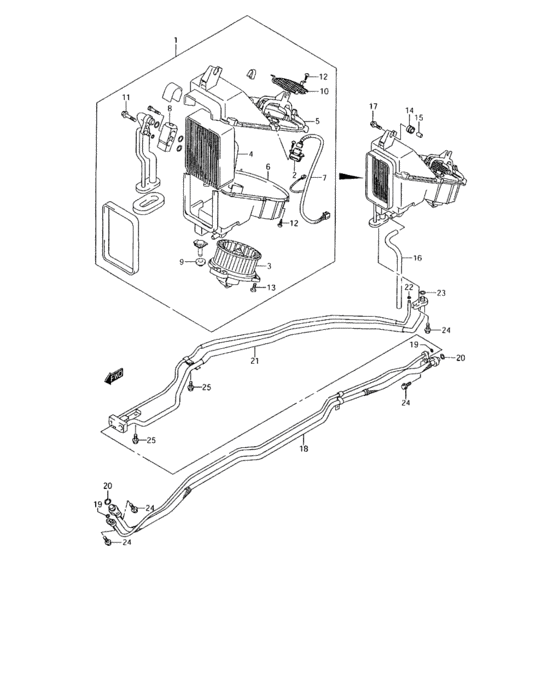

Rear air con (03 MODEL:W/DUAL AIR CON) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-54J00-000
COOLING ASSY,RR
|
95400-54J00-000 |
— | ||
|
2
|
2
74140-66D00-000 RESISTOR,BLOWER MOTOR |
74140-66D00-000 |
US $48.58 |
||
|
3
|
3
74250-60G00-000 MOTOR |
74250-60G00-000 |
US $464.64 |
||
|
4
|
4
95410-54J00-000 EVAPORATOR ASSY |
95410-54J00-000 |
US $464.64 |
||
|
5
|
5
95421-66D00-000
CASE,EVAPO,UPPER
|
95421-66D00-000 |
— | ||
|
6
|
6
95422-66D00-000
CASE,EVAPO,LOWER
|
95422-66D00-000 |
— | ||
|
7
|
7
95537-54J00-000
HARNESS
|
95537-54J00-000 |
— | ||
|
8
|
8
95560-54J00-000
Expansion valve
|
95560-54J00-000 |
— | ||
| replacement | |||||
|
8
|
8
95560-54J02-000 FAN ASSY,COND |
95560-54J02-000 |
US $287.28 |
||
|
9
|
9
95851-66D00-000
CUSHION
|
95851-66D00-000 |
— | ||
|
10
|
10
95861-66D00-000 FILTER |
95861-66D00-000 |
US $43.79 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
13
|
13
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
13
|
13
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
14
|
14
13877-65D00-000 COLLAR,7.6X10X19.3 |
13877-65D00-000 |
US $3.04 |
||
|
15
|
15
13878-65D00-000 CUSHION,12.5X22X19.5 |
13878-65D00-000 |
US $2.74 |
||
|
16
|
16
95481-66D00-000
HOSE,DRAIN
|
95481-66D00-000 |
— | ||
|
17
|
17
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
18
|
18
95733-54J00-000
パイプ,リキッド,NO.2
|
95733-54J00-000 |
— | ||
| replacement | |||||
|
18
|
18
95733-54J01-000 PIPE,LIQUID NO.2 |
95733-54J01-000 |
US $281.52 |
||
|
19
|
19
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
20
|
20
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
21
|
21
95734-54J00-000
パイプ,リキッド,NO.3
|
95734-54J00-000 |
— | ||
| replacement | |||||
|
21
|
21
95734-54J10-000 PIPE,LIQUID NO.3 |
95734-54J10-000 |
US $220.80 |
||
|
22
|
22
95891-54J00-000 O-RING |
95891-54J00-000 |
US $1.60 |
||
|
23
|
23
95896-54J00-000 O-RING |
95896-54J00-000 |
from US $1.60 |
||
|
24
|
24
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
25
|
25
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
