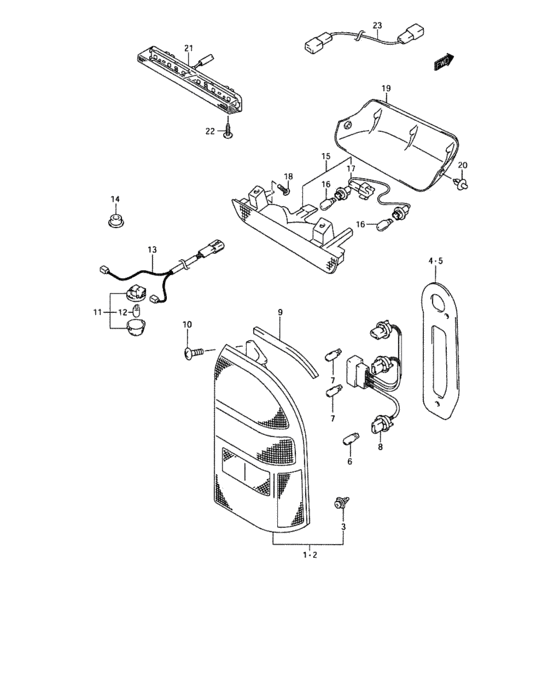

Rear lamp (REAR LAMP) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-65D00-000
LAMP UNIT,RR COMB,R
|
35650-65D00-000 |
— | ||
|
2
|
2
35670-65D00-000
LAMP UNIT,RR COMB,L
|
35670-65D00-000 |
— | ||
|
3
|
3
71812-78F00-000 CLIP |
71812-78F00-000 |
from US $1.53 |
||
|
4
|
4
35657-65D00-000 GASKET,LAMP UNIT,R |
35657-65D00-000 |
US $9.72 |
||
|
5
|
5
35677-65D00-000 GASKET,LAMP UNIT,L |
35677-65D00-000 |
US $9.72 |
||
|
6
|
6
09471-12192-000 BULB(12V21/5W) |
09471-12192-000 |
from US $3.19 |
||
|
7
|
7
09471-12191-000 BULB(12V21W) |
09471-12191-000 |
from US $3.87 |
||
|
8
|
8
35658-65D00-000 SOCKET&CORD ASSY |
35658-65D00-000 |
US $29.26 |
||
|
9
|
9
35653-65D00-000 SEAL,LAMP UNIT |
35653-65D00-000 |
US $5.85 |
||
|
10
|
10
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
11
|
11
35910-75F11-000
Lamp assy, license
|
35910-75F11-000 |
— | ||
| replacement | |||||
|
11
|
11
35910-75F12-000 Lamp assy,license |
35910-75F12-000 |
from US $12.47 |
||
|
12
|
12
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
13
|
13
36843-65D00-000 WIRE,LICENSE LAMP |
36843-65D00-000 |
US $16.49 |
||
|
14
|
14
09308-06009-000 GROMMET |
09308-06009-000 |
US $1.76 |
||
|
15
|
15
35820-65D11-000 LAMP UNIT,HIGH MT STOPN/BACK DOOR SPOILER |
35820-65D11-000 |
US $99.73 |
||
|
16
|
16
09471-12146-000 BULB(12V16W)Bulb (12v18w) N/BACK DOOR SPOILER |
09471-12146-000 |
from US $3.36 |
||
|
17
|
17
35818-76F10-000 SOCKETN/BACK DOOR SPOILER |
35818-76F10-000 |
US $23.55 |
||
|
18
|
18
02142-06103-000
Screw
N/BACK DOOR SPOILER |
02142-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0610B-000 SCREWStopper, cl rlse cam shaft N/BACK DOOR SPOILER |
02142-0610B-000 |
from US $0.76 |
||
|
18
|
18
02142-0610A-000 SCREWN/BACK DOOR SPOILER |
02142-0610A-000 |
from US $0.80 |
||
|
19
|
19
35821-65D10-T01
COVER,HIGH MOUNT STOP LAMP
N/BACK DOOR SPOILER,01 MODEL,02 MODEL (GRAY) |
35821-65D10-T01 |
— | ||
|
19
|
19
35821-65D10-R8H
COVER,HIGH MOUNT STOP LAMP
N/BACK DOOR SPOILER,03 MODEL (BEIGE) |
35821-65D10-R8H |
— | ||
|
19
|
19
35821-65D10-P4Z
COVER,HIGH MOUNT STOP LAMP
N/BACK DOOR SPOILER,03 MODEL (GRAY) |
35821-65D10-P4Z |
— | ||
|
20
|
20
09409-06314-T01 CLIP(GRAY)N/BACK DOOR SPOILER,01 MODEL,02 MODEL |
09409-06314-T01 |
from US $1.52 |
||
|
20
|
20
09409-06314-R8H CLIP(BEIGE)N/BACK DOOR SPOILER,03 MODEL |
09409-06314-R8H |
US $1.52 |
||
|
20
|
20
09409-06314-P4Z CLIP(GRAY)N/BACK DOOR SPOILER,03 MODEL |
09409-06314-P4Z |
US $1.60 |
||
|
21
|
21
35810-82D10-000 LAMP ASSY,HIGH MT STOPW/BACK DOOR SPOILER |
35810-82D10-000 |
US $222.40 |
||
|
22
|
22
03242-04163-000
Screw
W/BACK DOOR SPOILER |
03242-04163-000 |
— | ||
| replacement | |||||
|
22
|
22
03242-0416B-000 SCREWW/BACK DOOR SPOILER |
03242-0416B-000 |
from US $2.72 |
||
|
23
|
23
36842-65D10-000
WIRE,HIGH MOUNT STOP LAMP
N/BACK DOOR SPOILER |
36842-65D10-000 |
— | ||
|
23
|
23
36842-65D00-000 WIRE,HIGH MOUNT STOP LAMPW/BACK DOOR SPOILER |
36842-65D00-000 |
US $12.59 |
||
