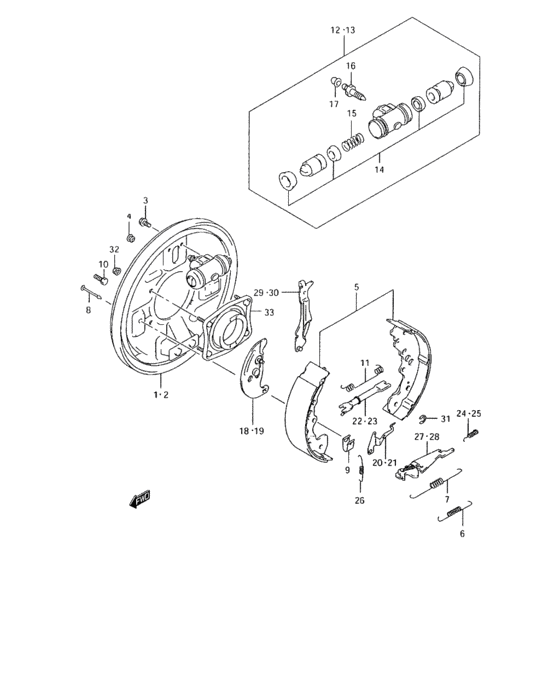

Rear wheel brake (REAR WHEEL BRAKE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-52D00-000 PLATE ASSY,BACKING,R |
53110-52D00-000 |
US $151.62 |
||
|
2
|
2
53120-52D00-000 PLATE ASSY,BACKING,L |
53120-52D00-000 |
US $151.62 |
||
|
3
|
3
53131-52D00-000 BOLT,WHEEL CYL |
53131-52D00-000 |
US $3.13 |
||
|
4
|
4
53141-65D00-000 PLUG,BACKING PLATE |
53141-65D00-000 |
US $2.83 |
||
|
5
|
5
53200-52D10-000
Shoe set, brake
|
53200-52D10-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-52D23-000 SHOE SET,BRAKE |
53200-52D23-000 |
from US $112.46 |
||
|
6
|
6
53231-56B00-000 SPRING,SHOE RETURN LOWER |
53231-56B00-000 |
from US $2.88 |
||
|
7
|
7
53232-52D00-000 SPRING,SHOE RETURN LOWER |
53232-52D00-000 |
from US $3.04 |
||
|
8
|
8
53241-52D00-000 PIN,SHOE HOLD DOWN |
53241-52D00-000 |
from US $1.92 |
||
|
9
|
9
53243-65D00-000 SPRING,SHOE HOLD DOWN |
53243-65D00-000 |
from US $1.92 |
||
|
10
|
10
53247-52D00-000
Bolt,serration
|
53247-52D00-000 |
— | ||
| replacement | |||||
|
10
|
10
53247-77K00-000 BOLT,SERRATION |
53247-77K00-000 |
US $1.82 |
||
|
11
|
11
53331-65D00-000 SPRING,SHOE RETURN UPPER |
53331-65D00-000 |
from US $5.04 |
||
|
12
|
12
53401-65D00-000 CYLINDER ASSY,RR WHEEL, RH |
53401-65D00-000 |
from US $61.72 |
||
|
13
|
13
53402-65D00-000
CYLINDER ASSY,RR WHEEL, LH
|
53402-65D00-000 |
— | ||
| replacement | |||||
|
13
|
13
53402-65D01-000 CYLINDER ASSY WHEEL RR LH |
53402-65D01-000 |
from US $61.36 |
||
|
14
|
14
53400-60830-000 PISTON CUP/BOOT SET |
53400-60830-000 |
from US $12 |
||
|
15
|
15
53441-56B00-000 SPRING,WHEEL CYLINDER |
53441-56B00-000 |
US $3.04 |
||
|
16
|
16
55473-82031-000 PLUG,BLEEDER |
55473-82031-000 |
US $4.80 |
||
|
17
|
17
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
18
|
18
53711-52D00-000 LINK ASSY,R |
53711-52D00-000 |
US $32.80 |
||
|
19
|
19
53712-52D00-000 LINK ASSY,L |
53712-52D00-000 |
US $32.80 |
||
|
20
|
20
53781-52D00-000 LEVER,PARKING ADJUSTER,R |
53781-52D00-000 |
from US $8.64 |
||
|
21
|
21
53782-52D00-000 LEVER,PARKING ADJUSTER,L |
53782-52D00-000 |
from US $9.41 |
||
|
22
|
22
53810-65D00-000 ADJUSTER ASSY,R |
53810-65D00-000 |
from US $31.82 |
||
|
23
|
23
53850-65D00-000 ADJUSTER ASSY,L |
53850-65D00-000 |
from US $34 |
||
|
24
|
24
53791-52D00-000 SPRING,ANTIRATTLE,R |
53791-52D00-000 |
from US $2.24 |
||
|
25
|
25
53792-52D00-000 SPRING,ANTIRATTLE,L |
53792-52D00-000 |
from US $2.24 |
||
|
26
|
26
53824-65D00-000 SPRING,ADJUSTER |
53824-65D00-000 |
from US $2.88 |
||
|
27
|
27
53830-65D00-000 STRUT ASSY,R |
53830-65D00-000 |
from US $46.55 |
||
|
28
|
28
53840-65D00-000 STRUT ASSY,L |
53840-65D00-000 |
from US $48.44 |
||
|
29
|
29
53720-52D00-000
レバーアッシ,パーキングシュー,ライト
|
53720-52D00-000 |
— | ||
| replacements | |||||
|
29
|
29
53720-52D01-000 LEVER ASSY,PARKING SHOE,R |
53720-52D01-000 |
US $47.20 |
||
|
29
|
29
53753-67H00-000 PUSH NUT,PARKING LEVER |
53753-67H00-000 |
from US $1.22 |
||
|
30
|
30
53730-52D00-000
レバーアッシ,パーキングシュー,レフト
|
53730-52D00-000 |
— | ||
| replacements | |||||
|
30
|
30
53730-52D01-000 LEVER ASSY,PARKING SHOE,L |
53730-52D01-000 |
US $47.20 |
||
|
30
|
30
53753-67H00-000 PUSH NUT,PARKING LEVER |
53753-67H00-000 |
from US $1.22 |
||
|
31
|
31
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper |
53753-82030-000 |
from US $0.99 |
||
|
32
|
32
09159-10091-000 NUT |
09159-10091-000 |
US $2.88 |
||
|
33
|
33
53820-52D00-000 RETAINER,RR WHL BRG OUTER |
53820-52D00-000 |
from US $41.04 |
||
