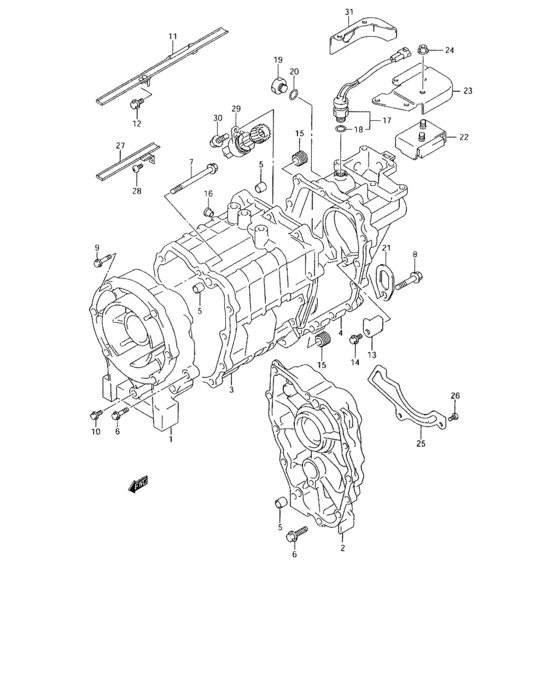

Transfer case (4WD:MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-78E00-000
CASE,T/F,FR
01 MODEL,02 MODEL |
29511-78E00-000 |
— | ||
|
2
|
2
29511-85F40-000 CASE,T/F,FR03 MODEL |
29511-85F40-000 |
US $297.60 |
||
|
3
|
3
29521-60A10-000
CASE,T/F,CENTER
|
29521-60A10-000 |
— | ||
|
4
|
4
29531-85F10-000
ケース,トランスファ,リヤ
|
29531-85F10-000 |
— | ||
| replacements | |||||
|
4
|
4
29531-85F11-000 CASE,T/F,RR |
29531-85F11-000 |
US $296.24 |
||
|
4
|
4
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.51 |
||
|
5
|
5
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
6
|
6
01550-08303-000
Bolt
01 MODEL,02 MODEL |
01550-08303-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0830B-000 Bolt01 MODEL,02 MODEL |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01550-0830A-000 BOLTBolt, mount oil seal cover 01 MODEL,02 MODEL |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
7
|
7
01550-0880A-000 BOLT |
01550-0880A-000 |
from US $1.76 |
||
|
8
|
8
01550-08453-000
Bolt,cylinder h
01 MODEL,02 MODEL |
01550-08453-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0845B-000 BOLT01 MODEL,02 MODEL |
01550-0845B-000 |
from US $1.06 |
||
|
8
|
8
01550-0845A-000 BOLTBolt, oil pump (s) 01 MODEL,02 MODEL |
01550-0845A-000 |
US $5.03 |
||
|
9
|
9
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-1035A-000 BOLTBolt, fr fork upper |
01550-1035A-000 |
from US $5.68 |
||
|
10
|
10
09103-08134-000 BOLT(8X110)Bolt, collector no.1 01 MODEL,02 MODEL |
09103-08134-000 |
from US $1.82 |
||
|
11
|
11
29528-60A00-000
GUTTER,T/F CTR CASE
|
29528-60A00-000 |
— | ||
|
12
|
12
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
13
|
13
29536-60A00-000
プレート,トランスファリヤケース
|
29536-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
29536-60A01-000 PLATE,T/F REAR CASE |
29536-60A01-000 |
US $2.10 |
||
|
14
|
14
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
15
|
15
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
15
|
15
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
16
|
16
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
US $1.28 |
||
|
17
|
17
37680-60A01-000 SWITCH ASSY,4WD |
37680-60A01-000 |
US $63.20 |
||
|
18
|
18
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
19
|
19
09247-14013-000 PLUGPlug, oil drain |
09247-14013-000 |
from US $2.08 |
||
|
20
|
20
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
21
|
21
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
22
|
22
29553-85F30-000 DAMPER,T/M MASS |
29553-85F30-000 |
from US $72.50 |
||
|
23
|
23
29554-52D00-000
ブラケット,トランスミッションマスダンパ
|
29554-52D00-000 |
— | ||
| replacement | |||||
|
23
|
23
29554-65D00-000 BRACKET,T/M MASS DAMPER |
29554-65D00-000 |
US $18.40 |
||
|
24
|
24
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
29527-60A00-000 PLATE,T/F SYNC |
29527-60A00-000 |
US $4.71 |
||
|
26
|
26
09125-06113-000 SCREW(6X12) |
09125-06113-000 |
US $21.70 |
||
|
27
|
27
29529-60A00-000 GUTTER,T/F SYNC |
29529-60A00-000 |
US $6.99 |
||
|
28
|
28
09125-06113-000 SCREW(6X12) |
09125-06113-000 |
US $21.70 |
||
|
29
|
29
34910-65D20-000
Sensor assy,speed
|
34910-65D20-000 |
— | ||
| replacement | |||||
|
29
|
29
34910-65D21-000 SENSOR ASSY,SPEED |
34910-65D21-000 |
US $151.62 |
||
|
30
|
30
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
30
|
30
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
31
|
31
29551-52D10-000
COVER,T/F RR
|
29551-52D10-000 |
— | ||
