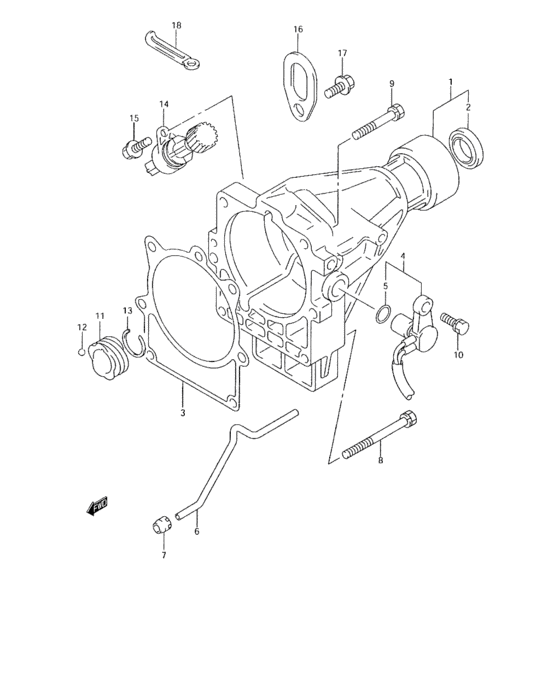

At extension case (AT:2WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24770-57BG0-000 CASE ASSY,EXTENSION |
24770-57BG0-000 |
US $841.28 |
||
|
2
|
2
29792-57BG0-000 OIL SEAL,EXTENSION |
29792-57BG0-000 |
US $20.24 |
||
|
3
|
3
24784-57B00-000 GASKET,ADAPTOR T/M CASE |
24784-57B00-000 |
US $23.20 |
||
|
4
|
4
24791-57B00-000 SENSOR,SPEED |
24791-57B00-000 |
US $342.16 |
||
|
5
|
5
29725-57B00-000 O-RING,SPEED SENSOR |
29725-57B00-000 |
US $8.10 |
||
|
6
|
6
26535-57BG0-000 TUBE,EXTENSION HOUSING |
26535-57BG0-000 |
US $12.36 |
||
|
7
|
7
29846-57BG0-000 PACKING,EXTENSION HOUSING |
29846-57BG0-000 |
US $5.48 |
||
|
8
|
8
29972-57BG0-000
Bolt
|
29972-57BG0-000 |
— | ||
|
9
|
9
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3 |
29972-57B00-000 |
US $16.34 |
||
|
10
|
10
29989-57B00-000 Bolt |
29989-57B00-000 |
US $5.59 |
||
|
11
|
11
26121-57BG0-000 GEAR,SPEEDOMETER DRIVE |
26121-57BG0-000 |
US $30.54 |
||
|
12
|
12
29433-57BG0-000 BALL,SPDOM DRIVEN GEAR LOCK |
29433-57BG0-000 |
US $1.80 |
||
|
13
|
13
24994-57BG0-000 RING,RETAINER SPDOM GR DRIVEN |
24994-57BG0-000 |
US $2.24 |
||
|
14
|
14
34910-65D70-000
Sensor assy,speed
|
34910-65D70-000 |
— | ||
| replacement | |||||
|
14
|
14
34910-65D71-000 SENSOR ASSY,SPEED |
34910-65D71-000 |
US $151.62 |
||
|
15
|
15
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
17
|
17
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
17
|
17
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
18
|
18
24734-65D10-000 CLAMP,WIRE HARNESS |
24734-65D10-000 |
US $2.72 |
||
