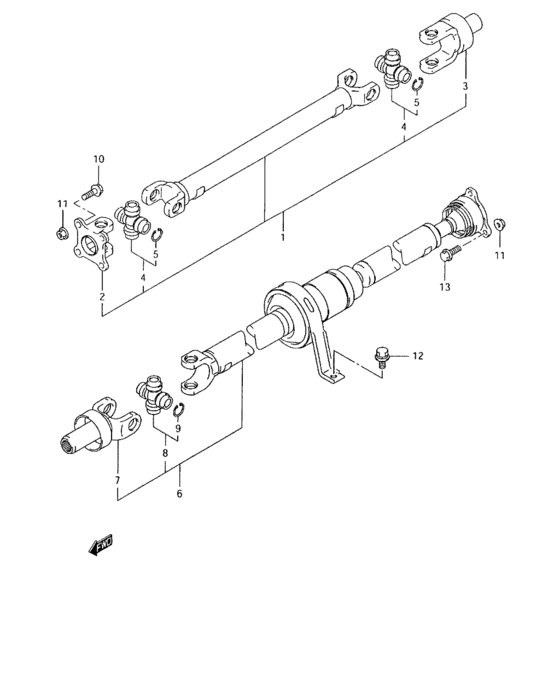

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-85FA1-000 SHAFT ASSY,PROPELLER FRONTAT |
27101-85FA1-000 |
US $639.92 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27100-52D10-000
Shaft assy, propeller rear
AT:2WD |
27100-52D10-000 |
— | ||
| replacement | |||||
|
6
|
6
27100-52D11-000
SHAFT ASSY,PROPELLER
AT:2WD |
27100-52D11-000 |
— | ||
|
7
|
7
27140-52D00-000
YOKE,SLIDING
AT:2WD |
27140-52D00-000 |
— | ||
|
8
|
8
27200-83820-000 JOINT ASSY,UNIVERSAL |
27200-83820-000 |
US $79.49 |
||
|
9
|
9
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
09159-10091-000 NUT2WD |
09159-10091-000 |
US $2.88 |
||
|
12
|
12
01580-10203-000
ボルト
|
01580-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-1020A-000 Bolt |
01580-1020A-000 |
US $19.50 |
||
|
13
|
13
09103-10313-000
Bolt, rr swgarm bracket, l
|
09103-10313-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-10405-000 BOLT(10X30) |
09103-10405-000 |
from US $1.82 |
||
