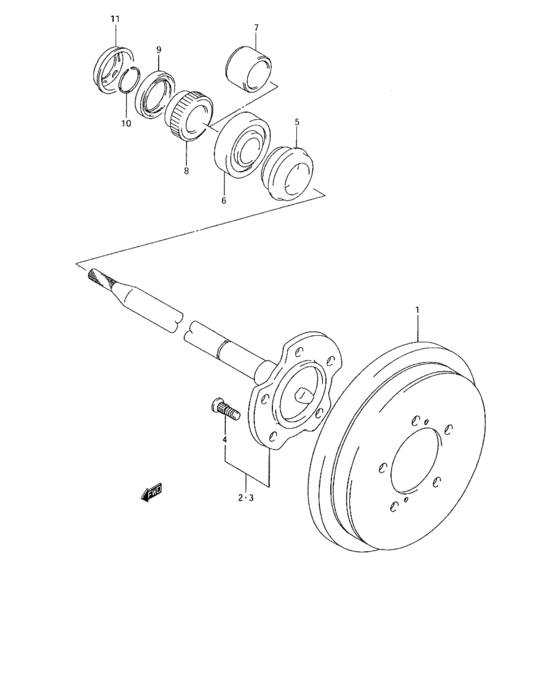

Rear axle and brake drum (REAR AXLE AND BRAKE DRUM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-52D00-000 DRUM,RR BRAKE |
43511-52D00-000 |
from US $189.92 |
||
|
2
|
2
44210-52810-000
シャフト,リヤアクスル,ライト
|
44210-52810-000 |
— | ||
| replacement | |||||
|
2
|
2
44210-52811-000 SHAFT, REAR AXLE, RH |
44210-52811-000 |
from US $340.81 |
||
|
3
|
3
44220-52810-000
シャフト,リヤアクスル,レフト
|
44220-52810-000 |
— | ||
| replacement | |||||
|
3
|
3
44220-52811-000 SHAFT, REAR AXLE, LH |
44220-52811-000 |
US $393.68 |
||
|
4
|
4
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
5
|
5
43594-52D00-000 PLATE,DEFLECTOR,DUST |
43594-52D00-000 |
from US $12.98 |
||
|
6
|
6
43591-52D00-000 BEARING,RR WHEEL |
43591-52D00-000 |
from US $118.78 |
||
|
7
|
7
43485-52D00-000 RING,RR WHEEL BRG RETAINERN/ABS |
43485-52D00-000 |
US $29.95 |
||
|
8
|
8
43485-52D50-000 RING,RR WHEEL BRG RETAINERW/ABS |
43485-52D50-000 |
from US $46.89 |
||
|
9
|
9
43592-52D00-000 SEAL,RR SHAFT OIL INNER |
43592-52D00-000 |
from US $15.91 |
||
|
10
|
10
43596-52D00-000 RING,RETAINING CLIP |
43596-52D00-000 |
from US $1.60 |
||
|
11
|
11
43588-52D00-000 PROTECTOR,OIL SEAL |
43588-52D00-000 |
from US $1.92 |
||
