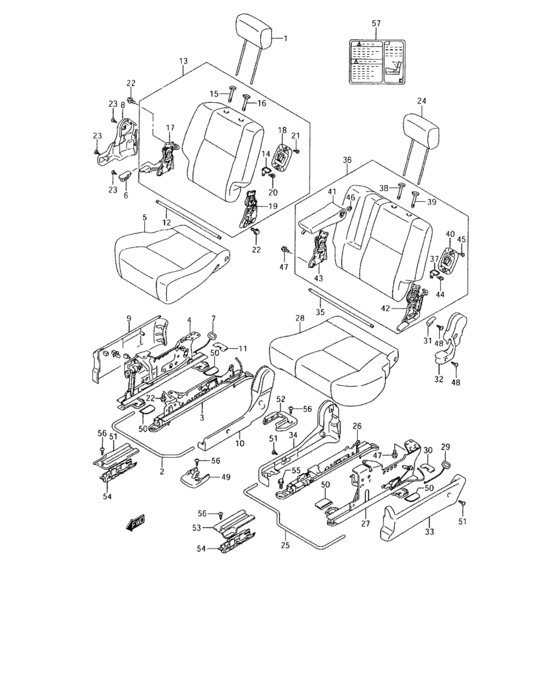

2nd seat (03 MODEL:EXC/LIMITED) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-55G70-R9F
Headrestraint assy
|
86401-55G70-R9F |
— | ||
| replacement | |||||
|
1
|
1
86401-55G71-R9F
HEADRESTRAINT ASSY
|
86401-55G71-R9F |
— | ||
|
1
|
1
86401-55G70-R9G
HEADRESTRAINT ASSY
|
86401-55G70-R9G |
— | ||
|
2
|
2
86781-52DA0-000
HANDLE,RR ADJUSTER,R
|
86781-52DA0-000 |
— | ||
|
3
|
3
86810-52DA1-000
ADJUSTER ASSY,RR INSIDE,R
|
86810-52DA1-000 |
— | ||
|
4
|
4
86830-52DG0-R8J
ADJUSTER ASSY,OUTSIDE,R
(GRAY) |
86830-52DG0-R8J |
— | ||
|
4
|
4
86830-52DG0-R8H
ADJUSTER ASSY,OUTSIDE,R
(BEIGE) |
86830-52DG0-R8H |
— | ||
|
5
|
5
87101-54JA0-KK3
CUSHION ASSY,RR,R(GRAY)
N/3RD SEAT |
87101-54JA0-KK3 |
— | ||
|
5
|
5
87101-54JA0-KK5
CUSHION ASSY,RR,R
N/3RD SEAT |
87101-54JA0-KK5 |
— | ||
|
5
|
5
87101-54JA0-KK2
Cushion assy,rr,r(gray)
W/3RD SEAT |
87101-54JA0-KK2 |
— | ||
|
5
|
5
87101-54JA0-KK4
CUSHION ASSY,RR,R
W/3RD SEAT |
87101-54JA0-KK4 |
— | ||
|
6
|
6
87213-52DA1-R8J
KNOB,RCLNG STOPPER,R
(GRAY) |
87213-52DA1-R8J |
— | ||
|
6
|
6
87213-52DA1-R8H
KNOB,RCLNG STOPPER,R
(BEIGE) |
87213-52DA1-R8H |
— | ||
|
7
|
7
87214-52DA0-R8J
HANDLE,RR ADJUSTER RR
|
87214-52DA0-R8J |
— | ||
|
7
|
7
87214-52DA0-R8H
HANDLE,RR ADJUSTER RR
|
87214-52DA0-R8H |
— | ||
|
8
|
8
87221-52DA0-R8J
COVER,RCLNG OUTSIDE,R
(GRAY) |
87221-52DA0-R8J |
— | ||
|
8
|
8
87221-52DA0-R8H
COVER,RCLNG OUTSIDE,R
(BEIGE) |
87221-52DA0-R8H |
— | ||
|
9
|
9
87223-52DA0-R8J
COVER,ADJ LOWER,R
|
87223-52DA0-R8J |
— | ||
|
9
|
9
87223-52DA0-R8H
COVER,ADJ LOWER,R
|
87223-52DA0-R8H |
— | ||
|
10
|
10
87241-52DA0-R8J
COVER,RCLNG INSIDE,R
(GRAY) |
87241-52DA0-R8J |
— | ||
|
10
|
10
87241-52DA0-R8H
COVER,RCLNG INSIDE,R
(BEIGE) |
87241-52DA0-R8H |
— | ||
|
11
|
11
87496-52DA0-R8J
COVER,RR ADJ OUTSIDE RR
(GRAY) |
87496-52DA0-R8J |
— | ||
|
11
|
11
87496-52DA0-R8H
COVER,RR ADJ OUTSIDE RR
(BEIGE) |
87496-52DA0-R8H |
— | ||
|
12
|
12
87250-52DA0-000
ROD,RR RCLNG,R
|
87250-52DA0-000 |
— | ||
|
13
|
13
87301-54JA0-KK3
BACK ASSY,RR,R(GRAY)
N/3RD SEAT |
87301-54JA0-KK3 |
— | ||
|
13
|
13
87301-54JA0-KK5
BACK ASSY,RR,R
N/3RD SEAT |
87301-54JA0-KK5 |
— | ||
|
13
|
13
87301-54JA0-KK2
BACK ASSY,RR,R(GRAY)
W/3RD SEAT |
87301-54JA0-KK2 |
— | ||
|
13
|
13
87301-54JA0-KK4
BACK ASSY,RR,R
W/3RD SEAT |
87301-54JA0-KK4 |
— | ||
|
14
|
14
75480-65D30-000 HOOK,TETHER ANCHORAGE |
75480-65D30-000 |
US $12.84 |
||
|
15
|
15
85341-81A00-R8J GUIDE,HEADRESTRAINT |
85341-81A00-R8J |
US $6.04 |
||
|
15
|
15
85341-81A00-R8H GUIDE,HEADRESTRAINT |
85341-81A00-R8H |
US $6.04 |
||
|
16
|
16
85840-81A00-R8J
Guide, headrestraint
|
85840-81A00-R8J |
— | ||
| replacement | |||||
|
16
|
16
85840-81A10-R8J GUIDE,HEADRESTRAINT |
85840-81A10-R8J |
US $13.73 |
||
|
16
|
16
85840-81A00-R8H
Guide, headrestraint
|
85840-81A00-R8H |
— | ||
| replacement | |||||
|
16
|
16
85840-81A10-R8H GUIDE,HEADRESTRAINT |
85840-81A10-R8H |
US $11.63 |
||
|
17
|
17
87210-52DA0-R8J
RECLINING ASSY,RR OUT,R
|
87210-52DA0-R8J |
— | ||
|
17
|
17
87210-52DA0-R8H
RECLINING ASSY,OUT
|
87210-52DA0-R8H |
— | ||
|
18
|
18
87225-52DA0-R8J
COVER,TETHER ANCHOR
|
87225-52DA0-R8J |
— | ||
|
18
|
18
87225-52DA0-R8H
COVER,TETHER ANCHOR
|
87225-52DA0-R8H |
— | ||
|
19
|
19
87230-52DA0-R8J
Reclining, inside rh
|
87230-52DA0-R8J |
— | ||
| replacement | |||||
|
19
|
19
87230-52DA0-T01
RECLINING ASSY,RR INS,R
|
87230-52DA0-T01 |
— | ||
|
19
|
19
87230-52DA0-R8H
Reclining, inside rh
|
87230-52DA0-R8H |
— | ||
| replacement | |||||
|
19
|
19
87230-52DA0-T01
RECLINING ASSY,RR INS,R
|
87230-52DA0-T01 |
— | ||
|
20
|
20
09103-08242-000 BOLT(8X20) |
09103-08242-000 |
US $17.70 |
||
|
21
|
21
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
21
|
21
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
21
|
21
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
22
|
22
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
23
|
23
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
23
|
23
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
23
|
23
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
24
|
24
86401-55G70-R9F
Headrestraint assy
|
86401-55G70-R9F |
— | ||
| replacement | |||||
|
24
|
24
86401-55G71-R9F
HEADRESTRAINT ASSY
|
86401-55G71-R9F |
— | ||
|
24
|
24
86401-55G70-R9G
HEADRESTRAINT ASSY
|
86401-55G70-R9G |
— | ||
|
25
|
25
86791-52DA0-000
HANDLE,RR ADJUSTER,L
|
86791-52DA0-000 |
— | ||
|
26
|
26
86860-52DA1-000
ADJUSTER ASSY,RR INSIDE,L
|
86860-52DA1-000 |
— | ||
|
27
|
27
86880-52DA1-R8J
Adjuster assy,outside,l(gray)
|
86880-52DA1-R8J |
— | ||
|
27
|
27
86880-52DA1-R8H
ADJUSTER ASSY,OUTSIDE,L
|
86880-52DA1-R8H |
— | ||
|
28
|
28
87102-54JA0-KK3
Cushion assy, 2nd lh
N/3RD SEAT |
87102-54JA0-KK3 |
— | ||
|
28
|
28
87102-54JA0-KK5
Cushion assy, 2nd lh
N/3RD SEAT |
87102-54JA0-KK5 |
— | ||
|
28
|
28
87102-54JA0-KK2
Cushion assy,rr,l(gray)
W/3RD SEAT |
87102-54JA0-KK2 |
— | ||
|
28
|
28
87102-54JA0-KK4
CUSHION ASSY,RR,L
W/3RD SEAT |
87102-54JA0-KK4 |
— | ||
|
29
|
29
87214-52DA0-R8J
HANDLE,RR ADJUSTER RR
|
87214-52DA0-R8J |
— | ||
|
29
|
29
87214-52DA0-R8H
HANDLE,RR ADJUSTER RR
|
87214-52DA0-R8H |
— | ||
|
30
|
30
87496-52DA0-R8J
COVER,RR ADJ OUTSIDE RR
(GRAY) |
87496-52DA0-R8J |
— | ||
|
30
|
30
87496-52DA0-R8H
COVER,RR ADJ OUTSIDE RR
(BEIGE) |
87496-52DA0-R8H |
— | ||
|
31
|
31
87713-52DA1-R8J KNOB,RCLNG STOPPER,L(GRAY) |
87713-52DA1-R8J |
US $4.23 |
||
|
31
|
31
87713-52DA1-R8H KNOB,RCLNG STOPPER,L(BEIGE) |
87713-52DA1-R8H |
US $4.27 |
||
|
32
|
32
87721-52DA0-R8J
Cover,rclng outside,l(gray)
(GRAY) |
87721-52DA0-R8J |
— | ||
|
32
|
32
87721-52DA0-R8H
Cover,rclng outside,l(beige)
(BEIGE) |
87721-52DA0-R8H |
— | ||
|
33
|
33
87723-52DA0-R8J
COVER,OUTSIDE LOWER,L
|
87723-52DA0-R8J |
— | ||
|
33
|
33
87723-52DA0-R8H
COVER,OUTSIDE LOWER,L
(BEIGE) |
87723-52DA0-R8H |
— | ||
|
34
|
34
87741-52DA0-R8J
COVER,RCLNG INSIDE,L
(GRAY) |
87741-52DA0-R8J |
— | ||
|
34
|
34
87741-52DA0-R8H
COVER,INSIDE,L
(BEIGE) |
87741-52DA0-R8H |
— | ||
|
35
|
35
87750-52DA0-000
ROD,RR RCLNG,L
|
87750-52DA0-000 |
— | ||
|
36
|
36
87302-54JA0-KK3
BACK ASSY,RR,L(GRAY)
N/3RD SEAT |
87302-54JA0-KK3 |
— | ||
|
36
|
36
87302-54JA0-KK5
BACK ASSY,RR,L
N/3RD SEAT |
87302-54JA0-KK5 |
— | ||
|
36
|
36
87302-54JA0-KK2
BACK ASSY,RR,L(GRAY)
W/3RD SEAT |
87302-54JA0-KK2 |
— | ||
|
36
|
36
87302-54JA0-KK4
Back assy,rr,l
W/3RD SEAT |
87302-54JA0-KK4 |
— | ||
|
37
|
37
75480-65D30-000 HOOK,TETHER ANCHORAGE |
75480-65D30-000 |
US $12.84 |
||
|
38
|
38
85341-81A00-R8J GUIDE,HEADRESTRAINT |
85341-81A00-R8J |
US $6.04 |
||
|
38
|
38
85341-81A00-R8H GUIDE,HEADRESTRAINT |
85341-81A00-R8H |
US $6.04 |
||
|
39
|
39
85840-81A00-R8J
Guide, headrestraint
|
85840-81A00-R8J |
— | ||
| replacement | |||||
|
39
|
39
85840-81A10-R8J GUIDE,HEADRESTRAINT |
85840-81A10-R8J |
US $13.73 |
||
|
39
|
39
85840-81A00-R8H
Guide, headrestraint
|
85840-81A00-R8H |
— | ||
| replacement | |||||
|
39
|
39
85840-81A10-R8H GUIDE,HEADRESTRAINT |
85840-81A10-R8H |
US $11.63 |
||
|
40
|
40
87225-52DA0-R8J
COVER,TETHER ANCHOR
|
87225-52DA0-R8J |
— | ||
|
40
|
40
87225-52DA0-R8H
COVER,TETHER ANCHOR
|
87225-52DA0-R8H |
— | ||
|
41
|
41
87501-52DG0-R9F
ARMREST ASSY,RR
|
87501-52DG0-R9F |
— | ||
|
41
|
41
87501-52DG0-R9G
ARMREST ASSY,RR
|
87501-52DG0-R9G |
— | ||
|
42
|
42
87710-52DA0-R8J
RECLINING ASSY,OUT,L
(GRAY) |
87710-52DA0-R8J |
— | ||
|
42
|
42
87710-52DA0-R8H
RECLINING ASSY,OUT,L
(BEIGE) |
87710-52DA0-R8H |
— | ||
|
43
|
43
87730-52DA0-R8J
Reclining, 2nd inside lh
(GRAY) |
87730-52DA0-R8J |
— | ||
| replacement | |||||
|
43
|
43
87730-52DA0-T01
RECLINING ASSY,RR INS,L
(GRAY) |
87730-52DA0-T01 |
— | ||
|
43
|
43
87730-52DA0-R8H
Reclining, 2nd inside lh
(BEIGE) |
87730-52DA0-R8H |
— | ||
| replacement | |||||
|
43
|
43
87730-52DA0-T01
RECLINING ASSY,RR INS,L
(BEIGE) |
87730-52DA0-T01 |
— | ||
|
44
|
44
09103-08242-000 BOLT(8X20) |
09103-08242-000 |
US $17.70 |
||
|
45
|
45
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
45
|
45
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
45
|
45
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
46
|
46
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
46
|
46
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
46
|
46
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
47
|
47
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
47
|
47
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
48
|
48
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
48
|
48
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
48
|
48
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
49
|
49
87491-52DA0-R8J
Cover, 2nd adjuster inside fr
(GRAY) |
87491-52DA0-R8J |
— | ||
| replacement | |||||
|
49
|
49
87491-52DA1-R8J COVER,RR ADJ INSIDE,FR(GRAY) |
87491-52DA1-R8J |
US $8.80 |
||
|
49
|
49
87491-52DA0-R8H
Cover, 2nd adjuster inside fr
(BEIGE) |
87491-52DA0-R8H |
— | ||
| replacement | |||||
|
49
|
49
87491-52DA1-R8H COVER,RR ADJ INSIDE,FR(BEIGE) |
87491-52DA1-R8H |
US $7.99 |
||
|
50
|
50
87492-52DA0-R8J COVER,RR ADJ OUTSIDE(GRAY) |
87492-52DA0-R8J |
US $7.25 |
||
|
50
|
50
87492-52DA0-R8H COVER,RR ADJ OUTSIDE(BEIGE) |
87492-52DA0-R8H |
US $6.59 |
||
|
51
|
51
87493-52DA1-R8J COVER,RR ADJ EXTENSION,R(GRAY) |
87493-52DA1-R8J |
US $26.86 |
||
|
51
|
51
87493-52DA1-R8H COVER,ADJ EXTENSION,R(BEIGE) |
87493-52DA1-R8H |
US $24.29 |
||
|
52
|
52
87495-52DA0-R8J
COVER,RR ADJ INSIDE RR
(GRAY) |
87495-52DA0-R8J |
— | ||
|
52
|
52
87495-52DA0-R8H
COVER,RR ADJ INSIDE RR
(BEIGE) |
87495-52DA0-R8H |
— | ||
|
53
|
53
87993-52DA1-R8J COVER,ADJ EXTENSION,L(GRAY) |
87993-52DA1-R8J |
US $26.86 |
||
|
53
|
53
87993-52DA1-R8H
COVER,ADJ EXTENSION,L
(BEIGE) |
87993-52DA1-R8H |
— | ||
|
54
|
54
87494-52DA0-000 BRACKET,RR ADJ EXTENSION |
87494-52DA0-000 |
US $15.31 |
||
|
55
|
55
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
55
|
55
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
56
|
56
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
56
|
56
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
56
|
56
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
57
|
57
86720-52D10-000
LABEL,SEAT WARNING
N/3RD SEAT |
86720-52D10-000 |
— | ||
|
57
|
57
86720-54JB0-000
LABEL,SEAT WARNING
W/3RD SEAT |
86720-54JB0-000 |
— | ||
