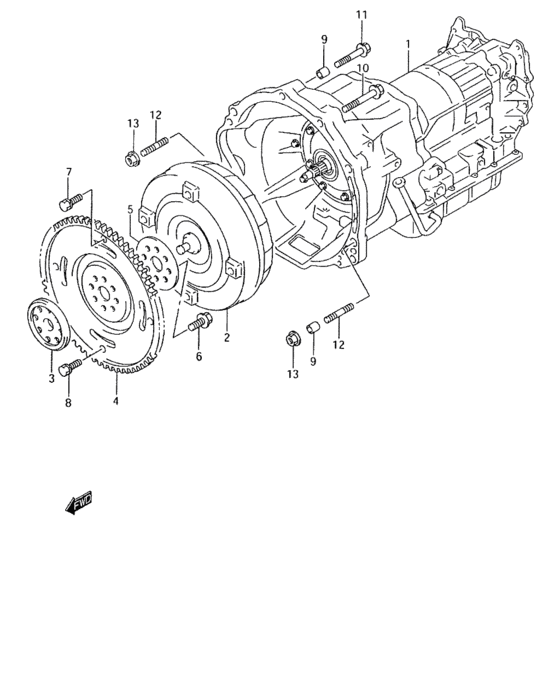

Automatic transmission (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- AT
- grade
- LIMITED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-67DV8-000
T/m assy,automatic
4WD |
21000-67DV8-000 |
— | ||
| replacements | |||||
|
1
|
1
21000-67DV8-REM
Automatic trans. assy.
4WD |
21000-67DV8-REM |
— | ||
|
1
|
1
21000-67DVC-000
T/M ASSY,AUTOMATIC
4WD |
21000-67DVC-000 |
— | ||
|
2
|
2
22700-67D30-000 CONVERTER,TORQUE |
22700-67D30-000 |
US $1,486.08 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-85FA0-000 PLATE,TC DRIVE |
22620-85FA0-000 |
US $366.40 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
from US $2.09 |
||
|
8
|
8
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
10
|
10
01550-12653-000
ボルト
|
01550-12653-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1265B-000 Bolt |
01550-1265B-000 |
US $1.76 |
||
|
11
|
11
01550-12753-000
ボルト
|
01550-12753-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
12
|
12
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.50 |
||
|
13
|
13
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
