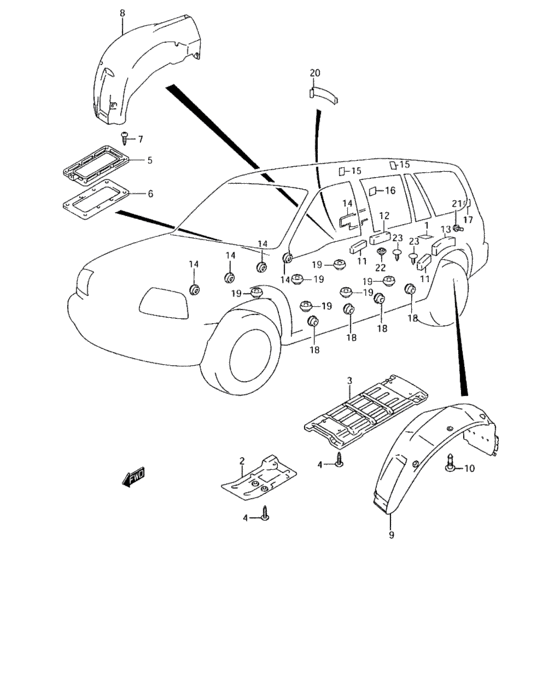

Cap/cover (CAP/COVER) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole (140X190),CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
75511-65D00-000
パネル,ヒートプロテクタ,フロント
01 MODEL,02 MODEL |
75511-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
75511-65D20-000 PANEL,HEAT PROTECTOR FRONT01 MODEL,02 MODEL |
75511-65D20-000 |
US $13.95 |
||
|
2
|
2
75511-65D20-000 PANEL,HEAT PROTECTOR FRONT03 MODEL |
75511-65D20-000 |
US $13.95 |
||
|
3
|
3
75512-52D00-000
PANEL,HEAT PROTECTOR REAR
|
75512-52D00-000 |
— | ||
|
3
|
3
75512-52D10-000
PANEL,HEAT PROTECTOR REAR
JS3TY92V 14106503~,JS3TX92V 14117596~ |
75512-52D10-000 |
— | ||
|
4
|
4
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
8
|
8
75521-65D10-000 LINING,RR WHEEL HSG,R |
75521-65D10-000 |
US $170.24 |
||
|
9
|
9
75531-65D00-000 LINING,RR WHEEL HSG,L |
75531-65D00-000 |
US $161.12 |
||
|
10
|
10
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
11
|
11
76551-52D00-000 PAD |
76551-52D00-000 |
US $6.73 |
||
|
12
|
12
76552-52D00-000
PAD,RR WHEEL HSG OTR RR,R
|
76552-52D00-000 |
— | ||
|
13
|
13
76553-52D00-000
PAD,RR WHEEL HSG OTR RR,L
|
76553-52D00-000 |
— | ||
|
14
|
14
76351-52D00-000
COVER,RR QUARTER INNER,R
|
76351-52D00-000 |
— | ||
|
15
|
15
76353-52D00-000 SEAL,RR QUARTER INNER NO.290X90->45X60 |
76353-52D00-000 |
US $5.96 |
||
|
16
|
16
76353-52D00-000 SEAL,RR QUARTER INNER NO.2 |
76353-52D00-000 |
US $5.96 |
||
|
17
|
17
76353-52D00-000 SEAL,RR QUARTER INNER NO.2L:90->60 |
76353-52D00-000 |
US $5.96 |
||
|
18
|
18
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
|
19
|
19
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
19
|
19
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
20
|
20
77114-67D00-000
Spring, fuel lid
|
77114-67D00-000 |
— | ||
| replacement | |||||
|
20
|
20
77114-67D0V-000 SPRING,FUEL LID |
77114-67D0V-000 |
US $3.24 |
||
|
20
|
20
77114-65D00-000 SPRING,FUEL LIDJS3TY92V 24106207~,JS3TX92V 24122267~ |
77114-65D00-000 |
US $3.64 |
||
|
21
|
21
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
09250-14009-000 CAP(OD:22)JS3TY92V 24110803~,JS3TX92V 24151467~ |
09250-14009-000 |
US $14.40 |
||
|
23
|
23
09409-09305-000 CLIPJS3TY92V 24110803~,JS3TX92V 24151467~ |
09409-09305-000 |
US $18.40 |
||
