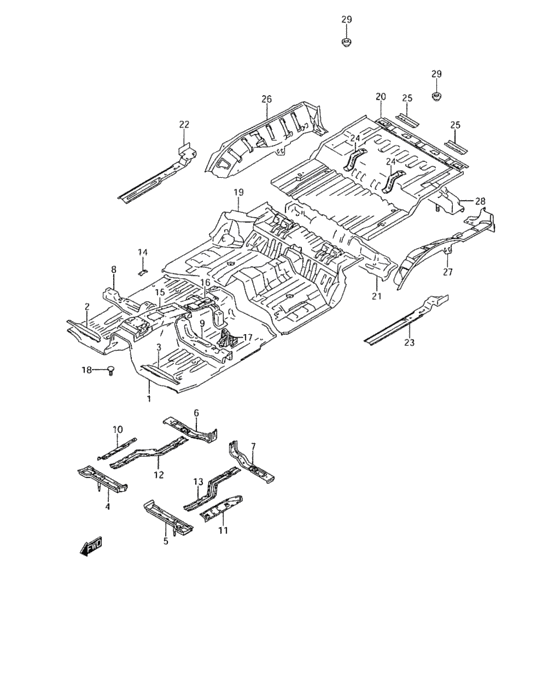

Floor panel (01,02 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61411-65DV0-000
PANEL,MAIN FLOOR
<-61400-52D20,<-61400-52D22 |
61411-65DV0-000 |
— | ||
|
2
|
2
61415-52D00-000
REINFORCEMENT,MAIN FL FR,R
|
61415-52D00-000 |
— | ||
|
3
|
3
61515-52D00-000
REINFORCEMENT,MAIN FL FR,L
|
61515-52D00-000 |
— | ||
|
4
|
4
61420-65D20-000
MEMBER,FR FL NO.1,R
|
61420-65D20-000 |
— | ||
|
5
|
5
61520-65D20-000
メンバ,フロントフロアNO.1,レフト
|
61520-65D20-000 |
— | ||
| replacement | |||||
|
5
|
5
61520-65D21-000
Member,front floor n0.1,l
|
61520-65D21-000 |
— | ||
|
6
|
6
61430-52D00-000
MEMBER,FR FL NO.2,R
|
61430-52D00-000 |
— | ||
|
7
|
7
61530-52D00-000
MEMBER,FR FL NO.2,L
|
61530-52D00-000 |
— | ||
|
8
|
8
61441-65D10-000
メンバ,フロントシート,ライト
|
61441-65D10-000 |
— | ||
| replacement | |||||
|
8
|
8
61441-65D20-000
MEMBER,FR SEAT,R
|
61441-65D20-000 |
— | ||
|
9
|
9
61541-65D10-000
メンバ,フロントシート,レフト
|
61541-65D10-000 |
— | ||
| replacement | |||||
|
9
|
9
61541-65D20-000
MEMBER,FR SEAT,L
|
61541-65D20-000 |
— | ||
|
10
|
10
61461-52D00-000
REINFORCEMENT,FR FL SIDE,R
|
61461-52D00-000 |
— | ||
|
11
|
11
61561-52D00-000
Reinf,front floor side,l
|
61561-52D00-000 |
— | ||
|
12
|
12
61471-52D00-000
MEMBER,FR FL NO.3,R
|
61471-52D00-000 |
— | ||
|
13
|
13
61571-52D00-000
MEMBER,FR FL NO.3,L
|
61571-52D00-000 |
— | ||
|
14
|
14
61476-52D00-000
BRACKET,2ND SEAT OUTER
|
61476-52D00-000 |
— | ||
|
15
|
15
61610-65D00-000
リンフォースメント,フロアトンネル
|
61610-65D00-000 |
— | ||
| replacement | |||||
|
15
|
15
61610-65D30-000 REINFORCEMENT,FL TUNNEL |
61610-65D30-000 |
US $86.11 |
||
|
16
|
16
61630-52D00-000
Bracket,parking brake
|
61630-52D00-000 |
— | ||
|
17
|
17
61660-52D00-000
BRACKET,JACK,L
|
61660-52D00-000 |
— | ||
|
18
|
18
09119-05018-000 BOLT(8X35) |
09119-05018-000 |
US $9.60 |
||
|
19
|
19
61700-52D00-000
パネルアッシ,センタフロア
01 MODEL |
61700-52D00-000 |
— | ||
| replacement | |||||
|
19
|
19
61700-52DV0-000
Panel assy,center floor
01 MODEL |
61700-52DV0-000 |
— | ||
|
19
|
19
61700-52D21-000
パネルアッシ,センタフロア
01 MODEL,JS3TY92V 14106330~,JS3TX92V 14117000~,02 MODEL:3-ROW,->61700-52D22,USED WITH 65971-77,(2PCS) |
61700-52D21-000 |
— | ||
| replacements | |||||
|
19
|
19
61700-52DV0-000
Panel assy,center floor
01 MODEL,JS3TY92V 14106330~,JS3TX92V 14117000~,02 MODEL:3-ROW,->61700-52D22,USED WITH 65971-77,(2PCS) |
61700-52DV0-000 |
— | ||
|
19
|
19
65971-77E10-000 CAP,OD:3001 MODEL,JS3TY92V 14106330~,JS3TX92V 14117000~,02 MODEL:3-ROW,->61700-52D22,USED WITH 65971-77,(2PCS) |
65971-77E10-000 |
US $2.24 |
||
|
19
|
19
61700-52D22-000
パネルアッシ,センタフロア
02 MODEL:3-ROW,JS3TY92V 24105662~,JS3TX92V 24120548~ |
61700-52D22-000 |
— | ||
| replacement | |||||
|
19
|
19
61700-52DV0-000
Panel assy,center floor
02 MODEL:3-ROW,JS3TY92V 24105662~,JS3TX92V 24120548~ |
61700-52DV0-000 |
— | ||
|
19
|
19
61700-52D31-000
パネルアッシ,センタフロア
02 MODEL:2-ROW,->61700-52D32,USED WITH 65971-77,(2PCS) |
61700-52D31-000 |
— | ||
| replacements | |||||
|
19
|
19
09103-08242-000 BOLT(8X20)02 MODEL:2-ROW,->61700-52D32,USED WITH 65971-77,(2PCS) |
09103-08242-000 |
US $17.70 |
||
|
19
|
19
65971-77E10-000 CAP,OD:3002 MODEL:2-ROW,->61700-52D32,USED WITH 65971-77,(2PCS) |
65971-77E10-000 |
US $2.24 |
||
|
19
|
19
61700-52D32-000
パネルアッシ,センタフロア
02 MODEL:2-ROW,JS3TY92V 24105662~,JS3TX92V 24120548~ |
61700-52D32-000 |
— | ||
| replacement | |||||
|
19
|
19
09103-08242-000 BOLT(8X20)02 MODEL:2-ROW,JS3TY92V 24105662~,JS3TX92V 24120548~ |
09103-08242-000 |
US $17.70 |
||
|
20
|
20
62111-66D11-000
パネル,リヤフロア
|
62111-66D11-000 |
— | ||
| replacements | |||||
|
20
|
20
62111-66D30-000 PANEL,REAR FLOOR |
62111-66D30-000 |
US $298.08 |
||
|
20
|
20
09409-09305-000 CLIP |
09409-09305-000 |
US $18.40 |
||
|
21
|
21
62120-52D00-000
メンバ,リヤフロア
|
62120-52D00-000 |
— | ||
| replacement | |||||
|
21
|
21
62120-52D10-000
Member,rear floor
|
62120-52D10-000 |
— | ||
|
22
|
22
62131-52D00-000
Reinf,rear seat belt side,r
|
62131-52D00-000 |
— | ||
|
23
|
23
62132-52D00-000
REINF,RR SEAT BELT SIDE,L
|
62132-52D00-000 |
— | ||
|
24
|
24
62161-52D00-000 BRACKET,3RD SEAT3-ROW |
62161-52D00-000 |
US $12.84 |
||
|
25
|
25
62171-52D00-000
BRACKET,LUGGAGE BOX
3-ROW |
62171-52D00-000 |
— | ||
|
26
|
26
62210-52D01-000
Panel,rr wheel hsg inr,r
|
62210-52D01-000 |
— | ||
|
27
|
27
62310-52D01-000
パネル,リヤホイールハウジングインナ,レフト
|
62310-52D01-000 |
— | ||
| replacements | |||||
|
27
|
27
62310-52D02-000
PANEL,RR WHEEL HSG INR,L
|
62310-52D02-000 |
— | ||
|
27
|
27
95831-54J00-000 GROMMET,A/C HOLE |
95831-54J00-000 |
US $4.71 |
||
|
28
|
28
62510-65D11-000
MEMBER,RR FL TAIL
|
62510-65D11-000 |
— | ||
|
29
|
29
65971-77E00-000
Cap, rear floor drain
|
65971-77E00-000 |
— | ||
| replacement | |||||
|
29
|
29
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
US $2.24 |
||
