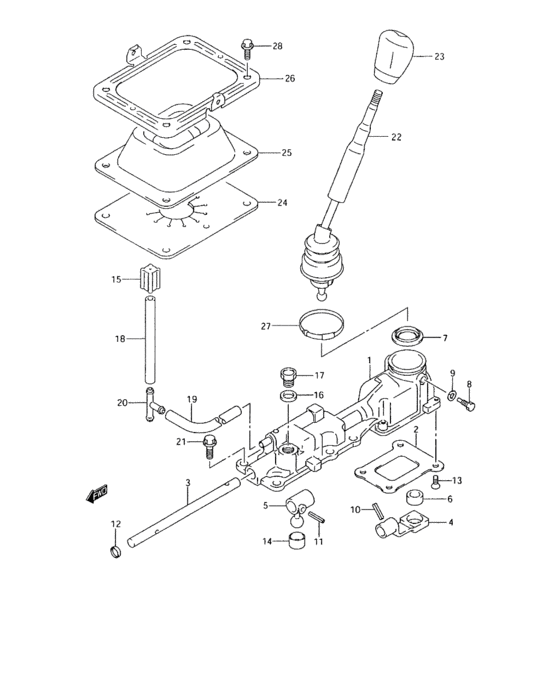

Gear shift control (MT:03 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25120-68D01-000
CASE,GR SHF LEVER
|
25120-68D01-000 |
— | ||
|
2
|
2
25129-60A00-000 PLATE,GEAR SHF CASE |
25129-60A00-000 |
US $8.76 |
||
|
3
|
3
25521-68D01-000
SHAFT,GEAR SHIFT
|
25521-68D01-000 |
— | ||
|
4
|
4
25531-67D00-000
ARM,GEAR SHIFT
|
25531-67D00-000 |
— | ||
|
5
|
5
25541-52D00-000 LEVER,GEAR SHF |
25541-52D00-000 |
US $30.36 |
||
|
6
|
6
25551-60A02-000 BUSH,GEAR CONT LEVER |
25551-60A02-000 |
from US $2.40 |
||
|
7
|
7
28117-60A00-000 SEAT,GEAR SHF LEVER CASE |
28117-60A00-000 |
from US $4.07 |
||
|
8
|
8
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
9
|
9
09162-08008-000 WASHER,LOCKLock washer |
09162-08008-000 |
from US $0.80 |
||
|
10
|
10
09205-03037-000 PIN,SPRING(3X25) |
09205-03037-000 |
from US $0.81 |
||
|
11
|
11
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.60 |
||
|
12
|
12
09241-16005-000 PLUG |
09241-16005-000 |
US $24.70 |
||
|
13
|
13
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
13
|
13
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
14
|
14
25551-52D00-000
BUSH,GEAR SHIFT LEVER
|
25551-52D00-000 |
— | ||
|
15
|
15
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
16
|
16
09168-14011-000 GASKET(14X20X1.5) |
09168-14011-000 |
from US $0.72 |
||
|
17
|
17
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.26 |
||
|
18
|
18
09352-70113-600
HOSE(7X11X600)
L:600->100 |
09352-70113-600 |
— | ||
| replacement | |||||
|
18
|
18
09352-70119-600 Hose(7X11X600)L:600->100 |
09352-70119-600 |
from US $4.64 |
||
|
19
|
19
09352-70113-600
HOSE(7X11X600)
L:600->430 |
09352-70113-600 |
— | ||
| replacement | |||||
|
19
|
19
09352-70119-600 Hose(7X11X600)L:600->430 |
09352-70119-600 |
from US $4.64 |
||
|
20
|
20
09367-08004-000 3 WAY3 way (m8) |
09367-08004-000 |
from US $2.24 |
||
|
21
|
21
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
21
|
21
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
22
|
22
28101-50J00-000
Lever, gear shift control
|
28101-50J00-000 |
— | ||
| replacement | |||||
|
22
|
22
28101-50J02-000
LEVER,GEAR SHF CONT
|
28101-50J02-000 |
— | ||
|
23
|
23
28113-50J00-KN1
Knob, control lever
|
28113-50J00-KN1 |
— | ||
| replacement | |||||
|
23
|
23
28113-50J07-KN1 KNOB,GEAR SHF CONT LEVER |
28113-50J07-KN1 |
US $130.64 |
||
|
24
|
24
28135-65D00-000 SHEET,GEAR SHF CONT LEVER NO.2 |
28135-65D00-000 |
US $47.20 |
||
|
25
|
25
28136-65D01-000 BOOT,GR SHF CONT LEVER N0.2 |
28136-65D01-000 |
US $26.72 |
||
|
26
|
26
28137-65D10-000 COVER,GEAR SHF CONT BOOT |
28137-65D10-000 |
US $15.97 |
||
|
27
|
27
09401-57901-000 CLAMP |
09401-57901-000 |
US $7.84 |
||
|
28
|
28
09118-08118-000 BOLT(8X20) |
09118-08118-000 |
US $12.50 |
||
