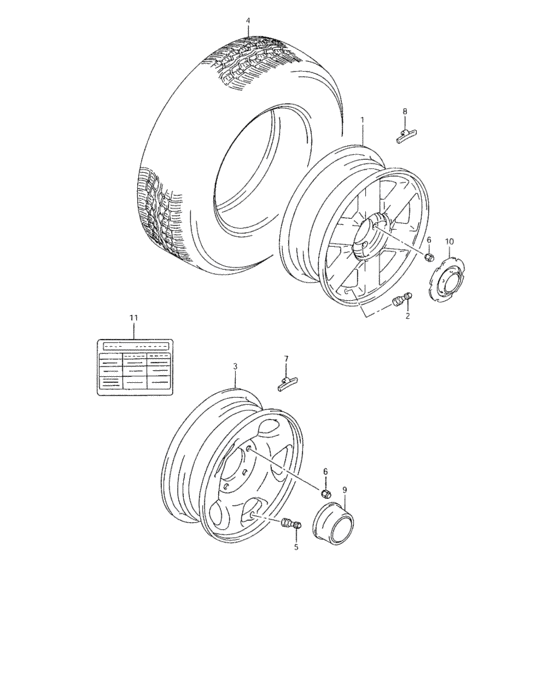

Road wheel and tire (01,02 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43200-52821-ZA8
Wheel set, al
W/ALUMI WHEEL, A918 |
43200-52821-ZA8 |
— | ||
| replacement | |||||
|
1
|
1
43200-52821-27S WHEEL SET,AL(16X7JJ)W/ALUMI WHEEL, A918 |
43200-52821-27S |
US $528 |
||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim W/ALUMI WHEEL |
43130-78030-000 |
US $12.50 |
||
|
3
|
3
43210-65D21-27S
Wheel
W/STEEL WHEEL |
43210-65D21-27S |
— | ||
| replacement | |||||
|
3
|
3
43210-54J40-ZBP WHEEL(16X7J)W/STEEL WHEEL |
43210-54J40-ZBP |
US $185.84 |
||
|
4
|
4
43110-52D40-000
Tire(p235/60r16)
|
43110-52D40-000 |
— | ||
|
5
|
5
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
6
|
6
09159-12057-000 NUT |
09159-12057-000 |
from US $2.89 |
||
|
7
|
7
43222-73H00-000 WEIGHT,WHEEL BALANCE 10GW/STEEL WHEEL |
43222-73H00-000 |
US $2.72 |
||
|
7
|
7
43224-73H00-000 WEIGHT,WHEEL BALANCE 20GW/STEEL WHEEL |
43224-73H00-000 |
US $3.02 |
||
|
7
|
7
43226-73H00-000 WEIGHT,WHEEL BALANCE 30GW/STEEL WHEEL |
43226-73H00-000 |
US $3.53 |
||
|
7
|
7
43228-73H00-000 WEIGHT,WHEEL BALANCE 40GW/STEEL WHEEL |
43228-73H00-000 |
US $3.97 |
||
|
8
|
8
43232-60A30-000 WEIGHT,WHEEL BALANCE 10GW/ALUMI WHEEL |
43232-60A30-000 |
US $4.45 |
||
|
8
|
8
43234-60A30-000 WEIGHT,WHEEL BALANCE 20GW/ALUMI WHEEL |
43234-60A30-000 |
US $5.81 |
||
|
8
|
8
43221-60E50-000 WEIGHT,WHEEL BALANCE 30GW/ALUMI WHEEL |
43221-60E50-000 |
US $6.15 |
||
|
8
|
8
43238-60A30-000 WEIGHT,WHEEL BALANCE 40GW/ALUMI WHEEL |
43238-60A30-000 |
US $5.63 |
||
|
9
|
9
43252-65D00-5PK CAP,WHEEL CENTERW/STEEL WHEEL |
43252-65D00-5PK |
from US $22.43 |
||
|
10
|
10
43250-52D50-FW2 CAP ASSY,WHEEL HALFW/ALUMI WHEEL |
43250-52D50-FW2 |
US $62.56 |
||
|
11
|
11
79161-52D51-000
PLACARD,TIRE INFORMATION
Canada |
79161-52D51-000 |
— | ||
|
11
|
11
79161-52D41-000
PLACARD,TIRE INFORMATION
California |
79161-52D41-000 |
— | ||
