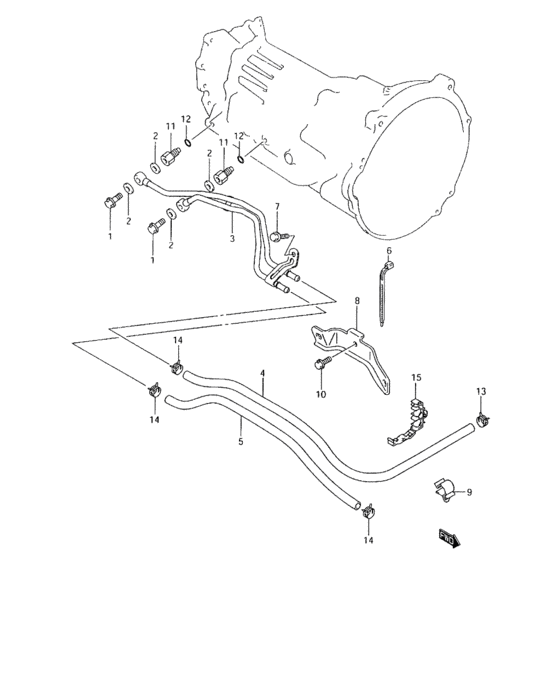

At oil hose (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-14012-000 BOLT,14X27Bolt, union (14x27) |
09360-14012-000 |
from US $6.88 |
||
|
2
|
2
22913-65D30-000
Gasket
|
22913-65D30-000 |
— | ||
| replacements | |||||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.9 |
22913-59J10-000 |
from US $1.51 |
||
|
2
|
2
22910-65810-000 BOLT&GASKET SET |
22910-65810-000 |
from US $9.38 |
||
|
3
|
3
22910-52D10-000 PIPE,OIL |
22910-52D10-000 |
from US $73.71 |
||
|
4
|
4
22931-52D10-000 HOSE,OIL |
22931-52D10-000 |
from US $31.16 |
||
|
5
|
5
22931-52D10-000 HOSE,OIL |
22931-52D10-000 |
from US $31.16 |
||
|
6
|
6
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
22935-85FA1-000
BRACKET,OIL HOSE CLAMP,NO.1
|
22935-85FA1-000 |
— | ||
|
9
|
9
09403-14315-000 CLAMPClamp, harness |
09403-14315-000 |
US $17.70 |
||
|
10
|
10
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
24743-57B10-000 UNION,OIL |
24743-57B10-000 |
US $46.36 |
||
|
12
|
12
29737-57B00-000 O-RING,OIL PIPE |
29737-57B00-000 |
from US $2.28 |
||
|
13
|
13
09401-15408-000 CLIPClip, 2nd air cleaner hose no.2 |
09401-15408-000 |
from US $3.26 |
||
|
14
|
14
09401-15410-000 CLIP |
09401-15410-000 |
from US $2.24 |
||
|
15
|
15
09403-14313-000 CLAMP |
09403-14313-000 |
US $2.40 |
||
