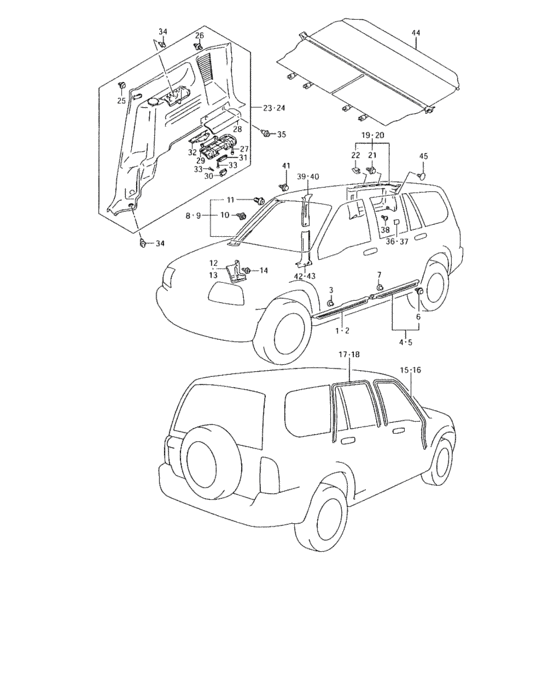

Interior trim (03 MODEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- XL7 LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76131-65D00-R8H SCUFF,SIDE SILL FRONT,R |
76131-65D00-R8H |
US $42.32 |
||
|
1
|
1
76131-65D00-R8J SCUFF,SIDE SILL FRONT,R |
76131-65D00-R8J |
US $42.32 |
||
|
2
|
2
76141-65D00-R8H SCUFF,SIDE SILL FRONT,L |
76141-65D00-R8H |
US $42.32 |
||
|
2
|
2
76141-65D00-R8J SCUFF,SIDE SILL FRONT,L |
76141-65D00-R8J |
US $42.32 |
||
|
3
|
3
09409-06314-R8H CLIP(BEIGE) |
09409-06314-R8H |
US $1.52 |
||
|
3
|
3
09409-06314-R8J CLIP(GRAY) |
09409-06314-R8J |
US $21.70 |
||
|
4
|
4
76170-52D00-R8H SCUFF,SIDE SILL RR,R |
76170-52D00-R8H |
US $27.42 |
||
|
4
|
4
76170-52D00-R8J
SCUFF,SIDE SILL RR,R
|
76170-52D00-R8J |
— | ||
|
5
|
5
76180-52D00-R8H SCUFF,SIDE SILL REAR,L |
76180-52D00-R8H |
US $27.42 |
||
|
5
|
5
76180-52D00-R8J SCUFF,SIDE SILL REAR,L |
76180-52D00-R8J |
US $30.18 |
||
|
6
|
6
76142-76G00-000 CLIP,INR |
76142-76G00-000 |
US $2.02 |
||
|
7
|
7
09409-06314-R8H CLIP(BEIGE) |
09409-06314-R8H |
US $1.52 |
||
|
7
|
7
09409-06314-R8J CLIP(GRAY) |
09409-06314-R8J |
US $21.70 |
||
|
8
|
8
76240-65D21-R8H
TRIM,FR PILLAR UPPER,R
|
76240-65D21-R8H |
— | ||
|
8
|
8
76240-65D21-6GS TRIM,FR PILLAR UPPER,R |
76240-65D21-6GS |
US $76.54 |
||
|
9
|
9
76250-65D21-R8H
TRIM,FR PILLAR UPPER,L
|
76250-65D21-R8H |
— | ||
|
9
|
9
76250-65D21-6GS TRIM,FR PILLAR UPPER,L |
76250-65D21-6GS |
US $76.54 |
||
|
10
|
10
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
11
|
11
09409-08322-000 CLIP |
09409-08322-000 |
from US $1.15 |
||
|
12
|
12
76111-65D00-R8H
TRIM,FR PILLAR LOWER,R
|
76111-65D00-R8H |
— | ||
|
12
|
12
76111-65D00-R8J
TRIM,FR PILLAR LOWER,R
|
76111-65D00-R8J |
— | ||
|
13
|
13
76121-65D10-R8H
TRIM,FR PILLAR LOWER,L
|
76121-65D10-R8H |
— | ||
|
13
|
13
76121-65D10-R8J TRIM,FR PILLAR LOWER,L |
76121-65D10-R8J |
US $27.05 |
||
|
14
|
14
09409-06322-R8H CLIP(BEIGE) |
09409-06322-R8H |
US $17.70 |
||
|
14
|
14
09409-06322-R8J CLIP(GRAY) |
09409-06322-R8J |
US $23.60 |
||
|
15
|
15
76311-52D00-5PK TRIM,FR DOOR OPENING,R |
76311-52D00-5PK |
US $65.14 |
||
|
16
|
16
76312-52D00-5PK TRIM,FR DOOR OPENING,L |
76312-52D00-5PK |
US $71.76 |
||
|
17
|
17
76321-52D00-5PK TRIM,RR DOOR OPENING,R |
76321-52D00-5PK |
US $76.18 |
||
|
18
|
18
76322-52D00-5PK
TRIM,RR DOOR OPENING,L
|
76322-52D00-5PK |
— | ||
|
19
|
19
76280-52D00-R8H
TRIM,RR QTR UPPER,R
|
76280-52D00-R8H |
— | ||
|
19
|
19
76280-52D00-6GS TRIM,RR QTR UPPER,R |
76280-52D00-6GS |
US $139.10 |
||
|
20
|
20
76290-52D00-R8H
TRIM,RR QTR UPPER,L
|
76290-52D00-R8H |
— | ||
|
20
|
20
76290-52D00-6GS TRIM,RR QTR UPPER,L |
76290-52D00-6GS |
US $153.09 |
||
|
21
|
21
09409-08331-000 CLIPRH:7PCS, LH:8PCS |
09409-08331-000 |
from US $1.24 |
||
|
22
|
22
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
23
|
23
76210-52D10-R8H
TRIM,RR QTR LOWER,R
2-ROW |
76210-52D10-R8H |
— | ||
|
23
|
23
76210-52D10-R8J
TRIM,RR QTR LOWER,R
2-ROW |
76210-52D10-R8J |
— | ||
|
23
|
23
76210-52D00-R8H
TRIM,RR QTR LOWER,R
3-ROW |
76210-52D00-R8H |
— | ||
|
23
|
23
76210-52D00-R8J TRIM,RR QTR LOWER,R3-ROW |
76210-52D00-R8J |
US $292.56 |
||
|
24
|
24
76220-52D10-R8H
TRIM,RR QTR LOWER,L
2-ROW |
76220-52D10-R8H |
— | ||
|
24
|
24
76220-52D10-R8J
TRIM,RR QTR LOWER,L
2-ROW |
76220-52D10-R8J |
— | ||
|
24
|
24
76220-52D00-R8H
TRIM,RR QTR LOWER,L
3-ROW |
76220-52D00-R8H |
— | ||
|
24
|
24
76220-52D00-R8J TRIM,RR QTR LOWER,L3-ROW |
76220-52D00-R8J |
US $209.76 |
||
|
25
|
25
09409-08331-000 CLIPRH:6, LH:4 |
09409-08331-000 |
from US $1.24 |
||
|
26
|
26
09409-09304-000 CLIP |
09409-09304-000 |
from US $1.33 |
||
|
27
|
27
73413-82C00-000 CUSHION |
73413-82C00-000 |
US $1.60 |
||
|
28
|
28
76214-52D00-R8H
Lid,rear quarter pocket outer
|
76214-52D00-R8H |
— | ||
|
28
|
28
76214-52D00-R8J
LID,RR QTR POCKET OUTER
|
76214-52D00-R8J |
— | ||
|
29
|
29
76215-52D00-R8H
LID,RR QTR POCKET INNER
|
76215-52D00-R8H |
— | ||
|
29
|
29
76215-52D00-R8J
LID,RR QTR POCKET INNER
|
76215-52D00-R8J |
— | ||
|
30
|
30
76216-52D00-R8H
LOCK ASSY,RR QTR POCKET
|
76216-52D00-R8H |
— | ||
|
30
|
30
76216-52D00-R8J
LOCK ASSY,RR QTR POCKET
|
76216-52D00-R8J |
— | ||
|
31
|
31
76217-52D00-000
STRIKER,REAR QUARTER POCKET
|
76217-52D00-000 |
— | ||
|
32
|
32
76230-52D00-000
Hinge comp,rr qtr pocket lid
|
76230-52D00-000 |
— | ||
|
33
|
33
03221-04103-000
Screw
|
03221-04103-000 |
— | ||
| replacement | |||||
|
33
|
33
03221-0410A-000 SCREW |
03221-0410A-000 |
from US $3.15 |
||
|
34
|
34
09409-06314-R8H CLIP(BEIGE) |
09409-06314-R8H |
US $1.52 |
||
|
34
|
34
09409-06314-R8J CLIP(GRAY) |
09409-06314-R8J |
US $21.70 |
||
|
35
|
35
09409-06322-R8H CLIP(BEIGE) |
09409-06322-R8H |
US $17.70 |
||
|
35
|
35
09409-06322-R8J CLIP(GRAY) |
09409-06322-R8J |
US $23.60 |
||
|
36
|
36
76285-52D00-R8H CAP,RR QTR UPR TRIM,R(BEIGE),3-ROW |
76285-52D00-R8H |
US $4.45 |
||
|
36
|
36
76285-52D00-6GS CAP,RR QTR UPR TRIM,R(GRAY),3-ROW |
76285-52D00-6GS |
US $4.93 |
||
|
37
|
37
76295-52D00-R8H CAP,RR QTR UPR TRIM,L(BEIGE),3-ROW |
76295-52D00-R8H |
US $4.93 |
||
|
37
|
37
76295-52D00-6GS CAP,RR QTR UPR TRIM,L(GRAY),3-ROW |
76295-52D00-6GS |
US $4.93 |
||
|
38
|
38
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
38
|
38
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
39
|
39
76260-65D20-R8H
TRIM,CTR PILLAR UPR,R
W/STD ROOF |
76260-65D20-R8H |
— | ||
|
39
|
39
76260-65D20-6GS
TRIM,CTR PILLAR UPR,R
W/STD ROOF |
76260-65D20-6GS |
— | ||
|
39
|
39
76260-65D30-R8H
TRIM,CTR PILLAR UPR,R
W/SUN ROOF |
76260-65D30-R8H |
— | ||
|
39
|
39
76260-65D30-6GS
TRIM,CTR PILLAR UPR,R
W/SUN ROOF |
76260-65D30-6GS |
— | ||
|
40
|
40
76270-65D20-R8H
TRIM,CTR PILLAR UPR,L
W/STD ROOF |
76270-65D20-R8H |
— | ||
|
40
|
40
76270-65D20-6GS
TRIM,CTR PILLAR UPR,L
W/STD ROOF |
76270-65D20-6GS |
— | ||
|
40
|
40
76270-65D30-R8H
TRIM,CTR PILLAR UPR,L
W/SUN ROOF |
76270-65D30-R8H |
— | ||
|
40
|
40
76270-65D30-6GS
TRIM,CTR PILLAR UPR,L
W/SUN ROOF |
76270-65D30-6GS |
— | ||
|
41
|
41
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
42
|
42
76151-65D10-R8H TRIM,CTR PILLAR LWR,R |
76151-65D10-R8H |
US $57.04 |
||
|
42
|
42
76151-65D10-R8J TRIM,CTR PILLAR LWR,R |
76151-65D10-R8J |
US $57.04 |
||
|
43
|
43
76161-65D10-R8H
TRIM,CTR PILLAR LWR,L
|
76161-65D10-R8H |
— | ||
|
43
|
43
76161-65D10-R8J
TRIM,CTR PILLAR LWR,L
|
76161-65D10-R8J |
— | ||
|
44
|
44
76340-52D01-KK1
Cover, tonneau
2-ROW |
76340-52D01-KK1 |
— | ||
| replacement | |||||
|
44
|
44
76340-52D02-KK1
COVER,TONNEAU
2-ROW |
76340-52D02-KK1 |
— | ||
|
44
|
44
76340-52D01-R8H
Cover, tonneau
2-ROW |
76340-52D01-R8H |
— | ||
| replacement | |||||
|
44
|
44
76340-52D02-R8H
COVER,TONNEAU
2-ROW |
76340-52D02-R8H |
— | ||
|
45
|
45
09409-10310-R8H
CLIP(BEIGE)
2-ROW |
09409-10310-R8H |
— | ||
|
45
|
45
09409-10310-6GS
CLIP(GRAY)
2-ROW |
09409-10310-6GS |
— | ||
