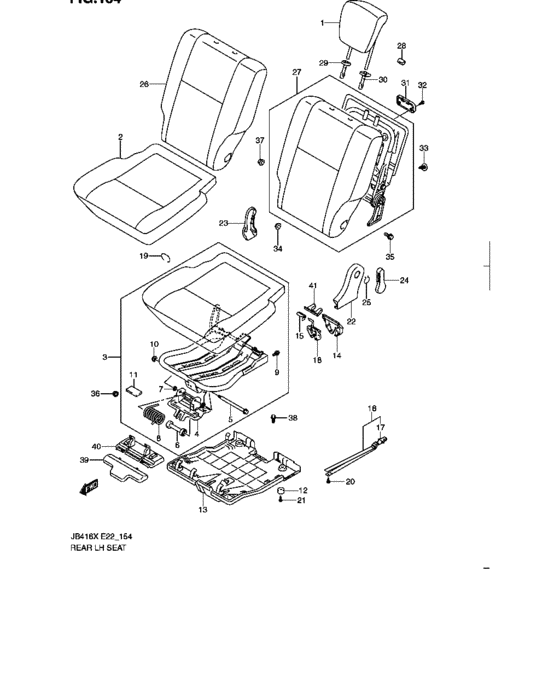

Lh rear seat (LH REAR SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-63J20-S5K
Headrestraint assy(black)
FABRIC |
86401-63J20-S5K |
— | ||
| replacements | |||||
|
1
|
1
86401-66J20-S5K
HEADRESTRAINT ASSY,RR
FABRIC |
86401-66J20-S5K |
— | ||
|
1
|
1
86401-66J22-S5K Headrestraint,rrFABRIC |
86401-66J22-S5K |
US $314.64 |
||
|
1
|
1
86401-66J20-NL5
Headrestraint assy
FABRIC,JSAJTA74V00102175~,JS3TA74V 64100014~,JSAJTA74V60100001~,JSAJTA44V00100031~ |
86401-66J20-NL5 |
— | ||
| replacements | |||||
|
1
|
1
86401-66J21-NL5
HEADRESTRAINT,RR
FABRIC,JSAJTA74V00102175~,JS3TA74V 64100014~,JSAJTA74V60100001~,JSAJTA44V00100031~ |
86401-66J21-NL5 |
— | ||
|
1
|
1
86401-66J22-NL5 Headrestraint,rrFABRIC,JSAJTA74V00102175~,JS3TA74V 64100014~,JSAJTA74V60100001~,JSAJTA44V00100031~ |
86401-66J22-NL5 |
US $126.96 |
||
|
1
|
1
86401-66J20-EHZ
HEADRESTRAINT ASSY,RR
LEATHER |
86401-66J20-EHZ |
— | ||
|
2
|
2
87680-64J00-BFE
TRIM,RR CUSHION,L(BLACK)
FABRIC |
87680-64J00-BFE |
— | ||
|
2
|
2
87680-64J00-EHY
Trim comp,rr cush,l
LEATHER |
87680-64J00-EHY |
— | ||
|
3
|
3
87106-64J00-000 CUSHION S/ASSY,RR,L,,Chile,2,Sinagpore,Saudi Arabia,China,Spain,,Israel,,6 |
87106-64J00-000 |
US $630.08 |
||
|
3
|
3
87106-64J30-000 CUSHION S/ASSY,RR,LAustralia |
87106-64J30-000 |
US $630.08 |
||
|
4
|
4
87150-66J00-000 LEG,RR CUSH |
87150-66J00-000 |
US $32.69 |
||
|
5
|
5
87153-63J01-000 BOLT,RR CUSH LEG |
87153-63J01-000 |
US $13.73 |
||
|
6
|
6
87149-66J00-000
COLLAR,SPRING
|
87149-66J00-000 |
— | ||
|
7
|
7
87157-63J00-000 BUSH,RR CUSH LEG |
87157-63J00-000 |
US $4.64 |
||
|
8
|
8
87158-64J00-000 SPRING,RR CUSH LEG,,Chile,2,Sinagpore,Saudi Arabia,China,Spain,,Israel,,6 |
87158-64J00-000 |
US $53.73 |
||
|
8
|
8
87158-64J30-000 SPRING,RR CUSH LEGAustralia |
87158-64J30-000 |
US $53.73 |
||
|
9
|
9
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
87144-66J00-000 SILENCER,RR CUSH |
87144-66J00-000 |
US $9.16 |
||
|
12
|
12
87155-64J00-000 CUSHION,RR SEAT CUSH |
87155-64J00-000 |
US $17.22 |
||
|
13
|
13
87675-64J00-5PK
カバー,クッションボトム,レフト(ブラック)
|
87675-64J00-5PK |
— | ||
| replacement | |||||
|
13
|
13
87675-64J01-5PK COVER,CUSH BOTTOM,L |
87675-64J01-5PK |
US $46.37 |
||
|
14
|
14
87176-64J00-5PK COVER,RR CUSH LOCK |
87176-64J00-5PK |
US $13.73 |
||
|
15
|
15
87245-64J00-5PK KNOB,RR LOCK |
87245-64J00-5PK |
US $4.01 |
||
|
16
|
16
87270-66J00-000 BAND,RR SEAT |
87270-66J00-000 |
US $23.18 |
||
|
17
|
17
87273-63J00-000
フック,リヤシートバンド
|
87273-63J00-000 |
— | ||
|
18
|
18
87460-64J01-000 LOCK ASSY,RR CUSH |
87460-64J01-000 |
US $80.96 |
||
|
19
|
19
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
20
|
20
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
21
|
21
03241-0520A-000 SCREW |
03241-0520A-000 |
from US $0.80 |
||
|
22
|
22
87721-64J00-5PK COVER,OUTSIDE,L |
87721-64J00-5PK |
US $28.89 |
||
|
23
|
23
87722-64J00-5PK
Cover,rr hinge inside,l(black)
|
87722-64J00-5PK |
— | ||
| replacement | |||||
|
23
|
23
87722-64J02-5PK COVER,RR HINGE INSIDE,L |
87722-64J02-5PK |
US $4.71 |
||
|
24
|
24
87290-64J00-5PK LEVER,RCLNG |
87290-64J00-5PK |
US $8.98 |
||
|
25
|
25
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
26
|
26
87880-64J00-BFE
TRIM,RR BACK,L(BLACK)
FABRIC |
87880-64J00-BFE |
— | ||
|
26
|
26
87880-64J00-EHY
TRIM,RR BACK,L
LEATHER |
87880-64J00-EHY |
— | ||
|
27
|
27
87306-64J00-000 BACK S/ASSY,RR,L,,Chile,2,Sinagpore,Saudi Arabia,China,Spain,,Israel,,6 |
87306-64J00-000 |
US $760.32 |
||
|
27
|
27
87306-64J30-000 BACK S/ASSY,RR,LAustralia |
87306-64J30-000 |
US $760.32 |
||
|
28
|
28
87359-66J00-000 CAP |
87359-66J00-000 |
US $3.83 |
||
|
29
|
29
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
29
|
29
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
29
|
29
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
30
|
30
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
30
|
30
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
30
|
30
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
31
|
31
87428-65DA0-5PK STRIKER,TONNEAU COVER |
87428-65DA0-5PK |
US $7.68 |
||
|
32
|
32
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
33
|
33
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
34
|
34
87649-66J00-000
Bush
|
87649-66J00-000 |
— | ||
| replacement | |||||
|
34
|
34
87649-66J01-000 BUSH,RR CUSH HINGE |
87649-66J01-000 |
US $3.64 |
||
|
35
|
35
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
36
|
36
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
37
|
37
09159-08119-000 NUT |
09159-08119-000 |
US $15.80 |
||
|
38
|
38
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
39
|
39
87491-66J00-5PK COVER,RR CUSH HINGE FR |
87491-66J00-5PK |
from US $11.52 |
||
|
40
|
40
87492-66J00-5PK COVER,RR CUSH HINGE RR |
87492-66J00-5PK |
US $19.32 |
||
|
41
|
41
87493-66J10-5PK COVER,TETHER ANCHOR |
87493-66J10-5PK |
US $4.38 |
||
