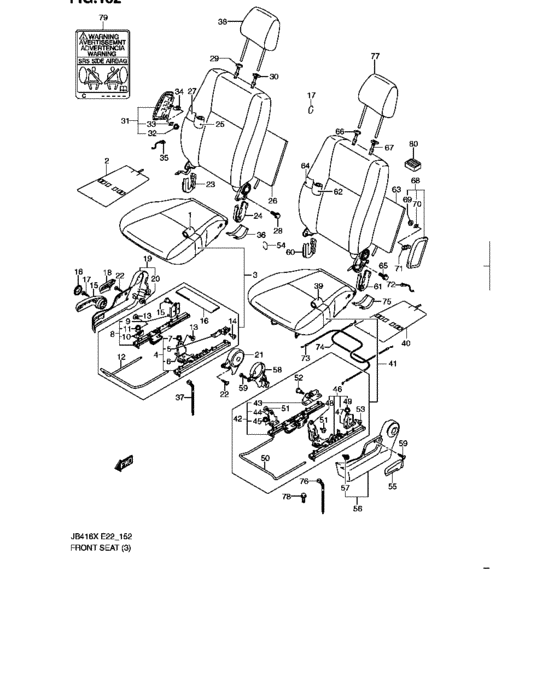

Front seat (RHD:TYPE 1) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85180-63J00-BFD
TRIM,FR CUSHION(BLACK)
|
85180-63J00-BFD |
— | ||
|
2
|
2
85170-63J00-000
Heater,fr cush
W/SEAT HEATER |
85170-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
85170-63J02-000 HEATER,FR CUSHW/SEAT HEATER |
85170-63J02-000 |
US $119.97 |
||
|
3
|
3
85105-64J00-000
CUSHION S/ASSY,FR,R
|
85105-64J00-000 |
— | ||
|
4
|
4
86601-63J00-000
ADJUSTER S/ASSY,FR INSIDE,R
|
86601-63J00-000 |
— | ||
|
5
|
5
86712-63J00-000
RISER,RR INS,R
|
86712-63J00-000 |
— | ||
|
6
|
6
86720-63J00-000
RISER,FR INS,R
|
86720-63J00-000 |
— | ||
|
7
|
7
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
8
|
8
86603-65J00-000
ADJUSTER S/ASSY,FR OUTSIDE,R
|
86603-65J00-000 |
— | ||
|
9
|
9
86641-65J00-000
RISER,RR OUT
|
86641-65J00-000 |
— | ||
|
10
|
10
86710-65J00-000
RISER,FR OUT,R
|
86710-65J00-000 |
— | ||
|
11
|
11
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
12
|
12
86691-65J00-000 HANDLE,FR SEAT ADJ |
86691-65J00-000 |
US $25.21 |
||
|
13
|
13
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
14
|
14
86717-63J10-000 BOLT,RR RISER INSIDE |
86717-63J10-000 |
US $7.62 |
||
|
15
|
15
86719-63J10-000 BOLT,RR RISER OUTSIDE |
86719-63J10-000 |
US $7.62 |
||
|
16
|
16
85169-63J00-000
SILENCER
|
85169-63J00-000 |
— | ||
|
17
|
17
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
18
|
18
85211-63J00-5PK
KNOB,RCLNG,R
|
85211-63J00-5PK |
— | ||
|
19
|
19
85220-64J00-5PK
COVER,OUTSIDE,R
|
85220-64J00-5PK |
— | ||
|
20
|
20
85225-74G00-P4Z CLIP, |
85225-74G00-P4Z |
US $2.36 |
||
|
21
|
21
85241-63J00-5PK
COVER,FR RCLNG INSIDE,R
|
85241-63J00-5PK |
— | ||
|
22
|
22
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
23
|
23
85222-63J00-5PK COVER,FR BACK FRAME,R |
85222-63J00-5PK |
US $6.62 |
||
|
24
|
24
85242-63J00-5PK COVER,FR BACK FRAME,L |
85242-63J00-5PK |
US $6.62 |
||
|
25
|
25
85380-63J00-BFD
Trim,fr back(black)
2AB |
85380-63J00-BFD |
— | ||
| replacement | |||||
|
25
|
25
85380-63J01-BFD
TRIM,FR BACK
2AB |
85380-63J01-BFD |
— | ||
|
25
|
25
85380-63JA0-BFD
TRIM,FR BACK,R(BLACK)
6AB |
85380-63JA0-BFD |
— | ||
|
26
|
26
85370-63J00-000
Heater,fr back
W/SEAT HEATER |
85370-63J00-000 |
— | ||
| replacement | |||||
|
26
|
26
85370-63J01-000 HEATER,FR BACKW/SEAT HEATER |
85370-63J01-000 |
US $112.24 |
||
|
27
|
27
85305-63JG0-000 BACK S/ASSY,FR,R2AB |
85305-63JG0-000 |
US $584.32 |
||
|
27
|
27
85305-63JN0-000 BACK S/ASSY,FR,R6AB |
85305-63JN0-000 |
US $702.40 |
||
|
28
|
28
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
29
|
29
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
29
|
29
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
29
|
29
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
30
|
30
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
30
|
30
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
30
|
30
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
31
|
31
85350-65J00-5PK
MODULE ASSY,SIDE A/B,R
6AB |
85350-65J00-5PK |
— | ||
|
32
|
32
85352-65J00-000 NUT6AB |
85352-65J00-000 |
US $6.40 |
||
|
33
|
33
85353-65J00-000 SLEEVE6AB |
85353-65J00-000 |
US $6.24 |
||
|
34
|
34
85351-62J00-000 FASTENER,SIDE AIR BAG MTG6AB |
85351-62J00-000 |
US $7.62 |
||
|
35
|
35
85355-62J00-000 HARNESS ASSY,SIDE AIRBAG6AB |
85355-62J00-000 |
US $26.61 |
||
|
36
|
36
86658-58J80-S9K
トリム,フロントクッション,リヤ
|
86658-58J80-S9K |
— | ||
| replacement | |||||
|
36
|
36
86658-58J90-S9K TRIM,FR CUSHION RR |
86658-58J90-S9K |
US $4.64 |
||
|
37
|
37
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
38
|
38
86401-65J00-NL5
Headrestraint assy
|
86401-65J00-NL5 |
— | ||
| replacements | |||||
|
38
|
38
86401-65J01-NL5
HEADRESTRAINT ASSY
|
86401-65J01-NL5 |
— | ||
|
38
|
38
86401-65J02-NL5 Headrestraint Assy |
86401-65J02-NL5 |
US $118.86 |
||
|
39
|
39
85680-63J00-BFD
TRIM,FR CUSHION,L(BLACK)
|
85680-63J00-BFD |
— | ||
| replacement | |||||
|
39
|
39
85680-63J01-BFD Trim,fr Cushion,l(Black) |
85680-63J01-BFD |
US $296.24 |
||
|
40
|
40
85170-63J00-000
Heater,fr cush
W/SEAT HEATER |
85170-63J00-000 |
— | ||
| replacement | |||||
|
40
|
40
85170-63J02-000 HEATER,FR CUSHW/SEAT HEATER |
85170-63J02-000 |
US $119.97 |
||
|
41
|
41
85106-64J20-000
CUSHION S/ASSY,FR,L
|
85106-64J20-000 |
— | ||
|
42
|
42
86602-64J00-000
ADJUSTER S/ASSY,FR INSIDE,L
|
86602-64J00-000 |
— | ||
|
43
|
43
86762-63J00-000
RISER,RR INS,L
|
86762-63J00-000 |
— | ||
|
44
|
44
86770-63J00-000
RISER,FR INS,L
|
86770-63J00-000 |
— | ||
|
45
|
45
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
46
|
46
86604-64J00-000
Adjuster sub assy,fr outside,l
|
86604-64J00-000 |
— | ||
|
47
|
47
86641-65J00-000
RISER,RR OUT
|
86641-65J00-000 |
— | ||
|
48
|
48
86760-65J00-000
RISER,FR OUT,L
|
86760-65J00-000 |
— | ||
|
49
|
49
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
50
|
50
86692-65J00-000 HANDLE,FR SEAT ADJ,L |
86692-65J00-000 |
US $25.21 |
||
|
51
|
51
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
52
|
52
86717-63J10-000 BOLT,RR RISER INSIDE |
86717-63J10-000 |
US $7.62 |
||
|
53
|
53
86719-63J10-000 BOLT,RR RISER OUTSIDE |
86719-63J10-000 |
US $7.62 |
||
|
54
|
54
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
55
|
55
85711-63J00-5PK KNOB,RCLNG,L |
85711-63J00-5PK |
US $5.41 |
||
|
56
|
56
85720-64J00-5PK
COVER,OUTSIDE,L
|
85720-64J00-5PK |
— | ||
|
57
|
57
85225-74G00-P4Z CLIP, |
85225-74G00-P4Z |
US $2.36 |
||
|
58
|
58
85741-63J00-5PK
COVER,FR RCLNG INSIDE,L
|
85741-63J00-5PK |
— | ||
|
59
|
59
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
60
|
60
85222-63J00-5PK COVER,FR BACK FRAME,R |
85222-63J00-5PK |
US $6.62 |
||
|
61
|
61
85242-63J00-5PK COVER,FR BACK FRAME,L |
85242-63J00-5PK |
US $6.62 |
||
|
62
|
62
85380-63J60-BFD
TRIM,FR BACK
2AB |
85380-63J60-BFD |
— | ||
| replacement | |||||
|
62
|
62
85380-63J62-BFD
Trim,fr Back
2AB |
85380-63J62-BFD |
— | ||
|
62
|
62
85880-63JG0-BFD
TRIM,FR BACK,L
6AB |
85880-63JG0-BFD |
— | ||
|
63
|
63
85370-63J00-000
Heater,fr back
W/SEAT HEATER |
85370-63J00-000 |
— | ||
| replacement | |||||
|
63
|
63
85370-63J01-000 HEATER,FR BACKW/SEAT HEATER |
85370-63J01-000 |
US $112.24 |
||
|
64
|
64
85306-64J20-000
Back s/assy,fr,l
2AB |
85306-64J20-000 |
— | ||
|
64
|
64
85306-64JA0-000
Back s/assy,fr,l
6AB |
85306-64JA0-000 |
— | ||
|
65
|
65
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
66
|
66
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
66
|
66
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
66
|
66
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
67
|
67
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
67
|
67
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
67
|
67
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
68
|
68
85850-65J00-5PK MODULE ASSY,SIDE A/B,L6AB |
85850-65J00-5PK |
US $946.88 |
||
|
69
|
69
85352-65J00-000 NUT6AB |
85352-65J00-000 |
US $6.40 |
||
|
70
|
70
85353-65J00-000 SLEEVE6AB |
85353-65J00-000 |
US $6.24 |
||
|
71
|
71
85351-62J00-000 FASTENER,SIDE AIR BAG MTG6AB |
85351-62J00-000 |
US $7.62 |
||
|
72
|
72
85355-62J00-000 HARNESS ASSY,SIDE AIRBAG6AB |
85355-62J00-000 |
US $26.61 |
||
|
73
|
73
86656-64J00-000 CABLE,FR ADJUSTER INSIDE |
86656-64J00-000 |
US $29.60 |
||
|
74
|
74
86657-64J00-000
CABLE,FR ADJUSTER OUTSIDE
|
86657-64J00-000 |
— | ||
|
75
|
75
86658-58J80-S9K
トリム,フロントクッション,リヤ
|
86658-58J80-S9K |
— | ||
| replacement | |||||
|
75
|
75
86658-58J90-S9K TRIM,FR CUSHION RR |
86658-58J90-S9K |
US $4.64 |
||
|
76
|
76
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
77
|
77
86401-65J00-NL5
Headrestraint assy
|
86401-65J00-NL5 |
— | ||
| replacements | |||||
|
77
|
77
86401-65J01-NL5
HEADRESTRAINT ASSY
|
86401-65J01-NL5 |
— | ||
|
77
|
77
86401-65J02-NL5 Headrestraint Assy |
86401-65J02-NL5 |
US $118.86 |
||
|
78
|
78
09119-08097-000 BOLT(8X25) |
09119-08097-000 |
from US $1.76 |
||
|
79
|
79
85354-59JC1-000
LABEL,SIDE AIRBAG
|
85354-59JC1-000 |
— | ||
|
80
|
80
86659-64J00-000 CAP,WALKIN PEDAL |
86659-64J00-000 |
US $4.64 |
||
