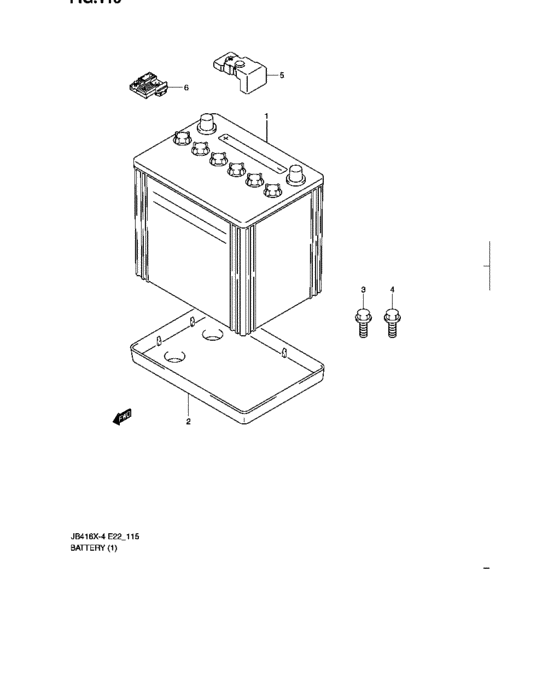

Battery (JB416X) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-65J00-000
バッテリアッシ
|
33610-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60GV1-000
BATTERY ASSY,55B24L [Cannot be supplied]
|
33610-60GV1-000 |
— | ||
|
2
|
2
33660-65J00-000 TRAY,BATTERY |
33660-65J00-000 |
US $12.70 |
||
|
3
|
3
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
4
|
4
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
5
|
5
36694-64J00-000 COVER,BTRY TERMINAL |
36694-64J00-000 |
from US $9.28 |
||
|
6
|
6
36739-50J00-000 FUSE,BATTERY CABLE 80A |
36739-50J00-000 |
US $11.16 |
||
