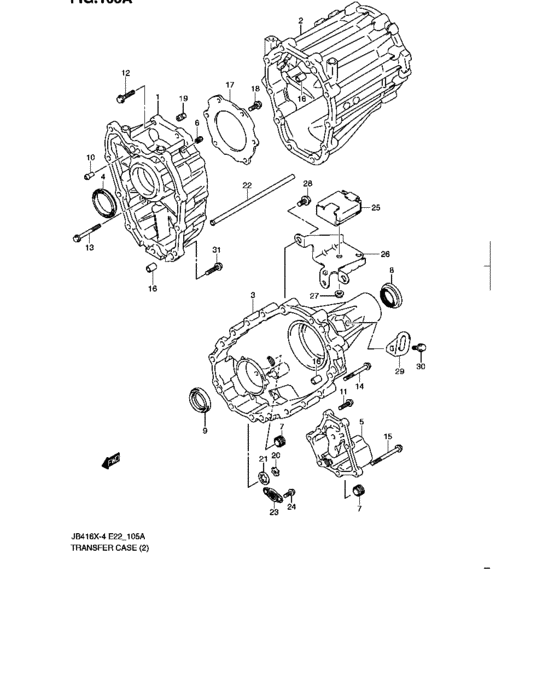

Transfer case Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-66J30-000 CASE,T/F,FR |
29511-66J30-000 |
US $185.84 |
||
|
2
|
2
29521-66J00-000 CASE,T/F,CENTER |
29521-66J00-000 |
US $664 |
||
|
3
|
3
29531-66J30-000 CASE,T/F,RR |
29531-66J30-000 |
US $430.40 |
||
|
4
|
4
29283-66J00-000 SEAL,INPUT GEAR |
29283-66J00-000 |
from US $10.58 |
||
|
5
|
5
29613-66J00-000 COVER,T/F OIL PUMP |
29613-66J00-000 |
US $70.40 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
7
|
7
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
7
|
7
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
8
|
8
09283-40035-000
Seal,oil,40x70.2x20.3
|
09283-40035-000 |
— | ||
| replacement | |||||
|
8
|
8
09283-40042-000 SEAL,OIL(40X72X23.3) |
09283-40042-000 |
from US $12.47 |
||
|
9
|
9
09283-40037-000 SEAL,OIL(40X54X7.3) |
09283-40037-000 |
from US $9.77 |
||
|
10
|
10
09364-06007-000 UNION |
09364-06007-000 |
US $17.70 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
13
|
13
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
14
|
14
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
15
|
15
01550-0895A-000 BOLT |
01550-0895A-000 |
from US $1.82 |
||
|
16
|
16
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
17
|
17
29515-66J00-000 PLATE,INPUT GEAR |
29515-66J00-000 |
US $9.64 |
||
|
18
|
18
09103-08266-000 BOLT(8X20)Bolt, lower |
09103-08266-000 |
from US $0.91 |
||
|
19
|
19
11130-85FA1-000 VALVE,OIL RELIEF |
11130-85FA1-000 |
US $31.20 |
||
|
20
|
20
29611-66J00-000 ROTOR,OIL PUMP INNER |
29611-66J00-000 |
US $11.52 |
||
|
21
|
21
29612-66J00-000 ROTOR,OIL PUMP OUTER |
29612-66J00-000 |
US $8.17 |
||
|
22
|
22
29614-66J00-000 PIPE,TRANSFER OIL |
29614-66J00-000 |
US $8.72 |
||
|
23
|
23
16520-12C01-000 STRAINER,ENGINE OIL |
16520-12C01-000 |
US $13.38 |
||
|
24
|
24
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
25
|
25
29553-85F30-000 DAMPER,T/M MASSJB416X |
29553-85F30-000 |
from US $72.50 |
||
|
25
|
25
29553-66J00-000 DAMPER,TRANSFER CASEJB419XD |
29553-66J00-000 |
US $118.86 |
||
|
26
|
26
29554-66J01-000 BRACKET,T/F MASS DAMPERJB416X,JB419XD |
29554-66J01-000 |
US $20.24 |
||
|
27
|
27
09159-10117-000 NUTJB416X,JB419XD |
09159-10117-000 |
from US $1.94 |
||
|
28
|
28
01550-1025C-000 BoltJB416X,JB419XD |
01550-1025C-000 |
US $17.70 |
||
|
29
|
29
11851-50F00-000 HOOK,ENGINE |
11851-50F00-000 |
US $3.20 |
||
|
30
|
30
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
31
|
31
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
