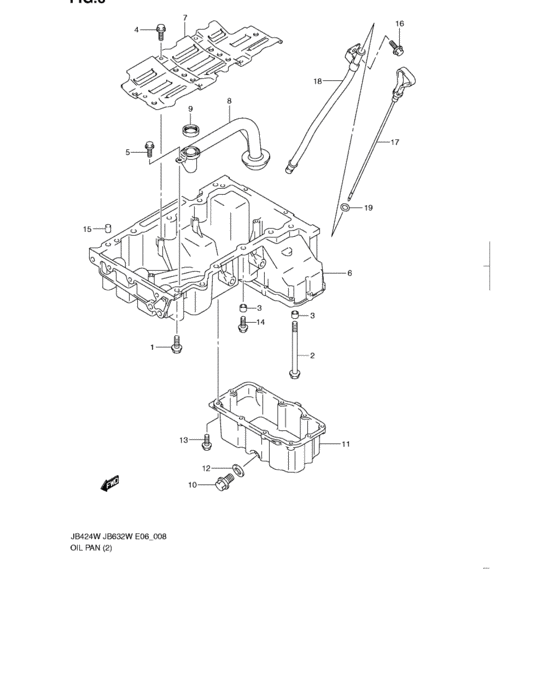

Oil pan (JB632W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1151C-78J00-000 BOLT,OIL PAN 8X35 |
1151C-78J00-000 |
US $1.91 |
||
|
2
|
2
1151K-78J00-000 BOLT,OIL PAN M6 |
1151K-78J00-000 |
US $4.71 |
||
|
3
|
3
1151G-78J00-000
RETAINER,M6
|
1151G-78J00-000 |
— | ||
|
4
|
4
1151J-78J00-000
BOLT,6X20
|
1151J-78J00-000 |
— | ||
|
5
|
5
1151J-78J00-000
BOLT,6X20
|
1151J-78J00-000 |
— | ||
|
6
|
6
11511-79K00-000 PAN,OIL UPPER |
11511-79K00-000 |
from US $217.42 |
||
|
7
|
7
11512-79K00-000 PLATE,OIL PAN BAFFLE |
11512-79K00-000 |
US $14.24 |
||
|
8
|
8
16520-79K00-000 STRAINER,OIL PUMP |
16520-79K00-000 |
US $65.50 |
||
|
9
|
9
16526-78J00-000
GASKET,OIL STRAINER
|
16526-78J00-000 |
— | ||
| replacement | |||||
|
9
|
9
16526-78J01-000 GASKET,OIL STRAINER |
16526-78J01-000 |
US $20.24 |
||
|
10
|
10
11518-63J01-000 PLUG,OIL DRAIN |
11518-63J01-000 |
from US $2.27 |
||
|
11
|
11
11521-79K00-000 PAN,OIL LOWER |
11521-79K00-000 |
US $110.40 |
||
|
12
|
12
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.17 |
||
|
13
|
13
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
14
|
14
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
15
|
15
1151H-78J00-000
PIN,DOWEL
|
1151H-78J00-000 |
— | ||
|
16
|
16
1655B-78J00-000
BOLT,6X16
|
1655B-78J00-000 |
— | ||
|
17
|
17
16910-79K00-000 GAUGE,OIL LEVEL |
16910-79K00-000 |
from US $17.17 |
||
|
18
|
18
16930-79K00-000
GUIDE,OIL LEVEL GAUGE
|
16930-79K00-000 |
— | ||
|
19
|
19
09280-07006-000 O RING(D:1.5,ID:7.5) |
09280-07006-000 |
US $1.92 |
||
