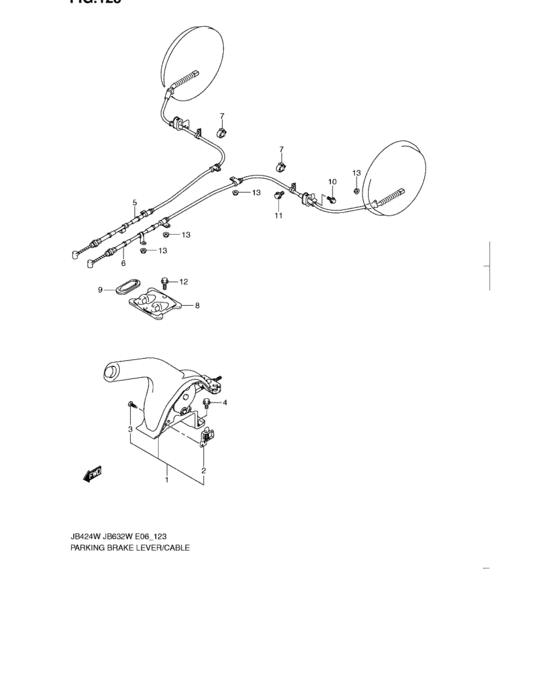

Parking brake lever/cable (PARKING BRAKE LEVER/CABLE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-65J00-5PK LEVER ASSY,PARKING BK |
54100-65J00-5PK |
US $135.79 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKE |
37940-76G00-000 |
US $7.73 |
||
|
3
|
3
03241-0410A-000 SCREW |
03241-0410A-000 |
from US $0.80 |
||
|
4
|
4
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
5
|
5
54401-77K00-000
Cable comp,parking brake,r
|
54401-77K00-000 |
— | ||
| replacement | |||||
|
5
|
5
54401-77K01-000 CABLE,PARKING BRAKE,R |
54401-77K01-000 |
from US $85.07 |
||
|
6
|
6
54402-77K00-000
Cable comp,parking brake,l
|
54402-77K00-000 |
— | ||
| replacement | |||||
|
6
|
6
54402-77K01-000 CABLE,PARKING BRAKE,L |
54402-77K01-000 |
from US $73.17 |
||
|
7
|
7
54415-65J01-000
Clamp,parking cable
|
54415-65J01-000 |
— | ||
| replacement | |||||
|
7
|
7
54415-65J02-000 CLAMP,PK CABLE |
54415-65J02-000 |
US $1.92 |
||
|
8
|
8
54490-65J00-000 BRACKET,PARKING CABLE |
54490-65J00-000 |
US $20.79 |
||
|
9
|
9
54497-65J00-000 CAP,PARKING CABLE HOLE |
54497-65J00-000 |
US $3.09 |
||
|
10
|
10
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
