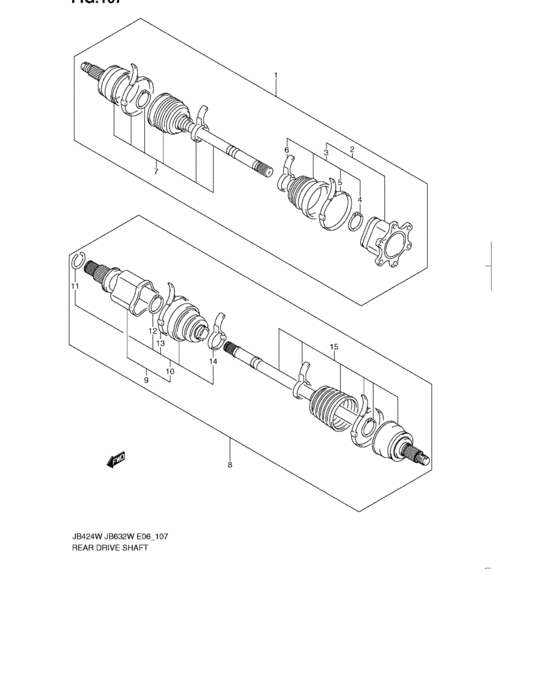

Rear drive shaft (REAR DRIVE SHAFT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44105-79K20-000 SHAFT ASSY,REAR DRIVE,RJB424W |
44105-79K20-000 |
US $760.32 |
||
|
1
|
1
44105-79K00-000 SHAFT ASSY,REAR DRIVE,JB632W |
44105-79K00-000 |
US $1,331.20 |
||
|
2
|
2
44114-79K00-000
JOINT ASSY,DIFF SIDE
|
44114-79K00-000 |
— | ||
| replacement | |||||
|
2
|
2
44114-79K01-000 JOINT ASSY,DIFF SIDE |
44114-79K01-000 |
US $404.80 |
||
|
3
|
3
44120-79K00-000
BOOT SET,DIFF SIDE
|
44120-79K00-000 |
— | ||
| replacement | |||||
|
3
|
3
44120-79K01-000 BOOT SET,DIFF SIDE |
44120-79K01-000 |
US $128.80 |
||
|
4
|
4
44112-79K00-000 CIRCLIP |
44112-79K00-000 |
US $2.72 |
||
|
5
|
5
44127-79K00-000 BOOT CLAMP,BIG |
44127-79K00-000 |
US $11.33 |
||
|
6
|
6
44128-79K00-000 BOOT CLAMP,SMALL |
44128-79K00-000 |
US $11.33 |
||
|
7
|
7
44117-79K20-000
JOINT ASSY,WHL SIDE
JB424W |
44117-79K20-000 |
— | ||
| replacement | |||||
|
7
|
7
44117-79K21-000 JOINT ASSY,WHL SIDEJB424W |
44117-79K21-000 |
US $520.96 |
||
|
7
|
7
44117-79K00-000
JOINT ASSY,WHL SIDE
JB632W |
44117-79K00-000 |
— | ||
| replacement | |||||
|
7
|
7
44117-79K01-000
JOINT ASSY,WHL SIDE
JB632W |
44117-79K01-000 |
— | ||
|
8
|
8
44106-79K20-000 SHAFT ASSY,REAR DRIVE,LJB424W |
44106-79K20-000 |
US $1,150.40 |
||
|
8
|
8
44106-79K00-000 SHAFT ASSY,REAR DRIVE,LJB632W |
44106-79K00-000 |
US $915.20 |
||
|
9
|
9
44115-79K00-000
JOINT ASSY,DIFF SIDE
|
44115-79K00-000 |
— | ||
| replacement | |||||
|
9
|
9
44115-79K01-000 JOINT ASSY,DIFF SIDE |
44115-79K01-000 |
US $481.84 |
||
|
10
|
10
44121-79K00-000
Boot set,diff side
|
44121-79K00-000 |
— | ||
| replacement | |||||
|
10
|
10
44121-79K01-000 BOOT SET,DIFF SIDE |
44121-79K01-000 |
US $206.08 |
||
|
11
|
11
44111-79K00-000 CIRCLIP |
44111-79K00-000 |
US $6.56 |
||
|
12
|
12
44112-79K00-000 CIRCLIP |
44112-79K00-000 |
US $2.72 |
||
|
13
|
13
44127-79K00-000 BOOT CLAMP,BIG |
44127-79K00-000 |
US $11.33 |
||
|
14
|
14
44128-79K00-000 BOOT CLAMP,SMALL |
44128-79K00-000 |
US $11.33 |
||
|
15
|
15
44118-79K20-000
JOINT ASSY,WHL SIDE
JB424W |
44118-79K20-000 |
— | ||
| replacement | |||||
|
15
|
15
44118-79K21-000 JOINT ASSY,WHL SIDEJB424W |
44118-79K21-000 |
US $520.96 |
||
|
15
|
15
44118-79K00-000
JOINT ASSY,WHL SIDE
JB632W |
44118-79K00-000 |
— | ||
| replacement | |||||
|
15
|
15
44118-79K01-000
JOINT ASSY,WHL SIDE
JB632W |
44118-79K01-000 |
— | ||
