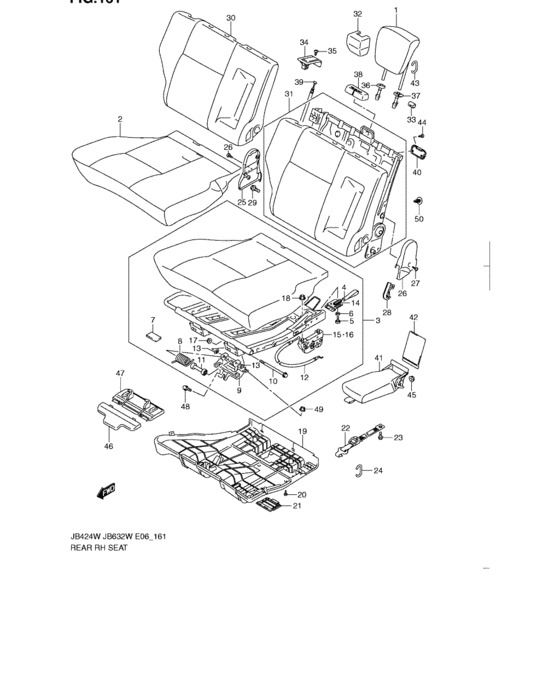

Rear rh seat (REAR RH SEAT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J20-ENB
Headrestraint assy,rr(black)
W/FABRIC SEAT |
86401-66J20-ENB |
— | ||
| replacement | |||||
|
1
|
1
86401-66J21-JVD HEADRESTRAINT,RRW/FABRIC SEAT |
86401-66J21-JVD |
US $126.96 |
||
|
1
|
1
86401-66J20-T6U
Headrestraint assy
W/LEATHER SEAT |
86401-66J20-T6U |
— | ||
| replacement | |||||
|
1
|
1
86401-76K20-T6U HEADRESTRAINT ASSYW/LEATHER SEAT |
86401-76K20-T6U |
US $126.96 |
||
|
2
|
2
87180-66J01-FCE
Trim comp,rr cush,r
W/FABRIC SEAT |
87180-66J01-FCE |
— | ||
| replacements | |||||
|
2
|
2
87180-66J01-JVC
TRIM,RR CUSHION,R
W/FABRIC SEAT |
87180-66J01-JVC |
— | ||
|
2
|
2
87180-66J02-JVC TRIM,RR CUSHION,RW/FABRIC SEAT |
87180-66J02-JVC |
US $296.24 |
||
|
2
|
2
87180-66J01-FJM
Trim comp,rr cush,r
W/LEATHER SEAT |
87180-66J01-FJM |
— | ||
| replacements | |||||
|
2
|
2
87180-76K00-JVK
TRIM,RR CUSHION,R
W/LEATHER SEAT |
87180-76K00-JVK |
— | ||
|
2
|
2
87180-76K01-JVK Trim,rr Cushion,rW/LEATHER SEAT |
87180-76K01-JVK |
US $531.52 |
||
|
3
|
3
87105-66J01-000
Cushion s/assy,rr,r
|
87105-66J01-000 |
— | ||
| replacement | |||||
|
3
|
3
87105-66J02-000 CUSHION S/ASSY,RR,R |
87105-66J02-000 |
US $630.08 |
||
|
4
|
4
87141-66J00-000 LEVER,RR LOCK |
87141-66J00-000 |
US $21.34 |
||
|
5
|
5
87142-66J00-000 BOLT,RR LOCK LEVER |
87142-66J00-000 |
US $6.96 |
||
|
6
|
6
87143-66J00-000 WASHER,RR LOCK LEVER |
87143-66J00-000 |
US $5.67 |
||
|
7
|
7
87144-66J00-000 SILENCER,RR CUSH |
87144-66J00-000 |
US $9.16 |
||
|
8
|
8
87148-79K00-000 SPRING,RR CUSH LEG |
87148-79K00-000 |
US $35.88 |
||
|
9
|
9
87150-66J00-000 LEG,RR CUSH |
87150-66J00-000 |
US $32.69 |
||
|
10
|
10
87153-63J01-000 BOLT,RR CUSH LEG |
87153-63J01-000 |
US $13.73 |
||
|
11
|
11
87149-66J00-000
COLLAR,SPRING
|
87149-66J00-000 |
— | ||
|
12
|
12
87154-66J00-000 CABLE,RR LOCK |
87154-66J00-000 |
US $27.78 |
||
|
13
|
13
87157-66J00-000 BUSH,RR CUSH LEG |
87157-66J00-000 |
US $2.24 |
||
|
14
|
14
87159-66J02-000 BUSH,RR LOCK LEVER |
87159-66J02-000 |
US $5.12 |
||
|
15
|
15
87460-66J00-000
Lock assy,rr cush inside,r
|
87460-66J00-000 |
— | ||
| replacement | |||||
|
15
|
15
87460-66J01-000 LOCK ASSY,RR CUSH INSIDE,R |
87460-66J01-000 |
US $106.72 |
||
|
16
|
16
87460-66J10-000
Lock assy,rr cush outside,r
|
87460-66J10-000 |
— | ||
| replacement | |||||
|
16
|
16
87460-66J11-000 LOCK ASSY,RR CUSH OUTSIDE,R |
87460-66J11-000 |
US $100.46 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
18
|
18
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
19
|
19
87175-66J00-5PK COVER,RR CUSH BOTTOM,R |
87175-66J00-5PK |
US $87.22 |
||
|
20
|
20
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
21
|
21
87176-66J00-5PK CAP,RR CUSH BOTTOM,R |
87176-66J00-5PK |
US $13.73 |
||
|
22
|
22
87270-66J00-000 BAND,RR SEAT |
87270-66J00-000 |
US $23.18 |
||
|
23
|
23
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
24
|
24
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
25
|
25
87221-66J00-5PK COVER,RR OUTSIDE,R |
87221-66J00-5PK |
US $8.17 |
||
|
25
|
25
87221-66J00-R8H
COVER,RCLNG OUTSIDE,R
|
87221-66J00-R8H |
— | ||
|
26
|
26
87241-79K00-5PK COVER,RR RCLNG INSIDE,R |
87241-79K00-5PK |
US $6.96 |
||
|
26
|
26
87241-79K00-R8H
COVER,RR RCLNG INSIDE,R
|
87241-79K00-R8H |
— | ||
|
27
|
27
87242-79K00-000 PROTECTOR,RR RCLNG INSIDE,R |
87242-79K00-000 |
US $5.92 |
||
|
28
|
28
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
01551-1225A-000 Bolt |
01551-1225A-000 |
US $1.28 |
||
|
30
|
30
87380-66J00-FCE
Trim comp,rr back,r
W/FABRIC SEAT |
87380-66J00-FCE |
— | ||
| replacements | |||||
|
30
|
30
87380-66J01-JVC
TRIM,RR BACK,R
W/FABRIC SEAT |
87380-66J01-JVC |
— | ||
|
30
|
30
87380-66J02-JVC Trim,rr Back,rW/FABRIC SEAT |
87380-66J02-JVC |
US $255.76 |
||
|
30
|
30
87380-66J00-FJM
Trim comp,rr back,r
W/LEATHER SEAT |
87380-66J00-FJM |
— | ||
| replacements | |||||
|
30
|
30
87380-76K00-JVK
TRIM,RR BACK,R
W/LEATHER SEAT |
87380-76K00-JVK |
— | ||
|
30
|
30
87380-76K01-JVK Trim,rr Back,rW/LEATHER SEAT |
87380-76K01-JVK |
US $608.96 |
||
|
31
|
31
87305-79K00-000 BACK S/ASSY,RR,R |
87305-79K00-000 |
US $1,020.80 |
||
|
32
|
32
87361-79K00-000 COVER,RR ELR |
87361-79K00-000 |
US $19.87 |
||
|
33
|
33
87359-66J00-000 CAP |
87359-66J00-000 |
US $3.83 |
||
|
34
|
34
87290-65J00-5PK HANDLE,RCLNG |
87290-65J00-5PK |
from US $6.92 |
||
|
35
|
35
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
36
|
36
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
36
|
36
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
36
|
36
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
37
|
37
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
37
|
37
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
37
|
37
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
38
|
38
87227-66J00-5PK COVER,SHOULDER ANCHOR |
87227-66J00-5PK |
US $6.96 |
||
|
39
|
39
87294-66J00-000 CABLE,RCLNG RELEASE |
87294-66J00-000 |
US $12.14 |
||
|
40
|
40
87428-65DA0-5PK STRIKER,TONNEAU COVER |
87428-65DA0-5PK |
US $7.68 |
||
|
41
|
41
87501-66J00-U7S
ARMREST ASSY,RR
W/FABRIC SEAT |
87501-66J00-U7S |
— | ||
| replacement | |||||
|
41
|
41
87501-66J02-U7S Armrest Assy,rrW/FABRIC SEAT |
87501-66J02-U7S |
US $159.34 |
||
|
41
|
41
87501-66J00-V4V
Armrest assy,rr
W/LEATHER SEAT |
87501-66J00-V4V |
— | ||
| replacements | |||||
|
41
|
41
87501-76K00-V4V
ARMREST ASSY,RR
W/LEATHER SEAT |
87501-76K00-V4V |
— | ||
|
41
|
41
87501-76K02-V4V Armrest Assy,rrW/LEATHER SEAT |
87501-76K02-V4V |
US $246.56 |
||
|
42
|
42
87541-66J00-5PK COVER,RR ARMREST HOLE |
87541-66J00-5PK |
US $10.12 |
||
|
43
|
43
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
44
|
44
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
45
|
45
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
46
|
46
87491-66J00-5PK COVER,RR CUSH HINGE FR |
87491-66J00-5PK |
from US $11.52 |
||
|
47
|
47
87492-66J00-5PK COVER,RR CUSH HINGE RR |
87492-66J00-5PK |
US $19.32 |
||
|
48
|
48
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
49
|
49
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
50
|
50
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
