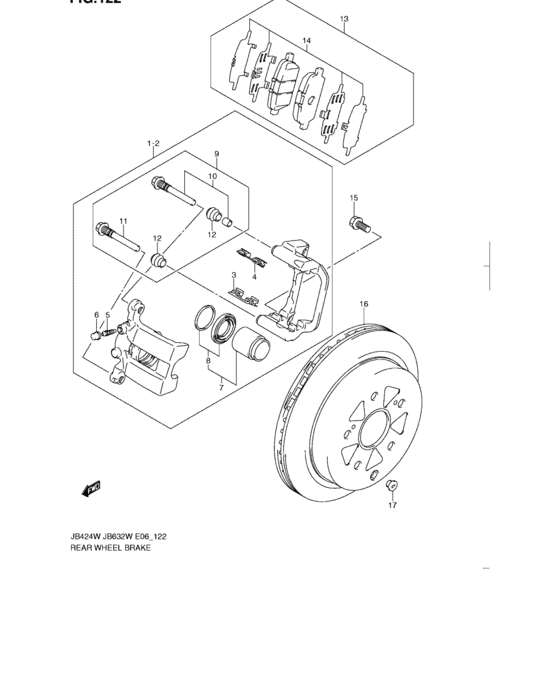

Rear wheel brake (REAR WHEEL BRAKE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55401-77K00-999
Caliper,rear brake,r
|
55401-77K00-999 |
— | ||
| replacement | |||||
|
1
|
1
55401-77K02-999 CALIPER,RR BRAKE,R |
55401-77K02-999 |
US $563.20 |
||
|
2
|
2
55402-77K00-999
Caliper,rear brake,l
|
55402-77K00-999 |
— | ||
| replacement | |||||
|
2
|
2
55402-77K02-999 CALIPER,RR BRAKE,L |
55402-77K02-999 |
US $563.20 |
||
|
3
|
3
55442-77K00-000 CLIP,PAD |
55442-77K00-000 |
from US $8.69 |
||
|
4
|
4
55443-77K00-000 CLIP,PAD |
55443-77K00-000 |
US $9.02 |
||
|
5
|
5
55461-77K00-000 SCREW,BLEEDER |
55461-77K00-000 |
US $13.60 |
||
|
6
|
6
55462-77K00-000 CAP,BLEEDER |
55462-77K00-000 |
US $9.28 |
||
|
7
|
7
55890-77K00-000
Piston/seal set
|
55890-77K00-000 |
— | ||
| replacement | |||||
|
7
|
7
55890-77K02-000 PISTON / SEAL SET |
55890-77K02-000 |
from US $49.59 |
||
|
8
|
8
55880-77K00-000
SEAL SET,PISTON
|
55880-77K00-000 |
— | ||
| replacement | |||||
|
8
|
8
55880-77K01-000 SEAL SET,PISTON |
55880-77K01-000 |
from US $11.20 |
||
|
9
|
9
55900-77K00-000
SLIDE PIN BOOT SET
|
55900-77K00-000 |
— | ||
| replacement | |||||
|
9
|
9
55900-77K01-000 SLIDE PIN BOOT SET |
55900-77K01-000 |
from US $26.86 |
||
|
10
|
10
55475-77K00-000 PIN SET,SLIDE |
55475-77K00-000 |
from US $13.69 |
||
|
11
|
11
55472-77K00-000 PIN,GUIDE |
55472-77K00-000 |
from US $8.64 |
||
|
12
|
12
55474-77K00-000 BOOT,PIN |
55474-77K00-000 |
from US $7.65 |
||
|
13
|
13
55800-77K00-000
Pad set,disc brake
|
55800-77K00-000 |
— | ||
| replacement | |||||
|
13
|
13
55800-77K05-000 PAD SET,DISC BRAKE |
55800-77K05-000 |
US $121.60 |
||
|
14
|
14
55780-77K00-000
Shim set,anti noise
|
55780-77K00-000 |
— | ||
| replacement | |||||
|
14
|
14
55780-77K03-000 SHIM SET,ANTI NOISE |
55780-77K03-000 |
US $46 |
||
|
15
|
15
09117-12012-000 BOLT(12X32) |
09117-12012-000 |
from US $2.08 |
||
|
16
|
16
55611-77K00-000
Disc,rear brake
|
55611-77K00-000 |
— | ||
| replacement | |||||
|
16
|
16
55611-77K01-000 DISC,RR BRAKE |
55611-77K01-000 |
from US $96.48 |
||
|
17
|
17
09250-10020-000 PLUG(OD:16) |
09250-10020-000 |
US $14.70 |
||
