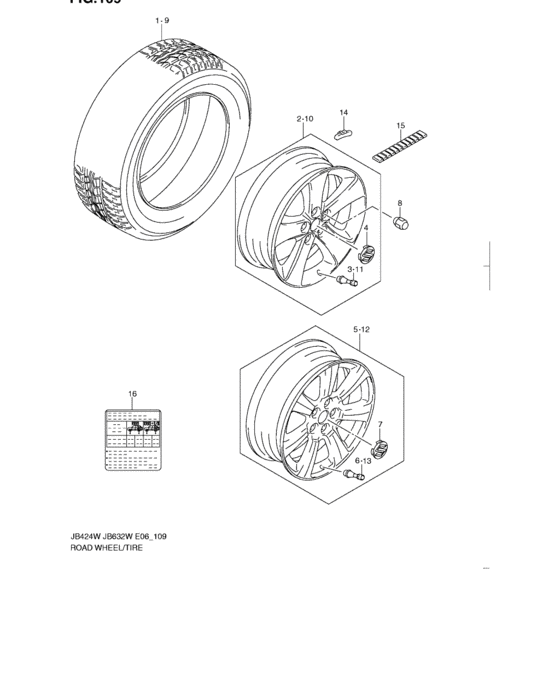

Road wheel/tire (ROAD WHEEL/TIRE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-78K00-000
TIRE(225/65R17)
|
43110-78K00-000 |
— | ||
|
1
|
1
43110-79K00-000
Tire(225/60r18)
|
43110-79K00-000 |
— | ||
| replacement | |||||
|
1
|
1
43110-79K01-000
TIRE(225/60R18)
|
43110-79K01-000 |
— | ||
|
2
|
2
43201-78800-27S WHEEL SET,AL(17X6 1/2J)AL WHEEL:17 INCH,MODEL CODE:78K0 |
43201-78800-27S |
US $450.56 |
||
|
2
|
2
43201-78810-27S WHEEL SET,AL(17X6 1/2J)AL WHEEL:17 INCH,MODEL CODE:78K1 |
43201-78810-27S |
US $450.56 |
||
|
3
|
3
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
4
|
4
43252-63J10-0PG
CAP,WHEEL CTR(CHROME)
|
43252-63J10-0PG |
— | ||
| replacement | |||||
|
4
|
4
43252-63J11-0PG
Cap,Wheel Ctr
|
43252-63J11-0PG |
— | ||
|
5
|
5
43201-79800-27S
WHEEL SET,AL(18X7J)
AL WHEEL:18 INCH |
43201-79800-27S |
— | ||
|
6
|
6
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
7
|
7
43252-63J10-0PG
CAP,WHEEL CTR(CHROME)
|
43252-63J10-0PG |
— | ||
| replacement | |||||
|
7
|
7
43252-63J11-0PG
Cap,Wheel Ctr
|
43252-63J11-0PG |
— | ||
|
8
|
8
09159-12057-000 NUT |
09159-12057-000 |
from US $2.89 |
||
|
9
|
9
43110-78K00-000
TIRE(225/65R17)
W/SPARE WHEEL:17 INCH |
43110-78K00-000 |
— | ||
|
9
|
9
43110-79K00-000
Tire(225/60r18)
W/SPARE WHEEL:18 INCH |
43110-79K00-000 |
— | ||
| replacement | |||||
|
9
|
9
43110-79K01-000
TIRE(225/60R18)
W/SPARE WHEEL:18 INCH |
43110-79K01-000 |
— | ||
|
10
|
10
43201-78820-27S
Wheel set,al(17x6 1/2j)
AL WHEEL:17 INCH,MODEL CODE:78K0 |
43201-78820-27S |
— | ||
| replacement | |||||
|
10
|
10
43201-78800-27S WHEEL SET,AL(17X6 1/2J)AL WHEEL:17 INCH,MODEL CODE:78K0 |
43201-78800-27S |
US $450.56 |
||
|
10
|
10
43201-78830-27S
Wheel set, spare al
AL WHEEL:17 INCH,MODEL CODE:78K1 |
43201-78830-27S |
— | ||
| replacement | |||||
|
10
|
10
43201-78810-27S WHEEL SET,AL(17X6 1/2J)AL WHEEL:17 INCH,MODEL CODE:78K1 |
43201-78810-27S |
US $450.56 |
||
|
11
|
11
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
12
|
12
43201-79810-27S
Wheel set,al(18x7j)
AL WHEEL:18 INCH |
43201-79810-27S |
— | ||
| replacement | |||||
|
12
|
12
43201-79800-27S
WHEEL SET,AL(18X7J)
AL WHEEL:18 INCH |
43201-79800-27S |
— | ||
|
13
|
13
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
14
|
14
43221-50J10-000 WEIGHT,WHEEL BALANCE 5G |
43221-50J10-000 |
US $2.28 |
||
|
14
|
14
43222-50J10-000 WEIGHT,WHEEL BALANCE 10G |
43222-50J10-000 |
US $2.83 |
||
|
14
|
14
43223-50J10-000 WEIGHT,WHEEL BALANCE 15G |
43223-50J10-000 |
US $3.09 |
||
|
14
|
14
43224-50J10-000 WEIGHT,WHEEL BALANCE 20G |
43224-50J10-000 |
US $3.35 |
||
|
14
|
14
43225-50J10-000 WEIGHT,WHEEL BALANCE 25G |
43225-50J10-000 |
US $3.57 |
||
|
14
|
14
43226-50J10-000 WEIGHT,WHEEL BALANCE 30G |
43226-50J10-000 |
US $3.79 |
||
|
14
|
14
43227-50J10-000 WEIGHT,WHEEL BALANCE 35G |
43227-50J10-000 |
US $4.01 |
||
|
14
|
14
43228-50J10-000 WEIGHT,WHEEL BALANCE 40G |
43228-50J10-000 |
US $4.23 |
||
|
14
|
14
43229-50J10-000 WEIGHT,WHEEL BALANCE 45G |
43229-50J10-000 |
US $4.45 |
||
|
15
|
15
43221-59J00-000 WEIGHT,WHEEL BALANCE 5G |
43221-59J00-000 |
US $2.28 |
||
|
15
|
15
43221-59J10-000 WEIGHT,WHEEL BALANCE 10G |
43221-59J10-000 |
from US $2.83 |
||
|
15
|
15
43221-59J20-000 WEIGHT,WHEEL BALANCE 15G |
43221-59J20-000 |
US $3.09 |
||
|
15
|
15
43221-59J30-000 WEIGHT,WHEEL BALANCE 20G |
43221-59J30-000 |
US $3.35 |
||
|
15
|
15
43221-59J40-000 WEIGHT,WHEEL BALANCE 25G |
43221-59J40-000 |
US $3.57 |
||
|
15
|
15
43221-59J50-000 WEIGHT,WHEEL BALANCE 30G |
43221-59J50-000 |
US $3.79 |
||
|
15
|
15
43221-59J60-000 WEIGHT,WHEEL BALANCE 35G |
43221-59J60-000 |
US $4.01 |
||
|
15
|
15
43221-59J70-000 WEIGHT,WHEEL BALANCE 40G |
43221-59J70-000 |
US $4.23 |
||
|
15
|
15
43221-59J80-000 WEIGHT,WHEEL BALANCE 45G |
43221-59J80-000 |
US $4.45 |
||
|
15
|
15
43221-59J90-000 WEIGHT,WHEEL BALANCE 50G |
43221-59J90-000 |
US $4.75 |
||
|
16
|
16
79161-77K90-000
PLACARD,TIRE INFORMATION
JB424W |
79161-77K90-000 |
— | ||
|
16
|
16
79161-79K80-000
PLACARD,TIRE INFORMATION
JB632W |
79161-79K80-000 |
— | ||
