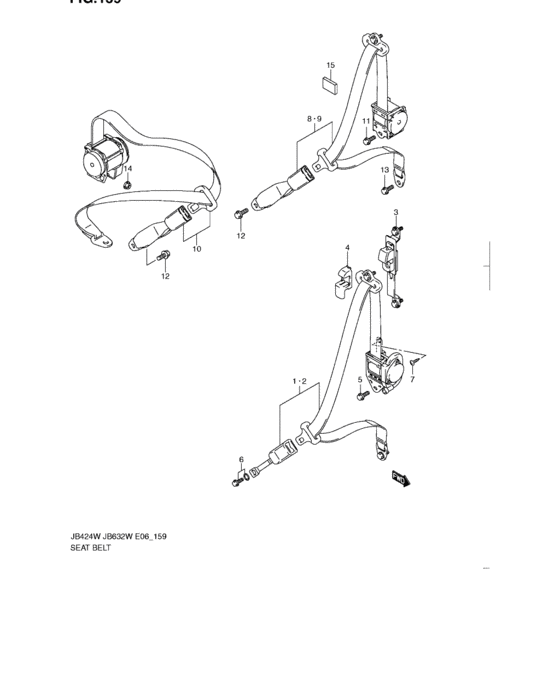

Seat belt (SEAT BELT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-65J12-BHE
Belt assy,fr,r
|
84901-65J12-BHE |
— | ||
| replacements | |||||
|
1
|
1
84901-65J13-BHE
BELT ASSY,FR,R
|
84901-65J13-BHE |
— | ||
|
1
|
1
84901-65J14-BHE Belt Assy,fr,r |
84901-65J14-BHE |
US $393.76 |
||
|
2
|
2
84902-65J02-BHE
Belt assy,fr,l
|
84902-65J02-BHE |
— | ||
| replacements | |||||
|
2
|
2
84902-65J03-BHE
BELT ASSY,FR,L
|
84902-65J03-BHE |
— | ||
|
2
|
2
84902-65J04-BHE Belt Assy,fr,l |
84902-65J04-BHE |
US $393.76 |
||
|
3
|
3
84990-79K00-6GS ADJUSTER ASSY,FR SHOULDER(GRAY |
84990-79K00-6GS |
US $50.42 |
||
|
4
|
4
84991-79K00-6GS COVER,SHOULDER ADJUSTER |
84991-79K00-6GS |
US $6.84 |
||
|
5
|
5
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
6
|
6
09117-11002-000 BOLT(11X20) |
09117-11002-000 |
US $20.20 |
||
|
7
|
7
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
8
|
8
84904-65J11-5PK
Belt assy,rr,r
|
84904-65J11-5PK |
— | ||
| replacements | |||||
|
8
|
8
84904-77K00-5PK
BELT ASSY,RR,R
|
84904-77K00-5PK |
— | ||
|
8
|
8
84904-77K01-5PK Belt Assy,rr,r |
84904-77K01-5PK |
US $193.20 |
||
|
9
|
9
84905-65J11-5PK
Belt assy,rr,l
|
84905-65J11-5PK |
— | ||
| replacements | |||||
|
9
|
9
84905-77K00-5PK
BELT ASSY,RR,L
|
84905-77K00-5PK |
— | ||
|
9
|
9
84905-77K01-5PK Belt Assy,rr,l |
84905-77K01-5PK |
US $193.20 |
||
|
10
|
10
84906-65J00-5PK
Belt assy,rr center(black)
|
84906-65J00-5PK |
— | ||
| replacements | |||||
|
10
|
10
84906-77K00-5PK
BELT ASSY,RR CENTER
|
84906-77K00-5PK |
— | ||
|
10
|
10
84906-77K01-5PK Belt Assy,rr Ctr |
84906-77K01-5PK |
US $193.20 |
||
|
11
|
11
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle |
09103-11001-000 |
US $18 |
||
|
12
|
12
09103-11007-000 BOLT(7/16X20) |
09103-11007-000 |
US $19.10 |
||
|
13
|
13
09111-11003-000 BOLT(11X17.5) |
09111-11003-000 |
US $19.10 |
||
|
14
|
14
09159-11002-000 NUT |
09159-11002-000 |
US $19.10 |
||
|
15
|
15
84926-81AA0-000 PAD,FRONT ELR |
84926-81AA0-000 |
US $5.04 |
||
