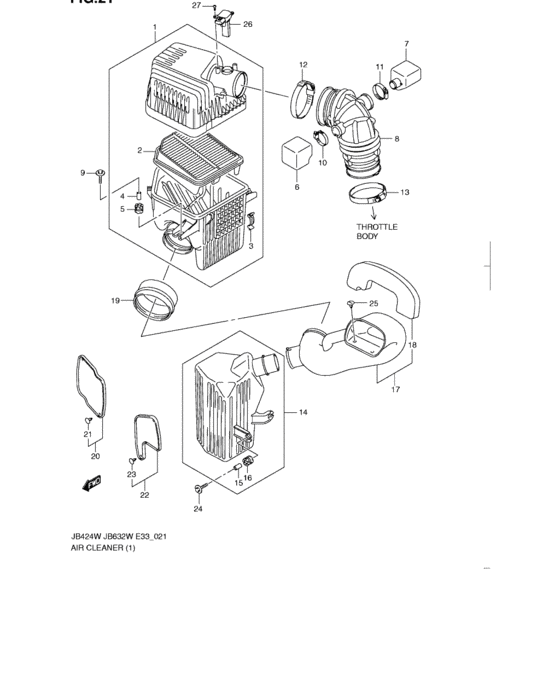

Air cleaner (JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-78K00-000 CLEANER ASSY,AIR |
13700-78K00-000 |
US $218.96 |
||
|
2
|
2
13780-78K00-000 ELEMENT,AIR CLEANER |
13780-78K00-000 |
from US $28.55 |
||
|
3
|
3
13755-79K00-000 CLIP,AIR CLEANER |
13755-79K00-000 |
US $6.08 |
||
|
4
|
4
13877-65D00-000 COLLAR,7.6X10X19.3 |
13877-65D00-000 |
US $3.04 |
||
|
5
|
5
13878-65D00-000 CUSHION,12.5X22X19.5 |
13878-65D00-000 |
US $2.74 |
||
|
6
|
6
13761-78K10-000 RESONATOR,NO.2 |
13761-78K10-000 |
US $24 |
||
|
7
|
7
13761-78K20-000 RESONATOR,NO.3 |
13761-78K20-000 |
US $12.80 |
||
|
8
|
8
13881-78K00-000 HOSE,AIR CLEANER OUTLET |
13881-78K00-000 |
from US $39.20 |
||
|
9
|
9
09116-06172-000 BOLT(6X30)Bolt (6x30) |
09116-06172-000 |
from US $1.44 |
||
|
10
|
10
09402-28511-000 CLAMP |
09402-28511-000 |
from US $2.89 |
||
|
11
|
11
09402-38511-000 CLAMP |
09402-38511-000 |
from US $4.06 |
||
|
12
|
12
09402-82511-000 CLAMP |
09402-82511-000 |
US $65.90 |
||
|
13
|
13
09402-82511-000 CLAMP |
09402-82511-000 |
US $65.90 |
||
|
14
|
14
13761-78K00-000 RESONATOR |
13761-78K00-000 |
from US $37.06 |
||
|
15
|
15
13877-65D00-000 COLLAR,7.6X10X19.3 |
13877-65D00-000 |
US $3.04 |
||
|
16
|
16
13878-65D00-000 CUSHION,12.5X22X19.5 |
13878-65D00-000 |
US $2.74 |
||
|
17
|
17
13820-78K00-000 PIPE,AIR CLNR SUCTION |
13820-78K00-000 |
from US $34.47 |
||
|
18
|
18
13822-78K00-000 SEAL |
13822-78K00-000 |
US $14.56 |
||
|
19
|
19
13825-79K00-000 JOINT,SUCTION PIPE |
13825-79K00-000 |
US $12.16 |
||
|
20
|
20
13840-65J00-000 COVER,LAMP SUPPORT HOLE,R |
13840-65J00-000 |
from US $5.92 |
||
|
21
|
21
09409-04304-000 CLIP |
09409-04304-000 |
from US $1.13 |
||
|
22
|
22
13850-65J00-000 COVER,LAMP SUPPORT HOLE,L |
13850-65J00-000 |
US $6.62 |
||
|
23
|
23
09409-04304-000 CLIP |
09409-04304-000 |
from US $1.13 |
||
|
24
|
24
09116-06172-000 BOLT(6X30)Bolt (6x30) |
09116-06172-000 |
from US $1.44 |
||
|
25
|
25
09409-06330-000 CLIP |
09409-06330-000 |
US $14.70 |
||
|
26
|
26
13800-54L00-000 SENSOR ASSY, MAF |
13800-54L00-000 |
from US $290.27 |
||
|
27
|
27
03511-0412A-000 SCREW |
03511-0412A-000 |
from US $0.76 |
