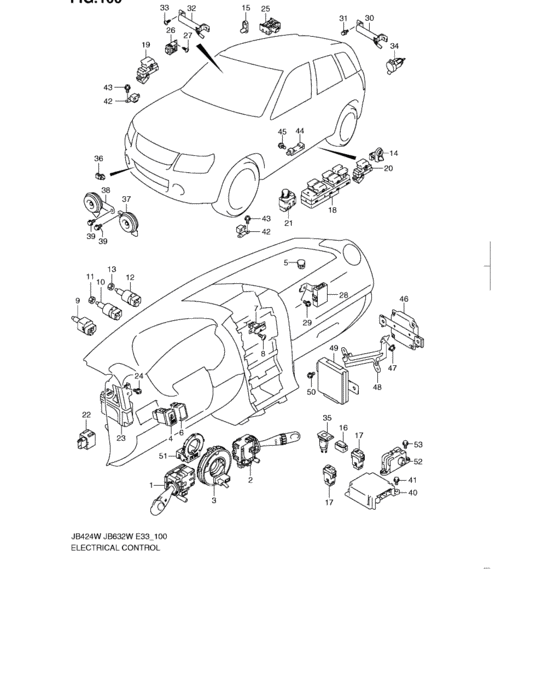

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37210-79K00-000
Switch assy,lighting & turn
|
37210-79K00-000 |
— | ||
| replacement | |||||
|
1
|
1
37210-79K01-000 SWITCH ASSY,LIGHTING&TURN |
37210-79K01-000 |
US $139.84 |
||
|
2
|
2
37310-62J31-000 SWITCH ASSY,WIPER&WASHER |
37310-62J31-000 |
US $141.80 |
||
|
3
|
3
37480-64J00-000 CABLE ASSY,CONTACT COIL |
37480-64J00-000 |
US $162.79 |
||
|
4
|
4
37270-62J00-000 SWITCH ASSY,FR FOGW/FRONT FOG LAMP |
37270-62J00-000 |
from US $32.47 |
||
|
5
|
5
38680-50J00-000 SENSOR ASSY,AUTO LIGHT |
38680-50J00-000 |
US $72 |
||
|
6
|
6
37285-62J00-000 CAP,OPTION SW HOLE |
37285-62J00-000 |
US $2.56 |
||
|
7
|
7
37430-64J00-5PK
Switch assy,hazard(black)
|
37430-64J00-5PK |
— | ||
| replacement | |||||
|
7
|
7
37430-64J01-5PK SWITCH ASSY,HAZARD WARNING |
37430-64J01-5PK |
from US $24.93 |
||
|
7
|
7
37430-64J00-R8R
Switch assy,hazard warning
|
37430-64J00-R8R |
— | ||
| replacement | |||||
|
7
|
7
37430-64J01-R8R
SWITCH ASSY,HAZARD
|
37430-64J01-R8R |
— | ||
|
8
|
8
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
9
|
9
37740-75H10-000
SWITCH ASSY,STOP LAMP
|
37740-75H10-000 |
— | ||
| replacements | |||||
|
9
|
9
37741-75H10-000 Switch Assy,stop Lamp |
37741-75H10-000 |
from US $14.15 |
||
|
9
|
9
37742-75H10-000 Bush,stop Lamp Sw |
37742-75H10-000 |
from US $3.80 |
||
|
10
|
10
37970-68J00-000 SWITCH ASSY,CLUTCHMT |
37970-68J00-000 |
US $27.36 |
||
|
11
|
11
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
12
|
12
37970-64J00-000 SWITCH ASSY,CLUTCHMT |
37970-64J00-000 |
US $31.92 |
||
|
13
|
13
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
14
|
14
37670-68H10-000
Switch assy,door
|
37670-68H10-000 |
— | ||
| replacement | |||||
|
14
|
14
37670-57L00-000 SWITCH ASSY,DOOR |
37670-57L00-000 |
from US $9.79 |
||
|
15
|
15
37670-79A10-000 SWITCH ASSY,DOOR09 MODEL |
37670-79A10-000 |
from US $13.79 |
||
|
15
|
15
37670-79A20-000 SWITCH ASSY,DOOR09 MODEL:SEE NOTE,10 MODEL |
37670-79A20-000 |
from US $9.95 |
||
|
16
|
16
37285-50J01-000 CAP,OPTION SWITCH HOLE |
37285-50J01-000 |
US $3.35 |
||
|
17
|
17
37850-64J00-000
Switch assy,seat heater
W/SEAT HEATER |
37850-64J00-000 |
— | ||
| replacement | |||||
|
17
|
17
37850-64J02-000 SWITCH ASSY,SEAT HEATERW/SEAT HEATER |
37850-64J02-000 |
US $74.40 |
||
|
18
|
18
37990-64J20-000 SWITCH ASSY,P/W MASTER |
37990-64J20-000 |
US $111.56 |
||
|
19
|
19
37995-64J00-000 SWITCH ASSY,P/W SUB |
37995-64J00-000 |
US $46.19 |
||
|
20
|
20
37995-62J00-000 SWITCH ASSY,P/W SUB |
37995-62J00-000 |
from US $16.92 |
||
|
21
|
21
37950-62J00-000
SWITCH ASSY,MIRROR
|
37950-62J00-000 |
— | ||
| replacement | |||||
|
21
|
21
37950-62J01-000 SWITCH ASSY,MIRROR |
37950-62J01-000 |
from US $19.24 |
||
|
22
|
22
38610-84F21-000 RELAY,TURN SIGNAL |
38610-84F21-000 |
US $59.62 |
||
|
23
|
23
36770-76K10-000
Controller assy,body elec
|
36770-76K10-000 |
— | ||
| replacements | |||||
|
23
|
23
36770-76K12-000
CONTROLLER ASSY,BODY ELEC
|
36770-76K12-000 |
— | ||
|
23
|
23
36770-76K13-000 CONTROLLER ASSY,BODY ELEC |
36770-76K13-000 |
US $397.44 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
25
|
25
37880-64J00-6GS SWITCH ASSY,SUN ROOFW/SUN ROOF |
37880-64J00-6GS |
US $41.58 |
||
|
26
|
26
37190-64J20-000 RECEIVER ASSY,KEYLESSN/KEYLESS START |
37190-64J20-000 |
US $200.56 |
||
|
27
|
27
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
28
|
28
37171-64JP0-000
Controller assy,keyless start
W/KEYLESS START |
37171-64JP0-000 |
— | ||
| replacement | |||||
|
28
|
28
37171-64JP1-000 CONTROLLER ASSY,KLSW/KEYLESS START |
37171-64JP1-000 |
US $345.92 |
||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust W/KEYLESS START |
02162-0616B-000 |
from US $0.80 |
||
|
30
|
30
37175-62J00-000 ANTENNA ASSY,KLS INSIDEW/KEYLESS START,W/KEYLESS START |
37175-62J00-000 |
US $39.01 |
||
|
31
|
31
01560-0612A-000 BoltW/KEYLESS START |
01560-0612A-000 |
US $12.50 |
||
|
32
|
32
37175-64J00-000 ANTENNA ASSY,KLS INSIDEW/KEYLESS START,W/KEYLESS START |
37175-64J00-000 |
US $39.01 |
||
|
33
|
33
03141-0512A-000 SCREWScrew, belt cooling duct W/KEYLESS START |
03141-0512A-000 |
from US $0.76 |
||
|
34
|
34
39410-60A01-000 SOCKET ASSY |
39410-60A01-000 |
US $33.60 |
||
|
35
|
35
39410-64J10-5PK SOCKET ASSY |
39410-64J10-5PK |
from US $21.90 |
||
|
36
|
36
95643-58J00-000 SENSOR,AIR TEMP |
95643-58J00-000 |
from US $21.24 |
||
|
37
|
37
38500-63J00-000
Horn assy
|
38500-63J00-000 |
— | ||
| replacement | |||||
|
37
|
37
38500-63J01-000 HORN ASSY,LOW PITCHED |
38500-63J01-000 |
US $45.60 |
||
|
38
|
38
38500-65J31-000 HORN ASSY |
38500-65J31-000 |
US $61.46 |
||
|
39
|
39
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
US $15.10 |
||
|
40
|
40
38910-78K00-000 CONTROLLER ASSY,A/B |
38910-78K00-000 |
US $1,020.80 |
||
|
41
|
41
09115-06003-000 BOLT(6X16) |
09115-06003-000 |
US $10.70 |
||
|
42
|
42
38930-51K00-000 SENSOR ASSY,FORWARD |
38930-51K00-000 |
US $208 |
||
|
43
|
43
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
44
|
44
38930-51K10-000 SENSOR ASSY,SIDE |
38930-51K10-000 |
US $129.54 |
||
|
45
|
45
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
|
47
|
47
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
50
|
50
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
51
|
51
37440-64J10-000 SENSOR ASSY,ANGLE |
37440-64J10-000 |
US $726.40 |
||
|
52
|
52
33945-68K00-000 SENSOR ASSY,YAW2WD |
33945-68K00-000 |
US $542.08 |
||
|
53
|
53
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.80 |
||
