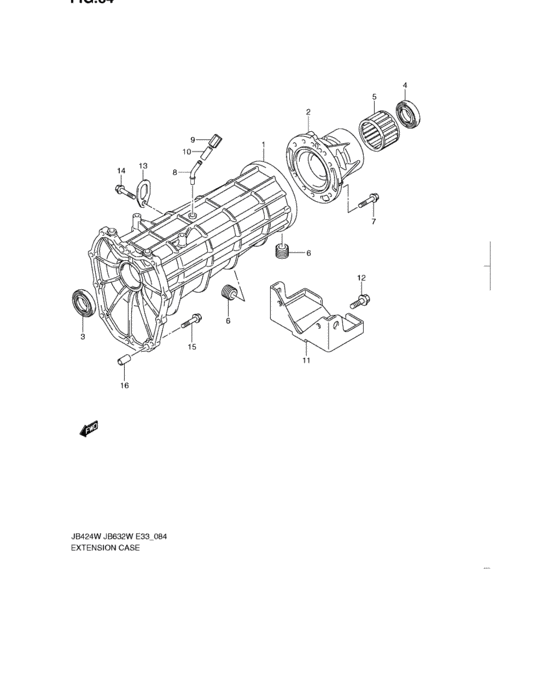

Extension case (2WD) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-66J50-000 CASE,EXTENSION FR |
29511-66J50-000 |
US $412.16 |
||
|
2
|
2
29531-66J51-000
CASE,EXTENSION,RR
|
29531-66J51-000 |
— | ||
|
3
|
3
29283-66J00-000 SEAL,INPUT GEAR |
29283-66J00-000 |
from US $10.58 |
||
|
4
|
4
29283-66J10-000
SEAL,RR OUTPUT SHAFT
|
29283-66J10-000 |
— | ||
|
5
|
5
29934-66J00-000
BEARING,RR OUTPUT NDL
|
29934-66J00-000 |
— | ||
|
6
|
6
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
6
|
6
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
7
|
7
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
8
|
8
24821-59J00-000 UNION,BREATHER |
24821-59J00-000 |
US $6.56 |
||
|
9
|
9
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
10
|
10
09352-70113-600
HOSE(7X11X600)
L:600->40 |
09352-70113-600 |
— | ||
| replacement | |||||
|
10
|
10
09352-70119-600 Hose(7X11X600)L:600->40 |
09352-70119-600 |
from US $4.64 |
||
|
11
|
11
29553-66J70-000 DAMPER,T/F MASS |
29553-66J70-000 |
US $161.55 |
||
|
12
|
12
01550-1025C-000 Bolt |
01550-1025C-000 |
US $17.70 |
||
|
13
|
13
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
16
|
16
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
