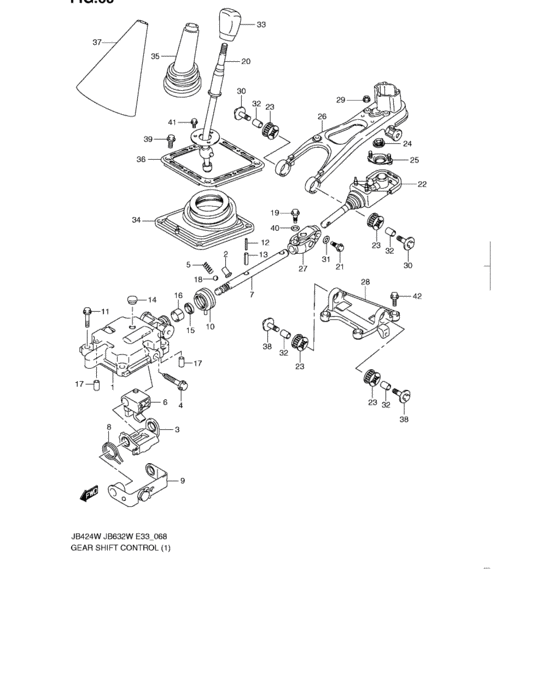

Gear shift control (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-76J00-000 CASE,GEAR SHIFT LEVER |
25121-76J00-000 |
from US $47.12 |
||
|
2
|
2
25250-77A00-000 LOCATING |
25250-77A00-000 |
US $6.29 |
||
|
3
|
3
25310-84A20-000 PLATE,GEAR SHF INTERLOCK |
25310-84A20-000 |
US $21.16 |
||
|
4
|
4
25321-84A00-000 BOLT,GEAR SHIFT STOP |
25321-84A00-000 |
US $3.75 |
||
|
5
|
5
25415-77D00-000 SPRING,GEAR SHF LOCATING |
25415-77D00-000 |
US $1.92 |
||
|
6
|
6
25541-84A21-000 ARM,GEAR SHIFT&SELECT |
25541-84A21-000 |
US $41.58 |
||
|
7
|
7
25571-78K00-000 SHAFT,GEAR SHIFT&SELECT |
25571-78K00-000 |
US $26.13 |
||
|
8
|
8
25576-84A00-000 SPRING,GEAR SELECT RETURN |
25576-84A00-000 |
US $2.61 |
||
|
9
|
9
25580-84A01-000 PLATE,REV GR SHIFT LIMIT |
25580-84A01-000 |
US $28.34 |
||
|
10
|
10
25651-74B00-000 BOOT,SHIFT&SELECT SFT OIL |
25651-74B00-000 |
US $6.56 |
||
|
11
|
11
09103-08153-000 BOLT(8X30)Bolt (8x30) |
09103-08153-000 |
US $11.80 |
||
|
12
|
12
09205-03037-000 PIN,SPRING(3X25) |
09205-03037-000 |
from US $0.81 |
||
|
13
|
13
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) |
09205-06007-000 |
from US $1.60 |
||
|
14
|
14
09250-12004-000 CAP(OD:17) |
09250-12004-000 |
US $12.90 |
||
|
15
|
15
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
16
|
16
09304-14020-000 BUSH |
09304-14020-000 |
from US $1.82 |
||
|
17
|
17
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
18
|
18
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
19
|
19
25701-60B10-000 BOLT,GEAR SHIFT YOKE |
25701-60B10-000 |
US $1.98 |
||
|
20
|
20
28101-78K02-000 LEVER,GEAR SHF CONT |
28101-78K02-000 |
from US $92.05 |
||
|
21
|
21
25701-60B10-000 BOLT,GEAR SHIFT YOKE |
25701-60B10-000 |
US $1.98 |
||
|
22
|
22
28104-78K00-000
Shaft s/assy,gr shf rear
|
28104-78K00-000 |
— | ||
| replacement | |||||
|
22
|
22
28104-78K04-000 SHAFT ASSY,GR SHF RR |
28104-78K04-000 |
from US $82.64 |
||
|
23
|
23
28119-78K00-000 BUSH,GEAR SHIFT CONTROL |
28119-78K00-000 |
from US $4.68 |
||
|
24
|
24
28152-84A00-000 BUSH,GR SHF CONTROL JOINT |
28152-84A00-000 |
from US $2.72 |
||
|
25
|
25
28180-84A20-000 PLATE,GR SHF STOPPER |
28180-84A20-000 |
from US $8.37 |
||
|
26
|
26
28241-78K00-000 ARM,GEAR SHIFT CONTROL |
28241-78K00-000 |
from US $85.86 |
||
|
27
|
27
28250-78K00-000 JOINT,GR SHF CONTROL |
28250-78K00-000 |
from US $68.82 |
||
|
28
|
28
28261-78K00-000 BRACKET,GEAR SHIFT CONTROL |
28261-78K00-000 |
US $41.22 |
||
|
29
|
29
57870-03G00-000
NUT,GR SHF STPR PLATE
|
57870-03G00-000 |
— | ||
| replacement | |||||
|
29
|
29
28198-78K00-000 NUT,GR SHF STPR PLATE |
28198-78K00-000 |
US $2.94 |
||
|
30
|
30
09118-08130-000 BOLT(8X35) |
09118-08130-000 |
from US $4.59 |
||
|
31
|
31
09160-08120-000 WASHER(8.5X18X2) |
09160-08120-000 |
from US $3.47 |
||
|
32
|
32
09180-08193-000 SPACER(8.5X12X17)Spacer (8.5x12x17) |
09180-08193-000 |
US $21.30 |
||
|
33
|
33
28113-50J06-BWK
KNOB,GEAR SHF CONT LEVER
|
28113-50J06-BWK |
— | ||
| replacement | |||||
|
33
|
33
28113-50J07-BWK KNOB,GEAR SHF CONT LEVER |
28113-50J07-BWK |
from US $82.49 |
||
|
34
|
34
28135-78K00-000 BOOT,GR SHF CONT LEVER NO.1 |
28135-78K00-000 |
from US $16.27 |
||
|
35
|
35
28136-78K00-000 BOOT,GR SHF CONT LEVER NO.2 |
28136-78K00-000 |
from US $15.53 |
||
|
36
|
36
28137-78K00-000 COVER,GR SHF CONT BOOT |
28137-78K00-000 |
US $10.12 |
||
|
37
|
37
28139-67J00-000 SILENCER,GEAR SHIFT LEVER |
28139-67J00-000 |
US $7.62 |
||
|
38
|
38
09118-08130-000 BOLT(8X35) |
09118-08130-000 |
from US $4.59 |
||
|
39
|
39
09118-08165-000 BOLT(8X25) |
09118-08165-000 |
US $14 |
||
|
40
|
40
09160-08120-000 WASHER(8.5X18X2) |
09160-08120-000 |
from US $3.47 |
||
|
41
|
41
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
42
|
42
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
