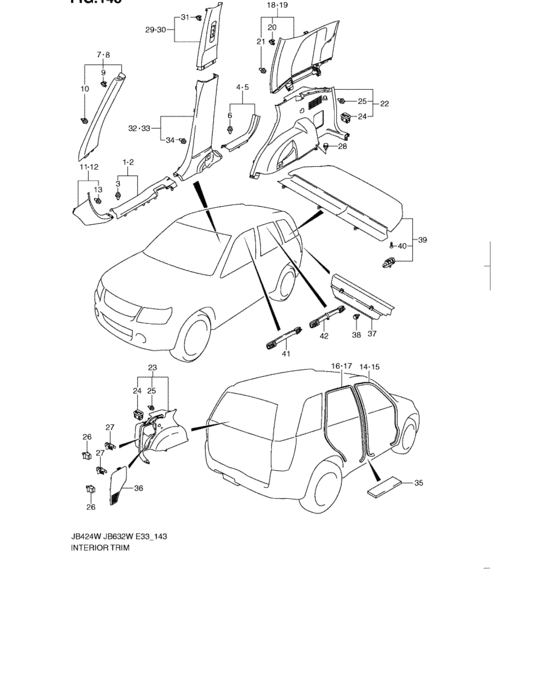

Interior trim (INTERIOR TRIM) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76130-65J00-5PK SCUFF,SIDE SILL FRONT,R |
76130-65J00-5PK |
US $63.20 |
||
|
1
|
1
76130-65J00-R8H SCUFF,SIDE SILL FRONT,R |
76130-65J00-R8H |
US $27.78 |
||
|
2
|
2
76140-65J00-5PK SCUFF,SIDE SILL FRONT,L |
76140-65J00-5PK |
US $63.20 |
||
|
2
|
2
76140-65J00-R8H SCUFF,SIDE SILL FRONT,L |
76140-65J00-R8H |
US $27.78 |
||
|
3
|
3
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
4
|
4
76170-65J00-5PK SCUFF,SIDE SILL RR,R |
76170-65J00-5PK |
US $36.80 |
||
|
4
|
4
76170-65J00-R8H SCUFF,SIDE SILL RR,R |
76170-65J00-R8H |
US $36.80 |
||
|
5
|
5
76180-65J00-5PK SCUFF,SIDE SILL REAR,L |
76180-65J00-5PK |
US $36.80 |
||
|
5
|
5
76180-65J00-R8H SCUFF,SIDE SILL REAR,L |
76180-65J00-R8H |
US $36.80 |
||
|
6
|
6
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
7
|
7
76240-77KZ0-6GS
Trim,fr pillar upper rh
|
76240-77KZ0-6GS |
— | ||
| replacement | |||||
|
7
|
7
76240-77K00-6GS TRIM,FR PLR UPR,R(GRAY) |
76240-77K00-6GS |
US $62.56 |
||
|
8
|
8
76250-77KZ0-6GS
Trim,fr pillar upper lh
|
76250-77KZ0-6GS |
— | ||
| replacement | |||||
|
8
|
8
76250-77K00-6GS TRIM,FR PLR UPR,L(GRAY) |
76250-77K00-6GS |
US $62.56 |
||
|
9
|
9
09409-07335-000 CLIP |
09409-07335-000 |
from US $1.04 |
||
|
10
|
10
76243-77K00-000 CLIP,FR PILLAR UPPER |
76243-77K00-000 |
US $2.80 |
||
|
11
|
11
76110-65J00-5PK TRIM,FR PILLAR LOWER,R |
76110-65J00-5PK |
US $69.60 |
||
|
11
|
11
76110-65J00-R8H TRIM,FR PILLAR LOWER,R |
76110-65J00-R8H |
US $12.14 |
||
|
12
|
12
76120-65J10-5PK TRIM,FR PILLAR LOWER,L |
76120-65J10-5PK |
US $46.40 |
||
|
12
|
12
76120-65J10-R8H TRIM,FR PILLAR LOWER,L |
76120-65J10-R8H |
US $12.14 |
||
|
13
|
13
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
14
|
14
76311-65J01-5PK
Trim,front door opening,r
|
76311-65J01-5PK |
— | ||
| replacement | |||||
|
14
|
14
76311-65J02-5PK TRIM,FR DR OPNG,R |
76311-65J02-5PK |
US $104.80 |
||
|
15
|
15
76312-65J01-5PK
Trim,front door opening,l
|
76312-65J01-5PK |
— | ||
| replacement | |||||
|
15
|
15
76312-65J02-5PK TRIM,FR DR OPNG,L |
76312-65J02-5PK |
from US $76.57 |
||
|
16
|
16
76321-65J00-5PK TRIM,RR DR OPNG,R(BLACK) |
76321-65J00-5PK |
from US $77.74 |
||
|
17
|
17
76322-65J00-5PK TRIM,RR DR OPNG,L(BLACK) |
76322-65J00-5PK |
US $121.60 |
||
|
18
|
18
76280-65J10-6GS TRIM,QTR INR UPR,R(GRAY) |
76280-65J10-6GS |
US $95.01 |
||
|
19
|
19
76290-65J10-6GS TRIM,QTR INR UPR,L(GRAY) |
76290-65J10-6GS |
US $95.01 |
||
|
20
|
20
09409-07335-000 CLIP |
09409-07335-000 |
from US $1.04 |
||
|
21
|
21
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
22
|
22
76210-65J12-5PK
Trim,rr qtr lwr rh
|
76210-65J12-5PK |
— | ||
| replacement | |||||
|
22
|
22
76210-65J13-5PK TRIM,RR QTR LOWER,R |
76210-65J13-5PK |
US $382.72 |
||
|
22
|
22
76210-65J12-JY4
Trim,rr qtr lwr rh
|
76210-65J12-JY4 |
— | ||
| replacement | |||||
|
22
|
22
76210-65J13-JY4 TRIM,RR QTR LWR,R |
76210-65J13-JY4 |
US $382.72 |
||
|
23
|
23
76220-65J12-5PK
Trim,rr qtr lwr lh
|
76220-65J12-5PK |
— | ||
| replacement | |||||
|
23
|
23
76220-65J14-5PK TRIM,RR QTR LOWER,L |
76220-65J14-5PK |
US $454.08 |
||
|
23
|
23
76220-65J12-R8H
Trim,rr qtr lwr lh
|
76220-65J12-R8H |
— | ||
| replacement | |||||
|
23
|
23
76220-65J14-R8H TRIM,RR QTR LOWER,L |
76220-65J14-R8H |
US $454.08 |
||
|
24
|
24
76214-65J00-5PK LATCH,RR QTR LWR TRIM |
76214-65J00-5PK |
from US $1.92 |
||
|
24
|
24
76214-65J00-R8H
LATCH,RR QTR LWR TRIM
|
76214-65J00-R8H |
— | ||
|
25
|
25
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
26
|
26
09403-08326-000 CLAMP |
09403-08326-000 |
US $16.20 |
||
|
27
|
27
09403-13307-000 CLAMP |
09403-13307-000 |
US $21.30 |
||
|
28
|
28
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
28
|
28
09409-07332-R8H CLIP(BEIGE) |
09409-07332-R8H |
US $19.10 |
||
|
29
|
29
76260-65J10-6GS TRIM,CTR PLR UPR,R(GRAY) |
76260-65J10-6GS |
US $38.27 |
||
|
30
|
30
76270-65J10-6GS TRIM,CTR PLR UPR,L(GRAY) |
76270-65J10-6GS |
US $38.27 |
||
|
31
|
31
09409-07335-000 CLIP |
09409-07335-000 |
from US $1.04 |
||
|
32
|
32
76150-65J00-5PK TRIM,CTR PILLAR LWR,R |
76150-65J00-5PK |
US $64.03 |
||
|
32
|
32
76150-65J00-R8H
TRIM,CTR PILLAR LWR,R
|
76150-65J00-R8H |
— | ||
|
33
|
33
76160-65J00-5PK TRIM,CTR PILLAR LWR,L |
76160-65J00-5PK |
US $64.03 |
||
|
33
|
33
76160-65J00-R8H TRIM,CTR PILLAR LWR,L |
76160-65J00-R8H |
US $64.03 |
||
|
34
|
34
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
35
|
35
76351-65J00-000 PAD,CENTER PILLAR LOWER |
76351-65J00-000 |
US $20.24 |
||
|
36
|
36
76231-65J00-5PK LID,RR QTR TRIM |
76231-65J00-5PK |
from US $19.46 |
||
|
36
|
36
76231-65J00-R8H
LID,RR QTR TRIM
|
76231-65J00-R8H |
— | ||
|
37
|
37
76331-65J00-5PK TRIM,BACK PNL(BLACK) |
76331-65J00-5PK |
US $63.20 |
||
|
37
|
37
76331-65J00-R8H TRIM,BACK PANEL |
76331-65J00-R8H |
US $40.48 |
||
|
38
|
38
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.26 |
||
|
38
|
38
09409-07332-R8H CLIP(BEIGE) |
09409-07332-R8H |
US $19.10 |
||
|
39
|
39
76340-65J11-5PK COVER,TONNEAU(BLACK) |
76340-65J11-5PK |
US $368 |
||
|
39
|
39
76340-65J11-R8H COVER,TONNEAU |
76340-65J11-R8H |
US $368 |
||
|
40
|
40
76346-65J00-000 SCREW,TONNEAU STRIKER |
76346-65J00-000 |
US $1.60 |
||
|
41
|
41
76410-65J00-6GS GRIP,ASST |
76410-65J00-6GS |
US $34.96 |
||
|
42
|
42
76410-65J10-6GS GRIP,ASST |
76410-65J10-6GS |
US $37.90 |
||
