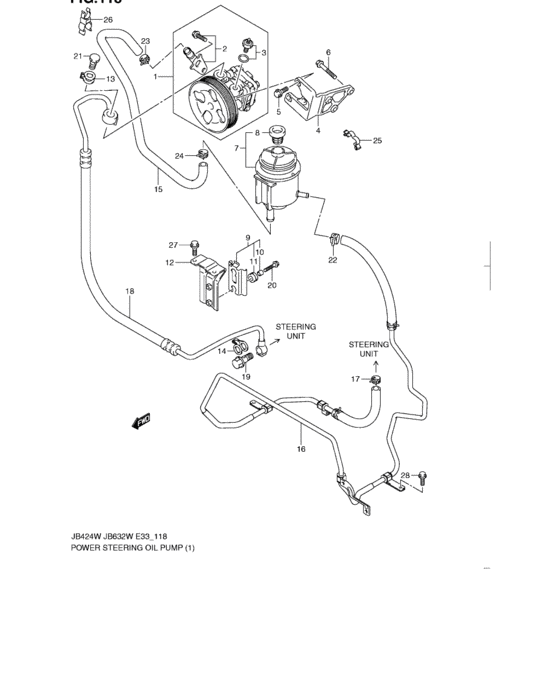

Power steering oil pump (JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- BASE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-78K00-000 PUMP ASSY,POWER STEERING |
49100-78K00-000 |
from US $611.73 |
||
|
2
|
2
49112-54G00-000 CONNECTOR SET |
49112-54G00-000 |
US $34.96 |
||
|
3
|
3
49113-65D00-000 TERMINAL SET |
49113-65D00-000 |
US $40.80 |
||
|
4
|
4
49120-78K00-000 BRACKET,POWER STRG PUMP |
49120-78K00-000 |
US $91.63 |
||
|
5
|
5
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
6
|
6
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
49140-65J00-000 TANK ASSY,POWER STEERING OIL |
49140-65J00-000 |
from US $67.59 |
||
|
8
|
8
49142-65D00-000 CAP,PS OIL TANK |
49142-65D00-000 |
from US $5.02 |
||
|
9
|
9
49150-60G00-000 BRACKET ASSY,PS TANK |
49150-60G00-000 |
US $10.16 |
||
|
10
|
10
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) |
09180-06038-000 |
from US $1.52 |
||
|
11
|
11
09320-08501-000 CUSHION |
09320-08501-000 |
from US $5.17 |
||
|
12
|
12
49152-65J00-000 BRACKET,PS TANK NO.2 |
49152-65J00-000 |
US $7.62 |
||
|
13
|
13
49211-63G03-000 GASKET,PRESSURE PIPE |
49211-63G03-000 |
US $4.96 |
||
|
14
|
14
49211-65J00-000 GASKET,GEAR BOX |
49211-65J00-000 |
from US $6.95 |
||
|
15
|
15
49214-78K00-000 HOSE,SUCTION |
49214-78K00-000 |
from US $26.08 |
||
|
16
|
16
49220-78K60-000 HOSE ASSY,RETURN |
49220-78K60-000 |
US $139.37 |
||
|
17
|
17
49225-65D10-000 CLAMP,RETURN GEAR SIDE |
49225-65D10-000 |
US $2.98 |
||
|
18
|
18
49230-78K50-000 HOSE,PRESSURE |
49230-78K50-000 |
from US $177.01 |
||
|
19
|
19
49237-65J00-000 BOLT,UNION GEAR BOX |
49237-65J00-000 |
from US $6.77 |
||
|
20
|
20
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
21
|
21
09360-16003-000 UNION |
09360-16003-000 |
from US $5.94 |
||
|
22
|
22
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
23
|
23
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $5.56 |
||
|
24
|
24
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $5.56 |
||
|
25
|
25
09408-00151-000 CLAMP |
09408-00151-000 |
US $16.90 |
||
|
26
|
26
09408-00186-000 CLAMP |
09408-00186-000 |
US $26.90 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
