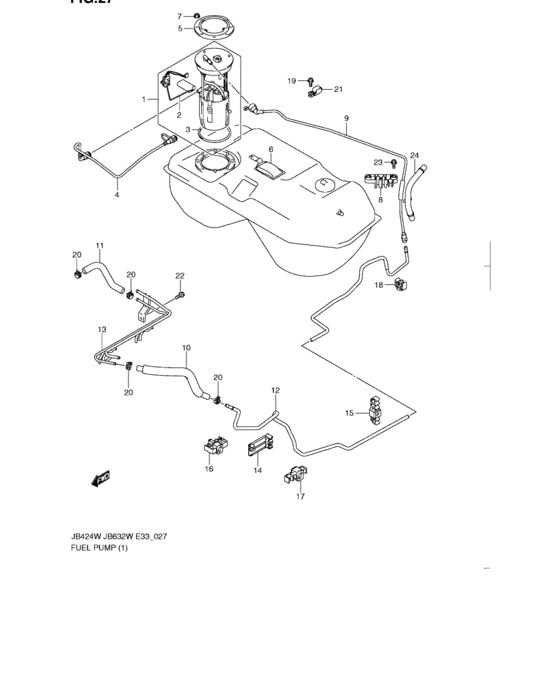

Fuel Pump (JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- MT
- grade
- X SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78880-000
Pump set,fuel
|
15100-78880-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-788A1-000 PUMP SET,FUEL |
15100-788A1-000 |
from US $712.26 |
||
|
1
|
1
15112-65J00-000 PIPE,FUEL SUCTION |
15112-65J00-000 |
from US $31.46 |
||
|
1
|
1
15814-78K20-000 PIPE,FUEL FEED PUMP TO PIPE |
15814-78K20-000 |
from US $61.31 |
||
|
2
|
2
34810-78K00-000
GAUGE ASSY,FUEL LEVEL
|
34810-78K00-000 |
— | ||
| replacement | |||||
|
2
|
2
15101-78821-000
GAUGE ASSY,FUEL LEVEL
|
15101-78821-000 |
— | ||
|
3
|
3
15111-80J00-000 GASKET,FUEL PUMP |
15111-80J00-000 |
from US $8.51 |
||
|
4
|
4
15112-78K00-000 PIPE,FUEL SUCTION |
15112-78K00-000 |
from US $24.73 |
||
|
5
|
5
15121-61J00-000 PLATE,FUEL PUMP |
15121-61J00-000 |
US $10.56 |
||
|
6
|
6
15195-65J00-000 FILTER,FUEL SUCTION |
15195-65J00-000 |
from US $14.49 |
||
|
7
|
7
09159-06077-000 NUT |
09159-06077-000 |
US $1.28 |
||
|
8
|
8
15813-66J00-000
CLAMP,FUEL PIPE
|
15813-66J00-000 |
— | ||
|
9
|
9
15814-78K00-000 PIPE,FUEL FEED PUMP TO PIPE |
15814-78K00-000 |
US $54.46 |
||
|
10
|
10
15817-78K00-000 HOSE,FUEL,BODY TO ENG |
15817-78K00-000 |
US $29.81 |
||
|
11
|
11
15818-78K00-000 HOSE,FUEL,ENG SIDE |
15818-78K00-000 |
from US $16.01 |
||
|
12
|
12
15821-78K00-000 PIPE,FUEL |
15821-78K00-000 |
US $50.16 |
||
|
13
|
13
15840-78K00-000 PIPE,FUEL ENG SIDE |
15840-78K00-000 |
US $56.30 |
||
|
14
|
14
15875-65J00-000 COVER,FUEL PIPE |
15875-65J00-000 |
US $2.90 |
||
|
15
|
15
15892-65J00-000 CLAMP,FUEL PIPE |
15892-65J00-000 |
US $3.81 |
||
|
16
|
16
15893-78K00-000 CLAMP,FUEL PIPE |
15893-78K00-000 |
US $4.11 |
||
|
17
|
17
15894-65J00-000 CLAMP,FUEL PIPE |
15894-65J00-000 |
US $3.95 |
||
|
18
|
18
15895-78K10-000
CLAMP,FUEL PIPE
|
15895-78K10-000 |
— | ||
|
19
|
19
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
20
|
20
09401-11420-000 CLIP |
09401-11420-000 |
US $1.52 |
||
|
21
|
21
09403-13410-000 CLAMP |
09403-13410-000 |
US $21.30 |
||
|
22
|
22
01560-0612A-000 Bolt |
01560-0612A-000 |
US $12.50 |
||
|
23
|
23
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
24
|
24
15820-66J02-000
PIPE ASSY,FUEL TANK SIDE
|
15820-66J02-000 |
— | ||
