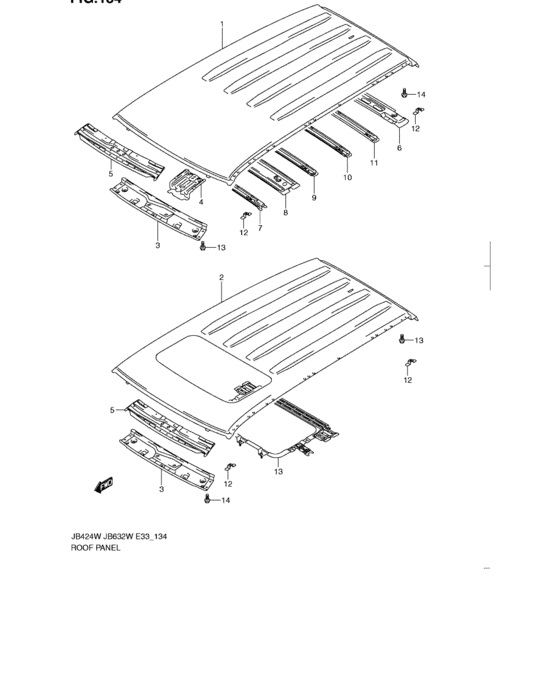

Roof panel (ROOF PANEL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- MT
- grade
- X SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-77K80-000 PANEL,ROOFW/STD ROOF |
65111-77K80-000 |
US $616 |
||
|
2
|
2
65111-65J91-000 PANEL,ROOFW/SUN ROOF |
65111-65J91-000 |
US $616 |
||
|
3
|
3
65121-77K00-000 PANEL,ROOF FRONT INNER |
65121-77K00-000 |
US $45.63 |
||
|
4
|
4
65122-65J00-000 BRACKET,OVER HEAD CONSOLEW/STD ROOF |
65122-65J00-000 |
US $17.22 |
||
|
5
|
5
65123-77K00-000 PANEL,ROOF FRONT UPPER |
65123-77K00-000 |
US $50.42 |
||
|
6
|
6
65130-65J10-000 PANEL,ROOF BACK INNER |
65130-65J10-000 |
US $64.03 |
||
|
7
|
7
65141-65J00-000 REINFORCEMENT,ROOF NO.1W/STD ROOF |
65141-65J00-000 |
US $41.22 |
||
|
8
|
8
65142-65J00-000 REINFORCEMENT,ROOF NO.2W/STD ROOF |
65142-65J00-000 |
US $50.42 |
||
|
9
|
9
65143-65J01-000 REINFORCEMENT,ROOF NO.3 |
65143-65J01-000 |
US $34.96 |
||
|
10
|
10
65152-65J00-000 REINFORCEMENT,ROOF NO.4 |
65152-65J00-000 |
US $41.58 |
||
|
11
|
11
65161-65J00-000 REINFORCEMENT,ROOF NO.5 |
65161-65J00-000 |
US $41.58 |
||
|
12
|
12
65171-65J00-000 BRACKET,ROOF RAIL CAPW/ROOF RAIL |
65171-65J00-000 |
US $5.41 |
||
|
13
|
13
65180-77K00-000 REINFORCEMENT,SLIDING ROOFW/SUN ROOF |
65180-77K00-000 |
US $298.08 |
||
|
14
|
14
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
