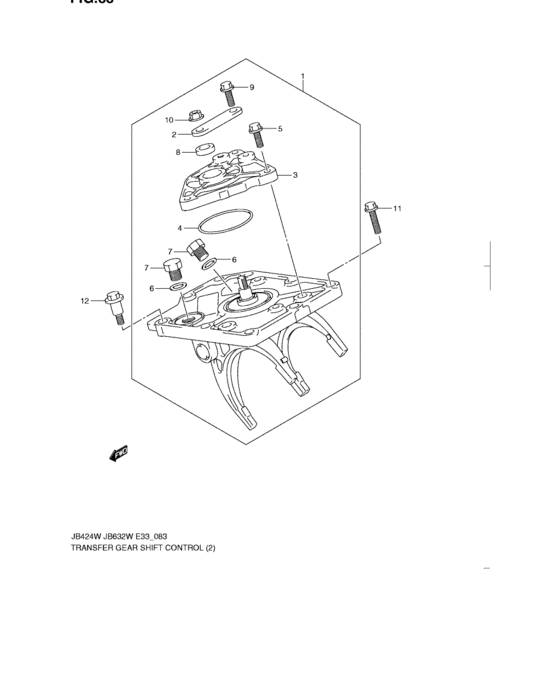

Transfer gear shift control (4WD:S MODE) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 4WD
- transmission
- MT
- grade
- X SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29750-66J00-000 CASE ASSY,DIFF LOCK SHF LEVER |
29750-66J00-000 |
US $408 |
||
|
2
|
2
29735-66J00-000 LEVER,DIFF LOCK SHF OUTER |
29735-66J00-000 |
US $2.91 |
||
|
3
|
3
29753-66J00-000 COVER,DIFF LOCK SHF LEVER |
29753-66J00-000 |
US $32.02 |
||
|
4
|
4
09280-54002-000 O RING(D:2.4,ID:53.6)O ring (d:2.4,id:53.6) |
09280-54002-000 |
from US $3.15 |
||
|
5
|
5
09103-08266-000 BOLT(8X20)Bolt, lower |
09103-08266-000 |
from US $0.91 |
||
|
6
|
6
09168-14011-000 GASKET(14X20X1.5) |
09168-14011-000 |
from US $0.72 |
||
|
7
|
7
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.26 |
||
|
8
|
8
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
09103-08153-000 BOLT(8X30)Bolt (8x30) |
09103-08153-000 |
US $11.80 |
||
|
12
|
12
09103-08193-000 BOLT(8X30.3) |
09103-08193-000 |
from US $6.95 |
