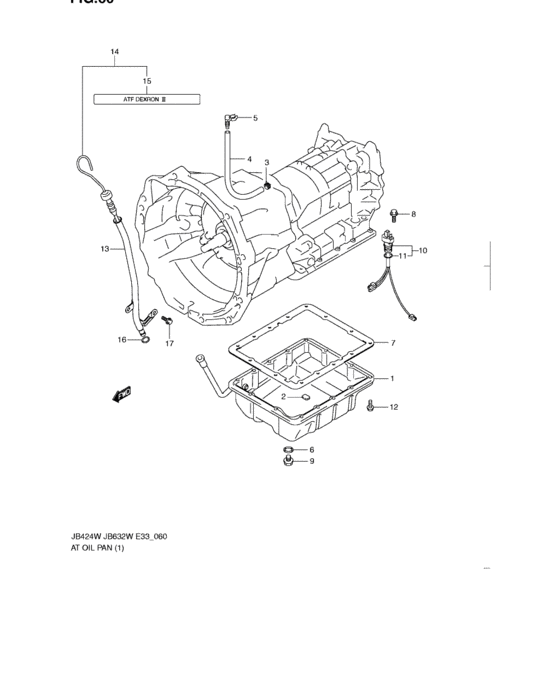

At oil pan (AT:JB424W) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- X SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24741-65J11-000 PAN,T/M OIL |
24741-65J11-000 |
from US $170.53 |
||
|
2
|
2
24745-57B00-000 MAGNET,T/M OIL PAN |
24745-57B00-000 |
US $5.60 |
||
|
3
|
3
24735-57B00-000 CLIP,BREATHER HOSE |
24735-57B00-000 |
US $5.76 |
||
|
4
|
4
24771-65D00-000 HOSE,BREATHER T/M |
24771-65D00-000 |
US $22.40 |
||
|
5
|
5
24773-57B00-000 BREATHER,AT T/M |
24773-57B00-000 |
US $19.20 |
||
|
6
|
6
24781-57B00-000 GASKET,DRAIN PLUG |
24781-57B00-000 |
from US $1.52 |
||
|
7
|
7
24782-57B00-000 GASKET,T/M OIL PAN |
24782-57B00-000 |
from US $29.41 |
||
|
8
|
8
24813-57B00-000 Bolt |
24813-57B00-000 |
US $2.02 |
||
|
9
|
9
24823-79C10-000 PLUG,DRAIN |
24823-79C10-000 |
from US $2.13 |
||
|
10
|
10
24892-65J10-000 HARNESS,SOLENOID WIRE |
24892-65J10-000 |
US $412.80 |
||
|
11
|
11
29726-57B00-000 O-RING,SOL WIRE HARN |
29726-57B00-000 |
US $7.68 |
||
|
12
|
12
09117-06002-000 BOLT(6X14) |
09117-06002-000 |
US $1.28 |
||
|
13
|
13
22940-78K10-000 TUBE,OIL FILLER |
22940-78K10-000 |
US $63.84 |
||
|
14
|
14
22950-65J10-000 GAUGE,OIL |
22950-65J10-000 |
US $52 |
||
|
15
|
15
24839-63J10-000 EMBLEM,ATF |
24839-63J10-000 |
US $1.60 |
||
|
16
|
16
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
17
|
17
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
