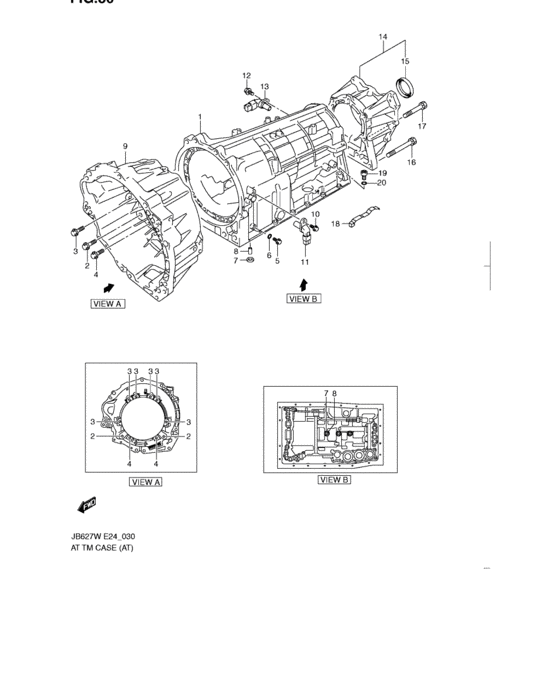

At transmission case (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24720-64J10-000
CASE,T/M
|
24720-64J10-000 |
— | ||
|
2
|
2
24736-54J10-000
BOLT,CONVERTER HOUSING NO.1
|
24736-54J10-000 |
— | ||
|
3
|
3
24723-53J10-000
BOLT,HSG&CASE NO.3
|
24723-53J10-000 |
— | ||
|
4
|
4
24736-54J30-000 BOLT,CONVERTER HOUSING NO.3 |
24736-54J30-000 |
US $4.16 |
||
|
5
|
5
29849-57B00-000 PLUG,T/M CASE |
29849-57B00-000 |
US $5.89 |
||
|
6
|
6
29738-57B00-000 O-RING |
29738-57B00-000 |
US $2.40 |
||
|
7
|
7
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1 |
24818-68J10-000 |
US $8 |
||
|
8
|
8
24819-54J10-000 GASKET,BRAKE DRUM |
24819-54J10-000 |
US $13.98 |
||
|
9
|
9
24711-64J10-000
HOUSING,CONVERTER
|
24711-64J10-000 |
— | ||
|
10
|
10
24746-53J10-000 BOLT,INPUT SPEED SENSOR |
24746-53J10-000 |
US $2.74 |
||
|
11
|
11
26143-79C10-000 SENSOR,SPEED INPUT |
26143-79C10-000 |
from US $140.94 |
||
|
12
|
12
24746-53J10-000 BOLT,INPUT SPEED SENSOR |
24746-53J10-000 |
US $2.74 |
||
|
13
|
13
26143-79C10-000 SENSOR,SPEED INPUT |
26143-79C10-000 |
from US $140.94 |
||
|
14
|
14
24730-64J10-000
CASE ASSY,ADAPTER
|
24730-64J10-000 |
— | ||
|
15
|
15
24771-54J30-000 SEAL,EXTENSION CASE OIL |
24771-54J30-000 |
US $15.96 |
||
|
16
|
16
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3 |
29972-57B00-000 |
US $16.34 |
||
|
17
|
17
24724-53J10-000
BOLT,ADAPTER&T/M CASE NO.1
|
24724-53J10-000 |
— | ||
|
18
|
18
24726-54J10-000
SPRING,PLATE STOPPER
|
24726-54J10-000 |
— | ||
|
19
|
19
24734-59J10-000 PLUG,T/M CASE NO.4 |
24734-59J10-000 |
US $6.62 |
||
|
20
|
20
24733-53J10-000 O-RING,OIL PIPE UNION |
24733-53J10-000 |
US $1.60 |
