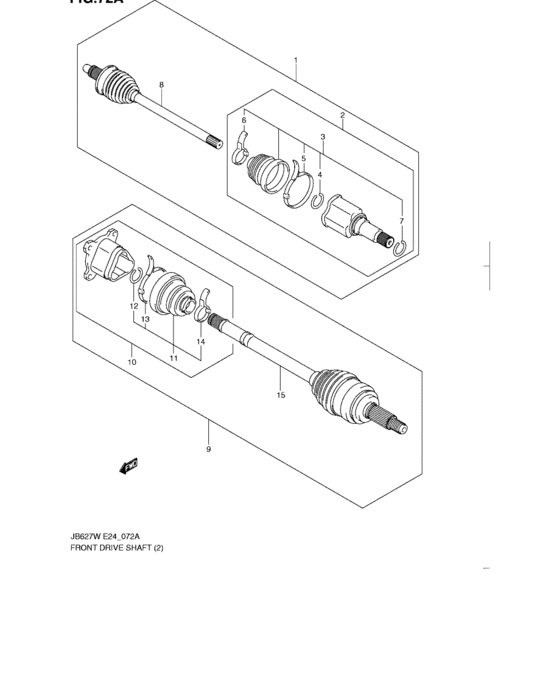

Front drive shaft Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-65J01-000
シャフトアッシ,フロントドライブライト
|
44101-65J01-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-78K00-000 SHAFT ASSY,FRONT DRIVE, RH |
44101-78K00-000 |
US $1,265.60 |
||
|
2
|
2
44114-65J01-000
Joint assy,diff side rh
|
44114-65J01-000 |
— | ||
| replacement | |||||
|
2
|
2
44114-65J02-000 JOINT ASSY,DIFF SIDE,R |
44114-65J02-000 |
US $457.60 |
||
|
3
|
3
44125-65J01-000
Boot set,diff side
|
44125-65J01-000 |
— | ||
| replacement | |||||
|
3
|
3
44125-65J03-000 BOOT SET,DIFF SIDE |
44125-65J03-000 |
from US $120.04 |
||
|
4
|
4
44111-59J10-000 CIRCLIP |
44111-59J10-000 |
US $3.72 |
||
|
5
|
5
44123-59J10-000 CLAMP,BOOT |
44123-59J10-000 |
US $15.79 |
||
|
6
|
6
44124-59J10-000 CLAMP,BOOT SMALL |
44124-59J10-000 |
US $9.20 |
||
|
7
|
7
44177-59J11-000 CIRCLIP |
44177-59J11-000 |
from US $3.72 |
||
|
8
|
8
44117-65J00-000
JOINT ASSY,WHL SIDE,R
|
44117-65J00-000 |
— | ||
| replacement | |||||
|
8
|
8
44117-65J02-000 JOINT ASSY,WHL SIDE,R |
44117-65J02-000 |
from US $409.48 |
||
|
9
|
9
44102-65J00-000
シャフトアッシ,フロントドライブ,レフト
|
44102-65J00-000 |
— | ||
| replacement | |||||
|
9
|
9
44102-78K00-000 SHAFT ASSY,FRONT DRIVE, LH |
44102-78K00-000 |
from US $793.69 |
||
|
10
|
10
44115-65J00-000
Joint assy,diff side lh
|
44115-65J00-000 |
— | ||
| replacement | |||||
|
10
|
10
44115-65J01-000 JOINT ASSY,DIFF SIDE,L |
44115-65J01-000 |
US $457.60 |
||
|
11
|
11
44126-65J00-000
Boot set,diff side
|
44126-65J00-000 |
— | ||
| replacement | |||||
|
11
|
11
44126-65J01-000 BOOT SET,DIFF SIDE |
44126-65J01-000 |
US $143.15 |
||
|
12
|
12
44111-65J00-000 CIRCLIP |
44111-65J00-000 |
US $9.83 |
||
|
13
|
13
44123-65J00-000
CLAMP,BOOT
|
44123-65J00-000 |
— | ||
|
14
|
14
44124-65J00-000
CLAMP,BOOT
|
44124-65J00-000 |
— | ||
|
15
|
15
44118-65J00-000
JOINT ASSY,WHL SIDE,L
|
44118-65J00-000 |
— | ||
| replacement | |||||
|
15
|
15
44118-65J01-000 JOINT ASSY,WHL SIDE,L |
44118-65J01-000 |
from US $515.63 |
||
