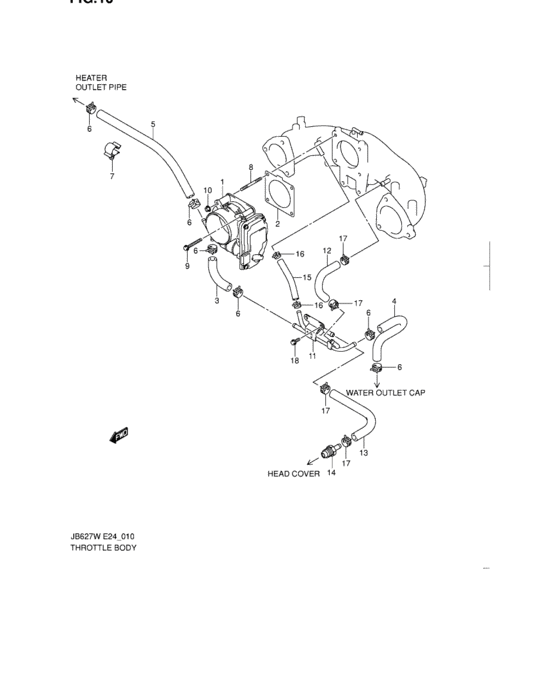

Throttle body (THROTTLE BODY) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-66J00-000 BODY ASSY,THROTTLE |
13400-66J00-000 |
US $1,513.60 |
||
|
2
|
2
13421-66J00-000 GASKET,THROTTLE BODY |
13421-66J00-000 |
from US $3.72 |
||
|
3
|
3
13491-66J00-000 HOSE,WTR TB INLET |
13491-66J00-000 |
from US $5.02 |
||
|
4
|
4
13492-66J00-000 HOSE,WTR TB INLET |
13492-66J00-000 |
from US $7.11 |
||
|
5
|
5
13493-66J00-000 HOSE,WTR TB OUTLET |
13493-66J00-000 |
from US $9.88 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
7
|
7
09403-14315-000 CLAMPClamp, harness |
09403-14315-000 |
US $17.70 |
||
|
8
|
8
01421-0645A-000 BOLT,STUD |
01421-0645A-000 |
from US $1.12 |
||
|
9
|
9
01550-0650A-000 BOLTBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
10
|
10
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
11190-66J00-000
パイプ,PCV
->11190-66J01,USED WITH 11193-66J01 |
11190-66J00-000 |
— | ||
| replacements | |||||
|
11
|
11
11190-66810-000 HOSE SET,PCV->11190-66J01,USED WITH 11193-66J01 |
11190-66810-000 |
from US $10.85 |
||
|
11
|
11
11190-66J01-000 PIPE,PCV->11190-66J01,USED WITH 11193-66J01 |
11190-66J01-000 |
US $61.60 |
||
|
11
|
11
11190-66J01-000 PIPE,PCVJSAJTD94V00101144~,JS3TD94V 64100056~ |
11190-66J01-000 |
US $61.60 |
||
|
12
|
12
11192-66J00-000 HOSE,PCV |
11192-66J00-000 |
US $10.58 |
||
|
13
|
13
11190-66810-000 HOSE SET,PCV |
11190-66810-000 |
from US $10.85 |
||
|
14
|
14
18118-65D00-000 VALVE,PCV |
18118-65D00-000 |
from US $32.47 |
||
|
15
|
15
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->90 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
15
|
15
44421-12FR0-000 HOSEL:600->90 |
44421-12FR0-000 |
from US $16.64 |
||
|
16
|
16
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
