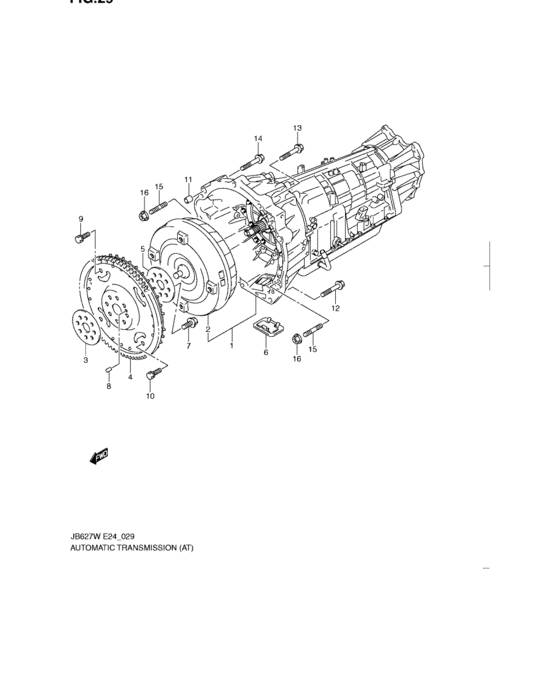

Automatic transmission (AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-64J10-000
トランスミッションアッシ,オートマチック
TYPE 1:Australia |
21000-64J10-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64J11-000
Transmission assy,automatic
TYPE 1:Australia |
21000-64J11-000 |
— | ||
|
1
|
1
21000-64JH0-000
トランスミッションアッシ,オートマチック
TYPE 2:,Chile,Australia,Sinagpore,,6 |
21000-64JH0-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64JH1-000 T/M ASSY,AUTOMATICTYPE 2:,Chile,Australia,Sinagpore,,6 |
21000-64JH1-000 |
US $9,380.88 |
||
|
1
|
1
21000-64JV1-000
Transmission assy, automatic
Taiwan,Saudi Arabia |
21000-64JV1-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-64JV3-000 T/M ASSY,AUTOMATICTaiwan,Saudi Arabia |
21000-64JV3-000 |
US $7,103.60 |
||
|
2
|
2
22700-54J10-000 CONVERTER,TORQUE |
22700-54J10-000 |
US $1,486.08 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-64J10-000 PLATE,TC DRIVE |
22620-64J10-000 |
US $520 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
22641-61A01-000 CAP,T/C,HOUSING |
22641-61A01-000 |
US $11.04 |
||
|
7
|
7
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
US $2.08 |
||
|
8
|
8
04221-08129-000 PINPin, knock |
04221-08129-000 |
from US $0.91 |
||
|
9
|
9
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
from US $2.09 |
||
|
10
|
10
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
11
|
11
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
12
|
12
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
13
|
13
01550-1265A-000 Bolt |
01550-1265A-000 |
US $24.70 |
||
|
14
|
14
01550-1275A-000 BOLT |
01550-1275A-000 |
US $1.92 |
||
|
15
|
15
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.50 |
||
|
16
|
16
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
17
|
17
24700-54JT0-000
OVERHAUL KIT,AT
NOT ILLUSTRATED |
24700-54JT0-000 |
— | ||
