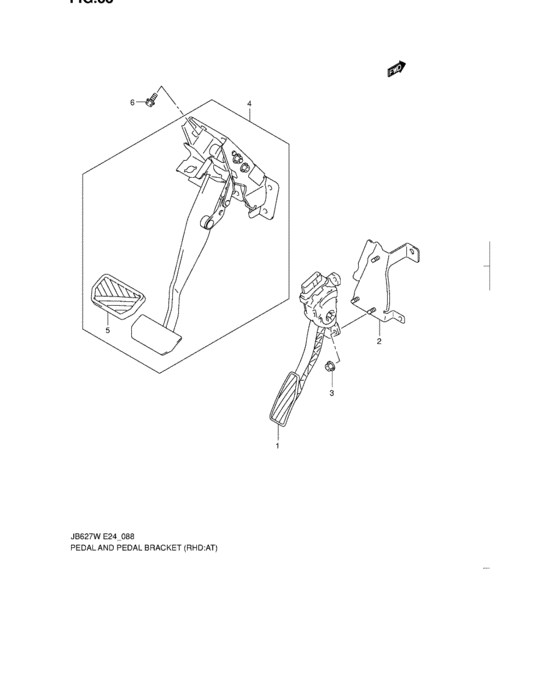

Pedal/pedal bracket (RHD:AT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15900-65J02-000 Pedal assy,accelerator |
15900-65J02-000 |
US $345.04 |
||
| replacement | |||||
|
1
|
1
15900-65J10-000 PEDAL ASSY,ACCELERATOR |
15900-65J10-000 |
US $640 |
||
|
2
|
2
49510-65J00-000 BRACKET,ACCELERATOR PEDAL |
49510-65J00-000 |
US $21.34 |
||
|
3
|
3
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
4
|
4
49600-66J00-000
Pedal assy,brake
|
49600-66J00-000 |
— | ||
| replacement | |||||
|
4
|
4
49600-76K10-000 PEDAL ASSY,BRAKE |
49600-76K10-000 |
US $176.64 |
||
|
5
|
5
49751-58J10-000 PAD,PEDAL |
49751-58J10-000 |
US $5.02 |
||
|
6
|
6
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
