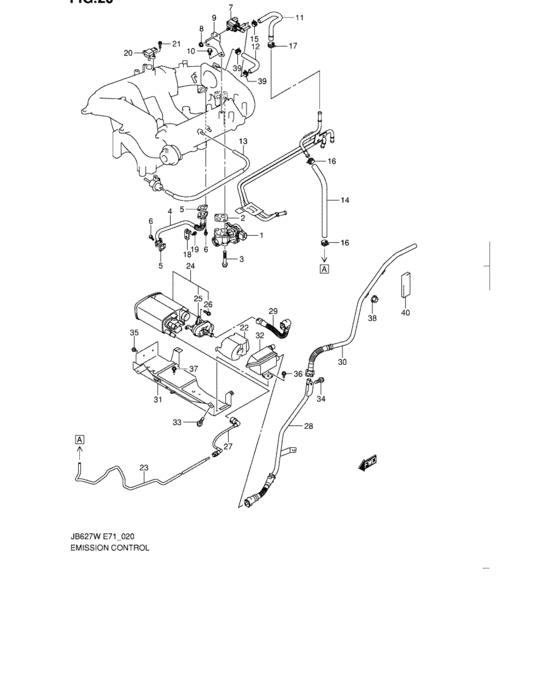

Emission control (EMISSION CONTROL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E02-000 VALVE,EGR |
18111-77E02-000 |
from US $309.11 |
||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVE |
18529-77E01-000 |
from US $2.89 |
||
|
3
|
3
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
4
|
4
18530-67D10-000 PIPE,EGR |
18530-67D10-000 |
from US $147.98 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPE |
18533-77E00-000 |
from US $2.28 |
||
|
6
|
6
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
18117-65J00-000 VALVE,EVAP CSTR PURGE |
18117-65J00-000 |
from US $140.81 |
||
|
8
|
8
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
18417-66J00-000
BRACKET,PURGE VALVE
|
18417-66J00-000 |
— | ||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
18562-66J00-000 HOSE,PURGE PIPE TO VSV |
18562-66J00-000 |
from US $10.08 |
||
|
12
|
12
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->220 |
09355-54115-600 |
from US $7.20 |
||
|
12
|
12
09355-54128-600
Hose,5.4x12.2x600
L:600->220,JS3TD94V 74200001~,JS3TBarbadosV 64101819~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
12
|
12
09355-56128-600 HOSE(5.6X12.4X600)L:600->220,JS3TD94V 74200001~,JS3TBarbadosV 64101819~ |
09355-56128-600 |
from US $8.46 |
||
|
13
|
13
18419-52D00-000 HOSE,VAC RGLTR TO PIPE |
18419-52D00-000 |
from US $5.83 |
||
|
14
|
14
09355-70129-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->240 |
09355-70129-600 |
from US $22.31 |
||
|
15
|
15
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
16
|
16
09401-11419-000 CLIP |
09401-11419-000 |
from US $1.42 |
||
|
17
|
17
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.10 |
||
|
18
|
18
18536-77EA0-000 CLAMP,EGR PIPE |
18536-77EA0-000 |
from US $1.64 |
||
|
19
|
19
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
18590-72F21-000 SENSOR,PRESSURE |
18590-72F21-000 |
US $207.11 |
||
| replacement | |||||
|
20
|
20
18590-68H00-000 SENSOR,PRESSURESensor, pressure |
18590-68H00-000 |
from US $207.11 |
||
|
21
|
21
07130-05163-000
Bolt
|
07130-05163-000 |
— | ||
| replacement | |||||
|
21
|
21
07130-0516A-000 Bolt |
07130-0516A-000 |
from US $3.67 |
||
|
22
|
22
18220-52D00-000 COVER,EVAP LEAK VALVE |
18220-52D00-000 |
US $31.46 |
||
|
23
|
23
18351-65J10-000
Pipe, purge
|
18351-65J10-000 |
— | ||
| replacement | |||||
|
23
|
23
18351-65J12-000
PIPE,PURGE
|
18351-65J12-000 |
— | ||
|
23
|
23
18351-65J11-000
Pipe, purge
JS3TD94V 74200001~,JS3TBarbadosV 74101064~ |
18351-65J11-000 |
— | ||
| replacement | |||||
|
23
|
23
18351-65J12-000
PIPE,PURGE
JS3TD94V 74200001~,JS3TBarbadosV 74101064~ |
18351-65J12-000 |
— | ||
|
24
|
24
18560-66J00-000
CANISTER ASSY
|
18560-66J00-000 |
— | ||
|
25
|
25
18210-52D00-000 VALVE ASSY,EVAP LEAK |
18210-52D00-000 |
from US $327.52 |
||
|
26
|
26
02162-0620A-000
Bolt
|
02162-0620A-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.83 |
||
|
27
|
27
18561-65J10-000 PIPE,PURGE(CSTR TO PIPE) |
18561-65J10-000 |
US $50.42 |
||
|
28
|
28
18566-65J10-000
PIPE,CSTR AIR SUCTION
|
18566-65J10-000 |
— | ||
|
29
|
29
18567-65J10-000
PIPE,SUCTION CSTR OUTLET
|
18567-65J10-000 |
— | ||
|
30
|
30
18569-66J00-000
Pipe, cstr air suction
|
18569-66J00-000 |
— | ||
| replacements | |||||
|
30
|
30
18565-65J20-000 CLAMP,SUCTION PIPE |
18565-65J20-000 |
US $1.91 |
||
|
30
|
30
18569-66J01-000 PIPE,CSTR AIR SUCTION |
18569-66J01-000 |
US $79.49 |
||
|
31
|
31
18570-65J10-000 BRACKET,CANISTER |
18570-65J10-000 |
US $65.14 |
||
|
32
|
32
18581-65J10-000
FILTER,CSTR AIR SUCTION
|
18581-65J10-000 |
— | ||
|
33
|
33
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
34
|
34
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
36
|
36
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
36
|
36
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
37
|
37
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
37
|
37
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
38
|
38
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
39
|
39
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
39
|
39
09401-11419-000 CLIPJS3TD94V 74200001~,JS3TBarbadosV 64101819~ |
09401-11419-000 |
from US $1.42 |
||
|
40
|
40
18568-65J20-000 PACKING,EVAP SUCTION PIPE |
18568-65J20-000 |
US $6.62 |
||
