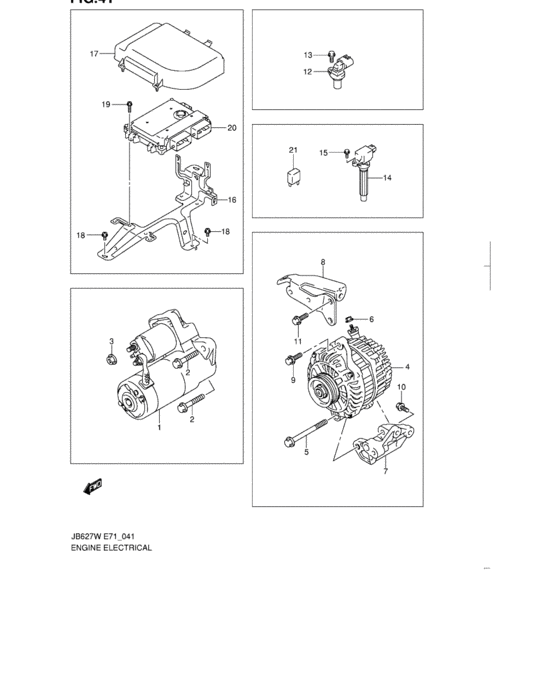

Engine electrical (ENGINE ELECTRICAL) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-65J30-000 MOTOR ASSY,STARTING |
31100-65J30-000 |
from US $650.30 |
||
| replacement | |||||
|
1
|
1
31100-65J30-REM
Motor assy,star
|
31100-65J30-REM |
— | ||
|
2
|
2
01550-1050A-000 BoltBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-65J20-000
Generator assy
|
31400-65J20-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-65J21-000 GENERATOR ASSY |
31400-65J21-000 |
from US $514.89 |
||
|
5
|
5
09103-10402-000 BOLT(10X95) |
09103-10402-000 |
US $27.20 |
||
|
6
|
6
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
11550-66J00-000 BRACKET,GENERATOR |
11550-66J00-000 |
from US $35.69 |
||
|
8
|
8
11560-66J00-000
ARM,GENERATOR ADJUST
|
11560-66J00-000 |
— | ||
|
9
|
9
09118-08164-000 BOLT(8X40) |
09118-08164-000 |
US $19.10 |
||
|
10
|
10
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
11
|
11
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
33220-63J00-000
SENSOR ASSY,POSITION
|
33220-63J00-000 |
— | ||
| replacement | |||||
|
12
|
12
33220-64L20-000 SENSOR ASSY, CRANK POSITION |
33220-64L20-000 |
from US $76.84 |
||
|
13
|
13
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
33400-65J00-000 COIL ASSY,IGNITION |
33400-65J00-000 |
from US $166.05 |
||
|
15
|
15
09135-05002-000 BOLT(5X23) |
09135-05002-000 |
from US $1.37 |
||
|
16
|
16
33924-65J00-000 BRACKET,EPI CONT |
33924-65J00-000 |
from US $18.70 |
||
|
17
|
17
33925-65J00-000 COVER,EPI CONT |
33925-65J00-000 |
from US $7.18 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
20
|
20
33920-66J52-000
Controller assy,epi
|
33920-66J52-000 |
— | ||
| replacement | |||||
|
20
|
20
33920-66J53-000 CONTROLLER ASSY,EPI |
33920-66J53-000 |
US $2,187.84 |
||
|
20
|
20
33920-66JC0-000
Controller, fuel injection
JS3TBarbadosV 74200001~,JS3TD94V 74200001~ |
33920-66JC0-000 |
— | ||
| replacement | |||||
|
20
|
20
33920-66JC2-000 CONTROLLER ASSY,EPIJS3TBarbadosV 74200001~,JS3TD94V 74200001~ |
33920-66JC2-000 |
US $2,167.20 |
||
|
21
|
21
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $28.80 |
||
