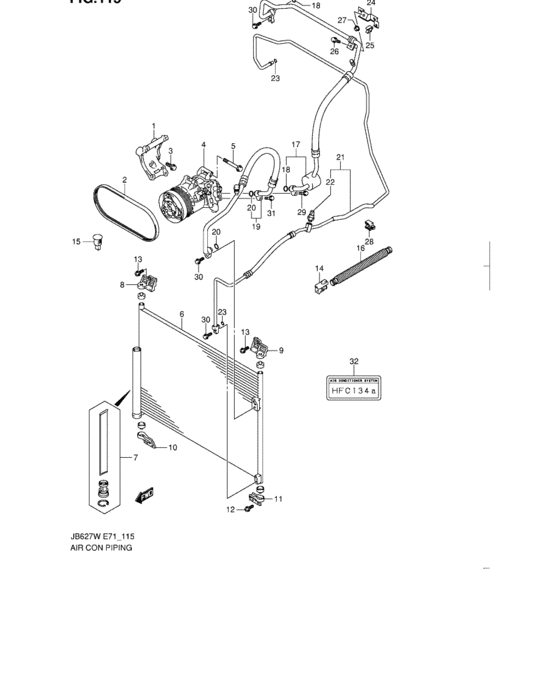

Air con piping (AIR CON PIPING) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Latin america
- drive
- 4WD
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95111-64J20-000 BRACKET,CPRSR |
95111-64J20-000 |
US $79.49 |
||
|
2
|
2
95141-64J20-000 V-BELT,4PK 1075 |
95141-64J20-000 |
US $18.86 |
||
|
3
|
3
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
|
4
|
4
95200-64JC0-000 COMPRESSOR ASSY |
95200-64JC0-000 |
US $1,234.96 |
||
|
5
|
5
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
6
|
6
95310-64J00-000
コンデンサアッシ
|
95310-64J00-000 |
— | ||
| replacement | |||||
|
6
|
6
95310-64JA0-000 CONDENSER ASSY |
95310-64JA0-000 |
from US $416 |
||
|
7
|
7
95339-58J00-000
ドライヤキット
|
95339-58J00-000 |
— | ||
| replacement | |||||
|
7
|
7
95339-58J10-000 DRYER KIT |
95339-58J10-000 |
from US $48.35 |
||
|
8
|
8
95391-64J00-000 BRACKET,COND UPPER,R |
95391-64J00-000 |
from US $6.68 |
||
|
9
|
9
95391-64J10-000 BRACKET,COND UPPER,L |
95391-64J10-000 |
from US $7.04 |
||
|
10
|
10
95392-64J00-000 BRACKET,COND LOWER,R |
95392-64J00-000 |
from US $10.40 |
||
|
11
|
11
95392-64J10-000 BRACKET,COND LOWER,L |
95392-64J10-000 |
US $10.40 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
02162-0616C-000 SCREW |
02162-0616C-000 |
US $0.80 |
||
| replacement | |||||
|
13
|
13
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
14
|
14
95641-59J00-000 SENSOR,ROOM TEMP |
95641-59J00-000 |
US $154.98 |
||
|
15
|
15
95642-54J01-000 SENSOR,SUN LIGHT |
95642-54J01-000 |
from US $32 |
||
|
16
|
16
95647-64J00-000 DUCT,ROOM TEMP SNSR |
95647-64J00-000 |
US $12.29 |
||
|
17
|
17
95710-64J30-000 HOSE,SUCTION |
95710-64J30-000 |
US $120.08 |
||
|
18
|
18
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
19
|
19
95720-64J20-000 HOSE,DISCHARGE |
95720-64J20-000 |
from US $75.44 |
||
|
20
|
20
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
21
|
21
95731-64J10-000 HOSE,LIQUID |
95731-64J10-000 |
US $146.81 |
||
|
22
|
22
95546-58J00-000 SENSOR,PRESSURE |
95546-58J00-000 |
US $52.80 |
||
|
23
|
23
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
24
|
24
95781-64J10-000 STAY,SUCT HOSE |
95781-64J10-000 |
US $8.87 |
||
|
25
|
25
09403-08331-000 CLAMP |
09403-08331-000 |
US $1.60 |
||
|
26
|
26
09136-06141-000 SCREW(6X25) |
09136-06141-000 |
from US $0.86 |
||
|
27
|
27
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
28
|
28
09403-08331-000 CLAMP |
09403-08331-000 |
US $1.60 |
||
|
29
|
29
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
30
|
30
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
31
|
31
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
32
|
32
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
